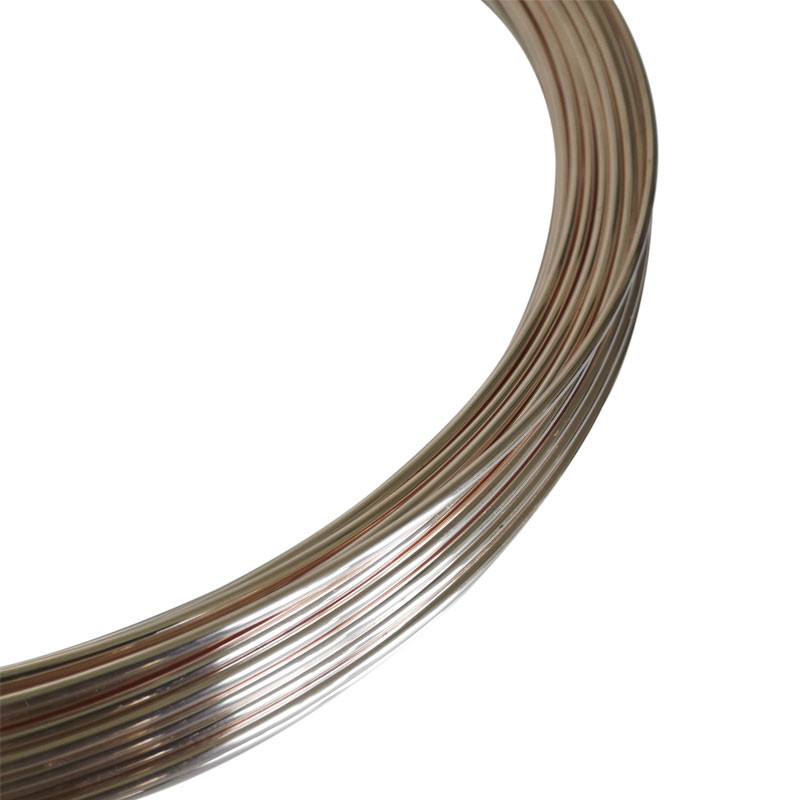

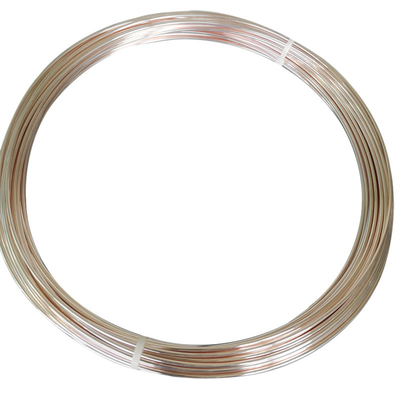

BAg21CuZnMnSn GB/T 10046 Silver Based ISO 17672 Brazing wire AWS A5.8

Large Image : BAg21CuZnMnSn GB/T 10046 Silver Based ISO 17672 Brazing wire AWS A5.8 Get Best Price

Product Details:

Place of Origin:	China(Shanghai)
Brand Name:	OHMALLOY
Certification:	ISO, ROHS
Model Number:	Ag72Cu28

Payment & Shipping Terms:

Minimum Order Quantity:	300kg
Price:	negotiable
Packaging Details:	DIN 60 or 80 or 100
Delivery Time:	7-20 days
Payment Terms:	L/C, T/T,
Supply Ability:	50000kg/month

Contact Now

Detailed Product Description

Material:	Ag72Cu28	Diameter:	1mm, 2mm, 3mm
Status:	Bright, Annealed	Applicatiaerospaceon:	Welding
HS Code:	75052200	Package:	1kg/spool
Highlight:	GB/T 10046 Brazing wire , Silver Based Brazing wire , ISO 17672 Brazing wire

BAg21CuZnMnSn GB/T 10046 Silver Based ISO 17672 Brazing wire AWS A5.8

Silver brazing materials have excellent processability, good wetting and filling properties, low melting point, corrosion resistance, easy conductivity, high mechanical strength, and good plasticity. They are suitable for various brazing methods and can be used to brazing most black and non-ferrous metals such as stainless steel, carbon steel, hard alloys, copper, and copper alloys. Silver brazing materials can be further added to form multi-element alloy brazing materials by adding indium, tin, nickel, and other elements to meet various special performance requirements. Most brazing materials need to be used in conjunction with brazing agents to obtain stable and reliable joints during brazing.

Grade	Ag	Cu	Zn	Sn	Mn	In	Ni
BAg21CuZnMnSn	20-22	35-39	Bal	1.5-2.5	6~8
BAg26CuZnInSn	25.5~27	Bal	32~36	0.9~1.5		2.2~2.8
BAg30CuZnSnNi	29~31	34~36	Bal	1.8~2.5			0.8~1.2
BAg34CuZnSn	33~35	35~37	Bal	2~3
BAg37CuZnSn	36~38	30~32	Bal	0.8~1.5
BAg38CuZnSn	37~39	31~33	26~30	1.5~2.5
BAg40CuZnNi	39~41	29~31	26~30	1.5~2.5
BAg45CuZn	44~46	29~31	23~27
BAg50CuZn	49~51	33~35	14~18
BAg55ZnCuSn	54~56	20~22	20~24	1.5~2.5
BAg30CuZnSnNi	29~31	34~36	Bal	1.8~2.5			0.8~1.2
BAg56CuZnSn	55~57	21~23	15~19	4.5~5.5
