Guaranteed Quality 0Cr25Al5 FeCrAl Alloy Max Working Temp. 700 Degree Celsius
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

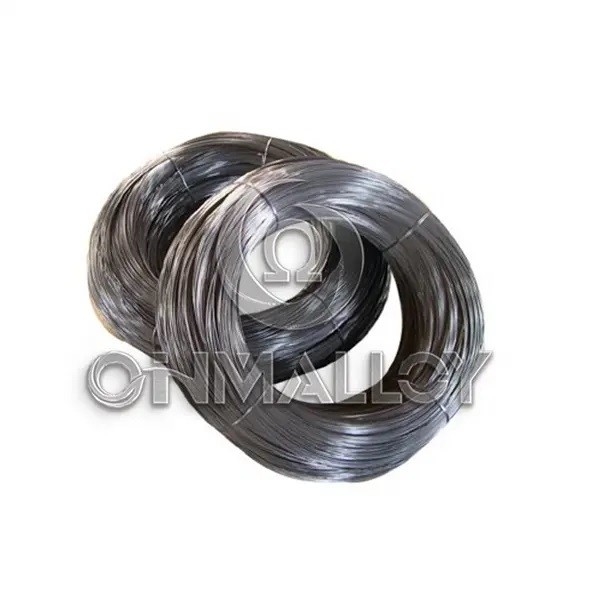

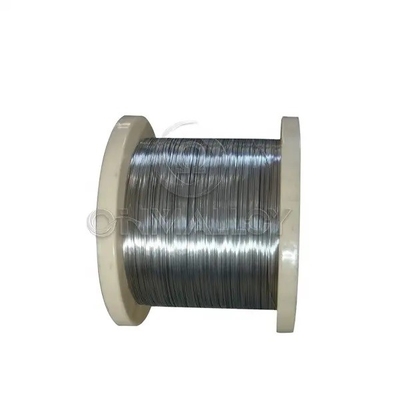

| Name: | Bright 0Cr25Al5 Aluchrom-O Wire Home Appliances Heating Wire Oven Heater | Size: | 0.5mm 0.7mm 0.9mm |
|---|---|---|---|
| Application: | Home Appliances Heating Wire | Surface: | Totally Bright And Clean |
| Guarantee: | 3 Years | Max Working Temp.: | 700 Degree Celsius |
| Highlight: | Guaranteed Quality FeCrAl Alloy,0Cr25Al5 FeCrAl Alloy |
||
Top Sale Guaranteed Quality 0Cr25Al5 FeCrAl Alloy
OhmAlloy142B is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.
Typical applications for OhmAlloy142B are used in electric ceramic cooktop,industrial furnace,heaters.
1) Normal Composition(%)
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.06 | 0.025 | 0.025 | 0.70 | Max 0.60 | 23.0~26.0 | Max 0.60 | 4.5~6.5 | Bal. | - |
2)Typical Mechanical Properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 500 | 700 | 23 |
3)Typical Physical Properties
| Density (g/cm3) | 7.10 |
| Electrical resistivity at 20ºC(Ωmm2/m) | 1.42 |
| Conductivity coefficient at 20ºC (WmK) | 13 |
| 4)Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/ºC |
| 20 ºC- 1000ºC | 15 |
| 5)Specific heat capacity | |
| Temperature | 20ºC |
| J/gK | 0.46 |
| Melting point (ºC) | 1500 |
| Max continuous operating temperature in air (ºC) | 1250 |
| Magnetic properties | magnetic |
