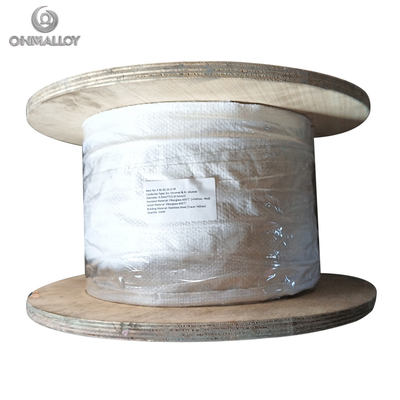

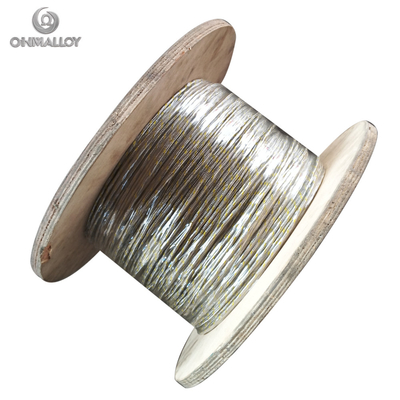

Type J (Fe CuNi45) Thermocouple Wire 0.193mm Diameter Compliant for High-Temperature Sensing

Large Image : Type J (Fe CuNi45) Thermocouple Wire 0.193mm Diameter Compliant for High-Temperature Sensing Get Best Price

Product Details:

Place of Origin:	China(Shanghai)
Brand Name:	OHMALLOY
Certification:	ISO9001-2008
Model Number:	Type J

Payment & Shipping Terms:

Minimum Order Quantity:	10KG
Price:	negotiable
Packaging Details:	spool
Delivery Time:	10-15 working days
Payment Terms:	L/C, T/T,
Supply Ability:	10tons/month

Contact Now

Detailed Product Description

Color:	Conforms To ANSI, IEC, JIS	Standard:	ANSI96.1 Or IEC 584-2
Size:	0.35mm*19	Conductor Material:	Constantan
Application:	Heating

Type J (Fe CuNi45) Thermocouple Wire 0.193mm Diameter Compliant for High-Temperature Sensing

TYPE J (Iron vs Constantan) is used in vacuum, oxidizing, inert or reducing atmospheres. Iron element oxidizes rapidly at temperatures exceeding 538'C, and therefore heavier gauge wire is recommended for longer life at these temperatures

1. Chemical Composition

Material	Chemical composition (%)
Material	Ni	Cu	Si	Iron	Al
JP(Iron)				100
JN(Constantan)	45	55

2. Physical properties and Mechanical properties

Material

Density

(g/cm3)

Melting point (℃)

Tensile Strength (Mpa)

Volume resistivity

(μΩ.cm)

Elongation rate (%)

JP(Iron)

12.0(20℃)

JN(Constantan)

49.0(20℃)

3. EMF Value range at different temperature

Material	EMF value (μV)
	100℃		200℃		300℃		400℃		500℃		600℃
JP-JN	5187~5351		10696~10862		16244~16410		21760~21936		27281~27505		32962~33242
EMF value Vs Pt (μV)
700℃		750℃		760℃		800℃		900℃		1000℃
38958~39306		42089~42473		42725~43113
