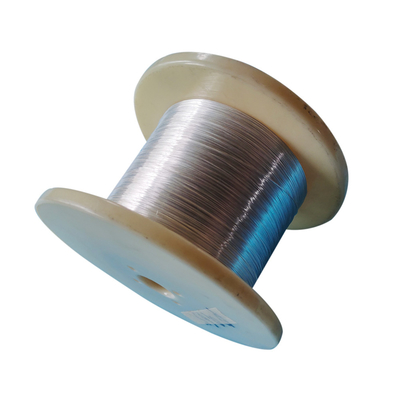

0.04mm Ultra-Fine Pure Nickel Wire, Nickel 200 (UNS N02200 / W.Nr 2.4060)
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Nickel 200 201 Ring | Type: | N4(Nickel201)/N6(Nickel200) |
|---|---|---|---|
| Purity: | >99.6% | Thickness: | 0.02-8mm |
| Width: | 0.1-250mm(>300mm Need Customized) | State: | Hard/1/2Hard/ 1/4Hard/ Soft |
0.04mm Ultra-Fine Pure Nickel Wire, Nickel 200 (UNS N02200 / W.Nr 2.4060)
This product is a premium-grade ultra-fine pure nickel wire, corresponding to the globally recognized Nickel 200 alloy (also commercially known as N6). Conforming to international standards including ASTM F290 (UNS N02200) and DIN 17740 (W.Nr 2.4060), this wire represents the pinnacle of precision drawing technology. With an extremely fine diameter of just 0.04mm, it is engineered for the most demanding micro-scale electronic and medical applications where precision and reliability are paramount.
Key Features & Advantages
- Extreme Fineness & High Precision: A remarkably consistent diameter of 0.04mm (±0.002mm), enabling its use in highly miniaturized components.
Technical Specifications
- Material: Pure Nickel 200 (N6)
- International Designations: UNS N02200 (USA), W.Nr 2.4060 (Germany/DIN).
- Diameter: 0.04 mm (40 Microns)
- Temper: Annealed (Soft) - Optimized for maximum flexibility and ease of winding.
- Estimated Properties (Annealed Condition):
- Tensile Strength: 400 - 550 MPa
- Elongation: ≥ 35%
- Resistivity: ~0.096 µΩ·m
- Standard Packaging: Typically supplied on precision spools (e.g., 100g, 500g per spool).
Primary Applications
- Micro-Electronic Components: Used in the windings of miniature inductors, transformers, and sensors.
- Medical Devices: Ideal for extremely fine guide wires and other critical micro-components.
- Miniature Sensors & Probes: Serving as the core conductive element.
| Product Name | Nickel 200 N6 UNS N02200 W.Nr 2.406 Pure Nickel Wire 0.04mm |
| Usage | Nickel 200 is made by advanced vacuum melting process.and by forging,rolling,annealing and drawing. It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp. |
| Product Features | Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots. |
| Material | Pure Nickel |
| Size | 0.018mm-10mm |
| Other Name | N6, N4, Pure Nickel, Nickel 200 |
| Status | Bright |
| Package Details | 1) Coil (plastic spool) + compressed ply-wooden case + pallet 2) Coil (plastic spool) + carton + pallet |
Specification
| Wire | 0.018mm-10mm |
| Strip | 0.5*5.0mm-5.0*250mm |
| Ribbon | 0.05*0.2mm-2.0*6.0mm |
| Bar | 10-100mm |
Chemical Content(%)
| Grade | C | P | S | Mn | Si | Ni+Co | Cu | Fe |
| Nickel 200 | <0.15 | <0.015 | <0.01 | <0.35 | <0.35 | >99.0 | <0.25 | <0.40 |
Physical Properties
| Grade | Nickel 200 |
| Density (g/cm3) | 8.89 |
| Electrical Resistivity At 20ºC(Ωmm2/m) | 0.064 |
| Conductivity Coefficient At 20ºC (WmK) | 79.3 |
| Melting Point (ºC) | 1435-1446 |
| Magnetic Properties | Non-magnetic |
