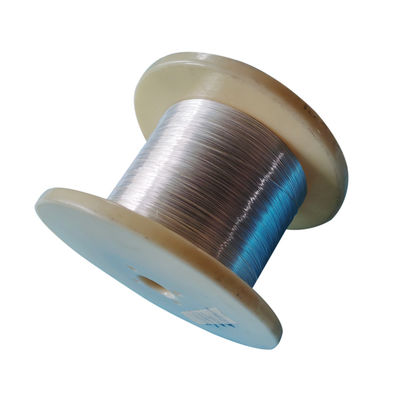

Ohmalloy CuNi44 (Cuprothal 294/MWS-294) Solid Heating Wire 0.4mm/0.67mm (8 AWG) Bare Resistivity 0.49 m 420MPa Ultimate

Ohmalloy CuNi44 (Cuprothal 294/MWS-294) Solid Heating Wire 0.4mm/0.67mm (8 AWG) Bare Resistivity 0.49 m 420MPa Ultimate
Ohmalloy CuNi44 (Cuprothal 294/MWS-294) Solid Heating Wire 0.4mm/0.67mm (8 AWG) Bare Resistivity 0.49 m 420MPa Ultimate

Large Image :  Ohmalloy CuNi44 (Cuprothal 294/MWS-294) Solid Heating Wire 0.4mm/0.67mm (8 AWG) Bare Resistivity 0.49 m 420MPa Ultimate Get Best Price

Product Details:
Place of Origin: China
Brand Name: OHMALLOY
Certification: ISO9001:2015
Model Number: SP-CuNi44
Payment & Shipping Terms:
Minimum Order Quantity: 5KG
Packaging Details: Spool+paper case + wooden case/plastic packing+papre case+ wooden box outside(or customized)
Delivery Time: 3-18 working days after payment confirmed
Payment Terms: L/C,T/T,,Paypal
Supply Ability: 30000 KG per month
Detailed Product Description
Name: CuNi6 CuNi8 CuNi10 CuNi14 Material Type: CuNi44Mn1(NC050)
Resistivity: 0.49(at 20℃ (Ωmm2/m)) Magnetic Properties: Non-magnetic
Density (g/cm3): 8.9 Conductivity Coefficient At 20℃: 23WmK
Supply State: Wire /Strip/ Rod/foil
Highlight:

CuNi44 heating wire 0.4mm

,

Cuprothal 294 wire 420MPa

,

MWS-294 bare resistivity 0.49

Ohmalloy CuNi44 (Cuprothal 294/MWS-294) Solid Heating Wire
Specifications: 0.4mm/0.67mm (8 AWG) Bare Resistivity 0.49 mΩ·mm²/m, 420MPa Ultimate Tensile Strength
Common Names: CuNi44, Cuprothal49, Alloy 294, Cuprothal 294, Alloy 49, CuNi 102, Cu-Ni 44, Konstantan, Constantan
OhmAlloy049 is a copper-nickel alloy (Cu56Ni44 composition) characterized by high electrical resistance, excellent ductility, and superior corrosion resistance. This alloy is suitable for continuous operation at temperatures up to 400°C.
Typical Applications:
  • Temperature-stable potentiometers
  • Industrial rheostats
  • Electric motor starter resistances
Ohmalloy CuNi44 (Cuprothal 294/MWS-294) Solid Heating Wire 0.4mm/0.67mm (8 AWG) Bare Resistivity 0.49 m 420MPa Ultimate 0 Ohmalloy CuNi44 (Cuprothal 294/MWS-294) Solid Heating Wire 0.4mm/0.67mm (8 AWG) Bare Resistivity 0.49 m 420MPa Ultimate 1
Copper Nickel Alloy Production Standards (GB/T1234-95)
Performance Brand NC020 NC025 NC030 NC035 NC040 NC050 CuNi44
Main Chemical Content % - Ni 14.2 19 23 30 34 44 44
Mn 0.3 0.5 0.5 1.0 1.0 1.0 1.0
Cu Bal. Bal. Bal. Bal. Bal. Bal. Bal.
Element Max Working Temperature ℃ 300 300 300 350 350 400 400
Density g/cm³ 8.9 8.9 8.9 8.9 8.9 8.9 8.9
Resistivity Ωmm²/m, at 20℃ 0.20±5% 0.25±5% 0.30±5% 0.35±5% 0.40±5% 0.49±5% 0.49±5%
Temperature factor of resistivity 10⁻⁵/℃(200-600℃) <38 <25 <16 <10 -0 <-6 <-6
Melting Point ℃ 1115 1135 1150 1170 1180 1280 1280
Tensile Strength MPa ≥310 ≥340 ≥350 ≥400 ≥400 ≥420 ≥420
Elongation % (>1.0) ≥25 ≥25 ≥25 ≥25 ≥25 ≥25 ≥25
Corrosion Resistance Performance
Alloys Working In atmosphere at 20℃ Working at max temperature 200℃
Air and oxygen contain gases good good
gases with Nitrogen good good
gases with sulfur oxidability good good
gases with sulfur reductibility good bad
carburization bad good
Available Product Styles
Alloys Name Type Dimension
OhmAlloy049W Wire D=0.06mm~8mm
OhmAlloy049R Ribbon W=0.4~40, T=0.05~2.9mm
OhmAlloy049S Strip W=8~200mm, T=0.1~3.0
OhmAlloy049F Foil W=6~120mm, T=0.005~0.1
OhmAlloy049B Bar Dia=8~100mm, L=50~1000
The addition of nickel to pure copper significantly enhances strength, corrosion resistance, hardness, electrical resistance, and thermoelectric properties while reducing the temperature coefficient of resistivity. Compared with other copper alloys, cupronickel offers superior mechanical and physical properties including excellent ductility, high hardness, attractive appearance, corrosion resistance, and deep drawing performance.
Industrial Applications:
  • Shipbuilding industry corrosion-resistant structural components
  • Petroleum, chemical, and construction sectors
  • Power generation and electrical systems
  • Precision instruments and medical equipment
  • Musical instruments and decorative crafts
  • Resistance elements and thermocouple materials
  • Compensation wires and electrical components
