0.51mm X 2 Type K Thermocouple Cable Fiberglass Insulation With Stainless Steel Jacket

0.51mm X 2 Type K Thermocouple Cable Fiberglass Insulation With Stainless Steel Jacket
0.51mm X 2 Type K Thermocouple Cable Fiberglass Insulation With Stainless Steel Jacket 0.51mm X 2 Type K Thermocouple Cable Fiberglass Insulation With Stainless Steel Jacket

Large Image :  0.51mm X 2 Type K Thermocouple Cable Fiberglass Insulation With Stainless Steel Jacket Get Best Price

Product Details:
Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO9001-2008
Model Number: K -TW-7274
Payment & Shipping Terms:
Minimum Order Quantity: 100meters
Price: negotiable
Packaging Details: 100m/spool, 500m/roll,1000ft/roll
Delivery Time: 7-15 days
Payment Terms: L/C, T/T,
Supply Ability: 500000 meters/month
Detailed Product Description
Conductor: +Chromel/ -Alumel Conductor Dia: 0.51mmx2
Insulation Material: PVC/FEP/PFA/ Fiberglass/Vitreous Silica Jacket Material: PVC/FEP/PFA/ Fiberglass/Vitreous Silica
Color: ANSI Package: 100m/roll
Standard: ANSI96.1 Or IEC 584-2
High Light:

k type thermocouple cable

,

thermocouple extension wire

Ohmalloy 0.511mm Type K Fiberglass insulation Stainless Steel jacket Thermocouple Extension Cable

Specification:

Product name Thermocouple cable
Conductor Material +Chrome/—Alumel
Insulation material Fiberglass against 600°C
Conductor Dia 0.511 mmx2
Standard ANSI MC 96.1
Insulation Color Red/Yellow
Shielding /
Jacket Stainless steel
Packing 100m/roll
Gross weight 3.6KG/roll
Delivery time 7 working days after payment
Payment T/T or L/C at sight, Paypal
Shipping By DHL, Fedex, Aramex, etc.


Conductor material:

Variety Type
NiCr-NiSi K
NiCr-CuNi E
Fe-CuNi J
Cu-CuNi T
NiCrSi-NiSi N
NiCr-AuFe0.07 NiCr-AuFe0.07


Insulating and sheath material:

insulation PTFE PFA TEF FEP PVC FG silicone kapton Quartz fiber
Max temp(°c) 260 260 200 200 108 400 200 400 800


Normal available condutor size:

Solid type 0.2mm 0.3mm 0.5mm 0.8mm 1.0mm 1.13mm 1.29mm 1.37mm
Stranded type 0.2mm*7 0.3mm*7 0.43mm*7 0.52mm*7 0.67mm*7



Thermocouple compensation cables are thermocouple wires with insulation covers which connect the thermocouple and the measuring equipment, to compensate the error caused by the temperature variation between them.

Now OHMALLOY have all processing matching for braiding, extruding, wrapping, varnishing.... So we can make all cable with all insulation such as PVC, PTFE, Silicone rubber, fiberglass,
The MOQ for fiberglass insulated wire can be any length, even 5 meters is workable.
For the insulation such as PVC, PTFE, we can supply 500meters as MOQ. The cables can help many customers on trial stage and test. Based on the different standard of different country, we can produce according each customers requirement.

The applications of thermocouple compensation cable:
These kind of cables are mainly used in the connection between thermocouple and temperature measure devices, such like power industry, chemical industry, petroleum industry, etc.

Produce Video:
 https://www.youtube.com/watch?v=BqSjyC15Jk4

Products& Package:

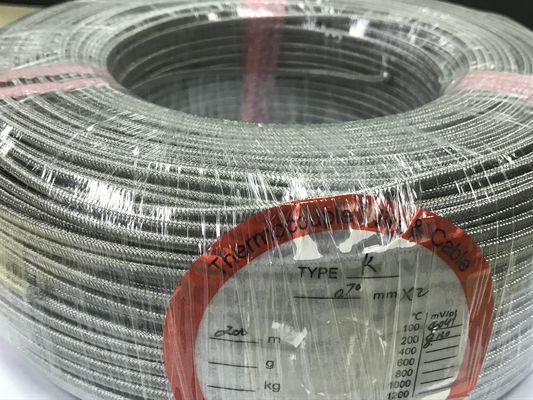

0.51mm X 2 Type K Thermocouple Cable Fiberglass Insulation With Stainless Steel Jacket 0

Payment&Shipping:
0.51mm X 2 Type K Thermocouple Cable Fiberglass Insulation With Stainless Steel Jacket 1
