SGS Standard Platinum Iridium Wire Pt Ir Wire 0.02mm-1mm Diameter

China SGS Standard Platinum Iridium Wire Pt Ir Wire 0.02mm-1mm Diameter supplier
SGS Standard Platinum Iridium Wire Pt Ir Wire 0.02mm-1mm Diameter supplier SGS Standard Platinum Iridium Wire Pt Ir Wire 0.02mm-1mm Diameter supplier

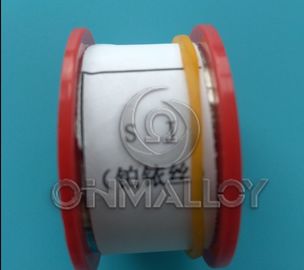

Large Image :  SGS Standard Platinum Iridium Wire Pt Ir Wire 0.02mm-1mm Diameter

Product Details:

Place of Origin: Shanghai,China
Brand Name: Ohmalloy
Certification: ISO,SGS
Model Number: Pt-Ir Wire

Payment & Shipping Terms:

Minimum Order Quantity: 5g
Price: negotiable
Packaging Details: on spool
Delivery Time: 5-8work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1kg/month
Contact Now
Detailed Product Description
Material: Plantinum& Iridium Brand: Ohmalloy
Delivery Time: 7-20Days After Your Deposite Recieved DIA: 0.02mm-1mm
Package: On Spool Min Quantity: 5g

Specifications

1,Factory supply with best price
2,Diameter: from0.02mm-1mm
3,Used in nonstandard thermocouple

Description

The alloy has been used in "nonstandard" thermocouples, electrical contacts and for electrodes in medical research. The alloy is harder and mechanically stronger than Platinum.



This wire features a 90% Platinum and 10% Iridium composition and is widely used in the assembly of microelectrode probes. Iridium, a Platinum group metal, is very dense and hard, imparting added strength to the wire.



Technical Data for Platinum/Iridium wire



Electrical Properties

Electrical resistivity ( µOhmcm ): 25

Temperature coefficient ( K-1 ): 0.0013



Mechanical Properties

Elongation at break ( % ) <25

Hardness - Brinell 130-190

Tensile strength ( MPa )380-620



Physical Properties

Density ( g cm-3 )21.56

Melting point ( C )1800



Thermal Properties

Coefficient of thermal expansion @20-100C ( x10-6 K-1 )8.7

Thermal conductivity @23C ( W m-1 K-1 )31



Typical Analysis : (ppm)

Ag 100, Au 75, Cu 50, Fe 250, Ir 10%, Ni <100, Si <50, Pt balance.



Tolerances

Wire diameter: ±10%

Length:+5% / -1%
