8020 Via 0.03mm - 8mm Nichrome Alloy For Electric Heating Element 1200℃ 2190°F

China 8020 Via 0.03mm - 8mm Nichrome Alloy For Electric Heating Element 1200℃ 2190°F supplier
8020 Via 0.03mm - 8mm Nichrome Alloy For Electric Heating Element 1200℃ 2190°F supplier 8020 Via 0.03mm - 8mm Nichrome Alloy For Electric Heating Element 1200℃ 2190°F supplier 8020 Via 0.03mm - 8mm Nichrome Alloy For Electric Heating Element 1200℃ 2190°F supplier 8020 Via 0.03mm - 8mm Nichrome Alloy For Electric Heating Element 1200℃ 2190°F supplier 8020 Via 0.03mm - 8mm Nichrome Alloy For Electric Heating Element 1200℃ 2190°F supplier

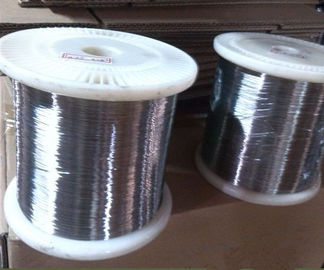

Large Image :  8020 Via 0.03mm - 8mm Nichrome Alloy For Electric Heating Element 1200℃ 2190°F

Product Details:

Place of Origin: China, Shanghai
Brand Name: ohmalloy
Model Number: ohmalloy109

Payment & Shipping Terms:

Minimum Order Quantity: 1 kilogram
Price: US $5-80
Packaging Details: Plastic packing inside, wooden box outside , choose the suitable packing, Alos it can be customized by the clients' demand.
Delivery Time: Shipped in 7 days after payment
Payment Terms: L/C, T/T
Supply Ability: 80000 Kilogram/Kilograms per Week
Contact Now
Detailed Product Description
Alloy: Heating Temperature: 1200℃ 2190°F
Composition: Nickle 80 Chrome 20 Dimension: 0.03mm-8mm
Price: Cheap Origin: Factory
Style: Wire Application: Home Appliance

OhmAlloy109
(Common Name:Ni80Cr20, Nikrothal8 ,MWS-650, NiCrA, Tophet A, HAI-NiCr 80, Chromel A, Alloy A, Alloy 650, N8, Resistohm 80, Stablohm 650, Nichorme V, Nikrothal 80.)

OhmAlloy109 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance, very good form stability after use and very good weldability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.

Typical applications for OhmAlloy109 are electric heating elements in home appliance, industrial furnaces and resistors( wirewound resistors, metal film resistors) such as flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.




Style of supply

Alloys Name Type Dimension
OhmAlloy109W Wire D=0.03mm~8mm
OhmAlloy109R Ribbon W=0.4~40mm T=0.03~2.9mm
OhmAlloy109S Strip W=8~250mm T=0.1~3.0mm
OhmAlloy109F Foil W=6~120mm T=0.003~0.1mm
OhmAlloy109B Bar Dia=8~100mm L=50~1000mm

Temperature Factors Of Electrical Resistivity

20℃ 100℃ 200℃ 300℃ 400℃ 600℃
1 1.006 1.012 1.018 1.025 1.018
700℃ 800℃ 900℃ 1000℃ 1100℃ 1300℃
1.01 1.008 1.01 1.014 1.021 -

Normal composition

C P S Mn Si Cr Ni Al Fe Other
Max
0.03 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -



Typical Mechanical properties(1.0mm)

Yield strength Tensile Strength Elongation
Mpa Mpa %
420 810 30


Typical Physical properties

Density (g/cm3) 8.4
Electrical resistivity at 20℃(Ωmm2/m) 1.09
Conductivity coefficient at 20℃ (WmK) 15


Coefficient of thermal expansion

Temperature Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃ 18


Specific heat capacity


Temperature 20℃
J/gK 0.46




Melting point (℃) 1400
Max continuous operating temperature in air (℃) 1200
Magnetic properties non-magnetic


8020 Via 0.03mm - 8mm Nichrome Alloy For Electric Heating Element 1200℃ 2190°F

FAQ

1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.

2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will we arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.


6.How do you guarantee the quality?
We have QC who are responsible for tracking and monitoring whole production process, and we are willing to accept customer‘s testing.
7. What's our working time?
We will give you reply through email/phone Online chat tool within 24 hours. No matter working day or holidays.
