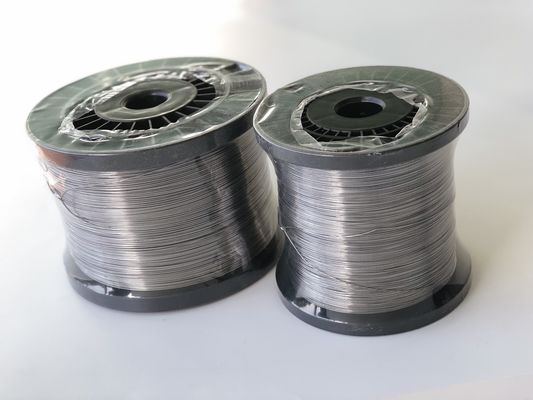

Ni80Cr20 0.07 - 0.1mm High Voltage Ignition Cable With High Resistivity

China Ni80Cr20 0.07 - 0.1mm High Voltage Ignition Cable With  High Resistivity supplier
Ni80Cr20 0.07 - 0.1mm High Voltage Ignition Cable With  High Resistivity supplier Ni80Cr20 0.07 - 0.1mm High Voltage Ignition Cable With  High Resistivity supplier Ni80Cr20 0.07 - 0.1mm High Voltage Ignition Cable With  High Resistivity supplier Ni80Cr20 0.07 - 0.1mm High Voltage Ignition Cable With  High Resistivity supplier Ni80Cr20 0.07 - 0.1mm High Voltage Ignition Cable With  High Resistivity supplier

Large Image :  Ni80Cr20 0.07 - 0.1mm High Voltage Ignition Cable With High Resistivity

Product Details:

Place of Origin: jiangshu
Brand Name: Ohmalloy/OEM
Model Number: SP-EN18004

Payment & Shipping Terms:

Minimum Order Quantity: 5KG
Price: USD 5~15/KG
Packaging Details: Spool,paper wrapped,carton outside
Delivery Time: 8-15 working days after payment
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 5Tons per month
Contact Now
Detailed Product Description
Material: Chrome Nickel Resistivity(μΩ.m): 1.06
Tensile Strength (≥ MPa):: 810 Max Working Temperature (℃):: 1200
Annealing Treatment:: Hydrogen Annealing Application: Ignition Cable Material

Ignition Cable Ni80Cr20 0.07mm to 0.1mm High Voltage Ignition Cable Raw Material



OhmAlloy109 (Ni80Cr20) is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.

Typical applications for OhmAlloy109 (Ni80Cr20) are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.





1.Product Details

Ni80Cr20 0.07 - 0.1mm High Voltage Ignition Cable With  High Resistivity

1)Normal composition%

C P S Mn Si Cr Ni Al Fe Other
Max
0.03 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -



2)Typical Mechanical properties(1.0mm)

Yield strength Tensile Strength Elongation
Mpa Mpa %
420 810 30



3)Typical Physical properties

Density (g/cm3) 8.4
Electrical resistivity at 20℃(Ωmm2/m) 1.09
Conductivity coefficient at 20℃ (WmK) 15





4) Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃ 18





5) Specific heat capacity
Temperature 20℃
J/gK 0.46
Melting point (℃) 1400
Max continuous operating temperature in air (℃) 1200
Magnetic properties non-magnetic



6) Temperature Factors Of Electrical Resistivity
20℃ 100℃ 200℃ 300℃ 400℃ 600℃
1 1.006 1.012 1.018 1.025 1.018
700℃ 800℃ 900℃ 1000℃ 1100℃ 1300℃
1.01 1.008 1.01 1.014 1.021 -



7) Style of supply

Alloys Name Type Dimension
OhmAlloy109W Wire D=0.03mm~8mm
OhmAlloy109R Ribbon W=0.4~40 T=0.03~2.9mm
OhmAlloy109S Strip W=8~250mm T=0.1~3.0
OhmAlloy109F Foil W=6~120mm T=0.003~0.1
OhmAlloy109B Bar Dia=8~100mm L=50~1000







Ni80Cr20 0.07 - 0.1mm High Voltage Ignition Cable With  High Resistivity



2.Production Procedure

Ni80Cr20 0.07 - 0.1mm High Voltage Ignition Cable With  High Resistivity



3.Package Reference

Ni80Cr20 0.07 - 0.1mm High Voltage Ignition Cable With  High Resistivity

4.Products and Services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery;



5.Question and Answer



Q1:How can I contact with your company?

A1:We have multiple communication channels : Tel/Whatsapp/Wechat:+86-15826530281 QQ:3199874404(SPARROW)



Q2:Do you provide free samples?

A2:Yes,we can provide free samples for your testing,but buyer should bear the shipping costs.



Q3:What is your payment terms?

A3:30% in advance,balance after receiving the copy of B/L. T/T,L/C,Western Union,Paypal is OK.



Q4:What is your lead time?

A4:On normal condition,the lead time is 7 days after the payment. Special order or quantity is subject to the negotiation.
