Swg 33 34 35 Nichrome Alloy 80 / 20 Heat Resistant Wire For Chip Resistor

China Swg 33 34 35 Nichrome Alloy 80 / 20 Heat Resistant Wire For Chip Resistor supplier
Swg 33 34 35 Nichrome Alloy 80 / 20 Heat Resistant Wire For Chip Resistor supplier Swg 33 34 35 Nichrome Alloy 80 / 20 Heat Resistant Wire For Chip Resistor supplier Swg 33 34 35 Nichrome Alloy 80 / 20 Heat Resistant Wire For Chip Resistor supplier Swg 33 34 35 Nichrome Alloy 80 / 20 Heat Resistant Wire For Chip Resistor supplier Swg 33 34 35 Nichrome Alloy 80 / 20 Heat Resistant Wire For Chip Resistor supplier

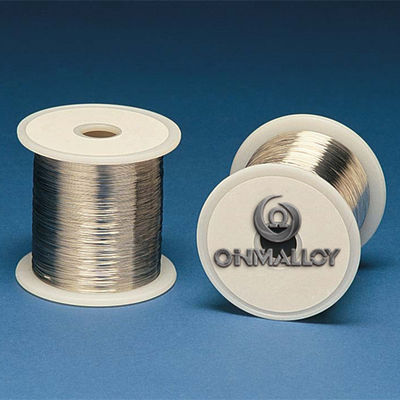

Large Image :  Swg 33 34 35 Nichrome Alloy 80 / 20 Heat Resistant Wire For Chip Resistor

Product Details:

Place of Origin: China
Brand Name: ohmalloy
Certification: SGS,IOS
Model Number: ohmalloy109

Payment & Shipping Terms:

Minimum Order Quantity: 10KG
Price: USD 5-80 per KG
Packaging Details: Plastic packing inside, wooden box outside , choose the suitable packing, Alos it can be customized by the clients' demand.
Delivery Time: Shipped in 7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 80000 kilograms per week
Contact Now
Detailed Product Description
Chemecial Composition: Ni80% Cr20% Dimension: 0.02-10mm
Material: Ni80Cr20 Shape: Wire/Ribbon
Applicaiton: Heating System Resistivity(μΩ.m): 1.09
Ultimate Strength (≥ MPa):: 750 Elongation (≥ %): 20
Working Temperature:: 1200℃ OEM:: Available
Sample:: Free Sample Surface Treatment: Bright,Oxidation
Annealing Treatment:: Hydrogen Annealing Density:: 8.4

OhmAlloy109
(Common Name: Ni80Cr20,Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,Alloy 650,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80.)


OhmAlloy109 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
Typical applications for OhmAlloy109 are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.

Normal composition%

CPSMnSiCrNiAlFeOther
Max
0.030.020.0150.600.75~1.6020.0~23.0Bal.Max 0.50Max 1.0-



Typical Mechanical properties(1.0mm)

Yield strengthTensile StrengthElongation
MpaMpa%
42081030



Typical Physical properties

Density (g/cm3)8.4
Electrical resistivity at 20℃(Ωmm2/m)1.09
Conductivity coefficient at 20℃ (WmK)15



Coefficient of thermal expansion
TemperatureCoefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃18



Specific heat capacity
Temperature20℃
J/gK0.46



Melting point (℃)1400
Max continuous operating temperature in air (℃)1200
Magnetic propertiesnon-magnetic



Temperature Factors Of Electrical Resistivity
20℃100℃200℃300℃400℃600℃
11.0061.0121.0181.0251.018
700℃800℃900℃1000℃1100℃1300℃
1.011.0081.011.0141.021-


Style of supply

Alloys NameTypeDimension
OhmAlloy109WWireD=0.03mm~8mm
OhmAlloy109RRibbonW=0.4~40T=0.03~2.9mm
OhmAlloy109SStripW=8~250mmT=0.1~3.0
OhmAlloy109FFoilW=6~120mmT=0.003~0.1
OhmAlloy109BBarDia=8~100mmL=50~1000
