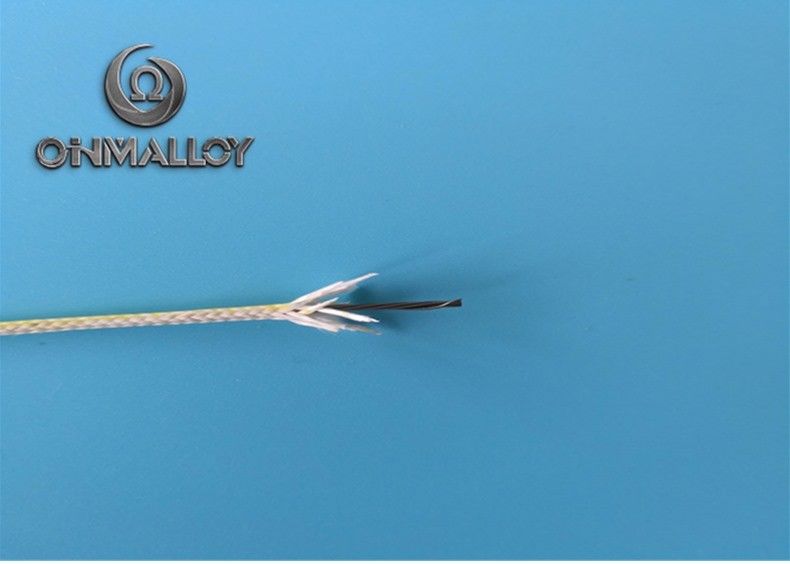

Stranded Heating Thermal Insulated Wire 0.3mmX7 NiCr8020 Wire With Fiberglass Insulation

Stranded Heating Thermal Insulated Wire 0.3mmX7 NiCr8020 Wire With Fiberglass Insulation
Stranded Heating Thermal Insulated Wire 0.3mmX7 NiCr8020 Wire With Fiberglass Insulation

Large Image :  Stranded Heating Thermal Insulated Wire 0.3mmX7 NiCr8020 Wire With Fiberglass Insulation Get Best Price

Product Details:

Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO9001-2008
Model Number: insulated wire

Payment & Shipping Terms:

Minimum Order Quantity: 100,meters
Price: negotiable
Packaging Details: Roll/Spool
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500000 meter per month
Detailed Product Description
Conductor Material: NiCr Type: Insulated
Application: Heating Conductor Type: Stranded
Insulation Material: Fiberglass Color: Customized
Size: 0.3mmx7 Standard: GB/T 1234-2012
High Light:

silicone rubber insulated wire

,

high temperature insulated wire

Stranded heating 0.3mmX7 NiCr8020 wire with fiberglass insulation



Conductor material: NiCr2080

Material Chemical composition (%)
Ni Si Cr Al Fe
NiCr2080 Bal 0.75~1.6 20~23 Max0.5 Max1.0





Heating cable structure



Conductor size 0.3mmx7
Resistance value (ohm/m) 1.09+/-5%
Insulation layer fiberglass
OD of cable 1.8mm





Remarks: The size can be changed if special requirement.

The thickness of insulation also can be adjusted by special requirement. We can do insulation thickness 0.2mm to 2.5mm



Available conductor alloy grade as follows:



NiCr60/15 CuNi44 CuNi23 OCr25Al5 OCr21Al6
Nickel 200 Nickel 201 Nickel 212 Tinned copper wire CuNi6
CuNi10 NiCr35/20 NiCr AA Inconel 600 Inconel 625





Available color: Black, white, green, red, yellow, blue
