Industrial Electric Furnace High Temperature Wire Good Corrosion Resistance

China Industrial Electric Furnace High Temperature Wire Good Corrosion Resistance supplier
Industrial Electric Furnace High Temperature Wire Good Corrosion Resistance supplier Industrial Electric Furnace High Temperature Wire Good Corrosion Resistance supplier Industrial Electric Furnace High Temperature Wire Good Corrosion Resistance supplier Industrial Electric Furnace High Temperature Wire Good Corrosion Resistance supplier Industrial Electric Furnace High Temperature Wire Good Corrosion Resistance supplier

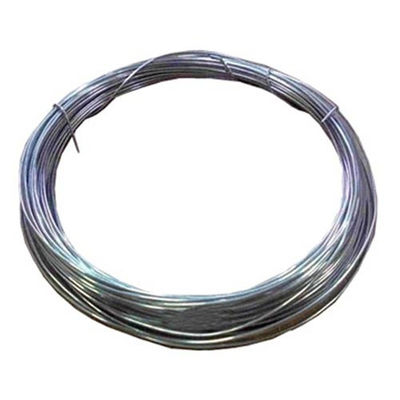

Large Image :  Industrial Electric Furnace High Temperature Wire Good Corrosion Resistance

Product Details:

Place of Origin: China
Brand Name: Ohmalloy
Certification: ISO
Model Number: Ohmalloy 139

Payment & Shipping Terms:

Minimum Order Quantity: 50kgs
Price: USD 2.75/KG
Packaging Details: spool or coil
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000KG/week
Contact Now
Detailed Product Description
Application: Furnace Heating Wire Shape: Wire,ribbon
Material: FeCrAl,Iron-Chromium-Aluminium Alloy Chemical Composition: Fe Cr Al,Ferro Chrome Aluminium
Dimensions: 0.05-12mm Surface: Bright,acid White/oxidized

industrial electric furnace high temperature resistance wire good corrosion resistance





UALLOY139 is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1300°C.



Typical applications for UALLOY139 are used in industrial electric furnace, electric ceramic cooktop.

Normal composition%

C P S Mn Si Cr Ni Al Fe Other
Max
0.04 0.02 0.015 0.50 Max 0.4 20.0-21.0 Max 0.10 4.8-6 Bal. /



Typical Physical properties

Density (g/cm3) 7.10
Electrical resistivity at 20℃(Ωmm2/m) 1.39
Conductivity coefficient at 20℃ (WmK) 13
Tensile Strength(Mpa) 637-784
Elongation Min 16%
Harness(HB) 200-260
Section Variation Shrink Rate 65-75%
Repeatedly Bend Frequency Min 5 times

Industrial Electric Furnace High Temperature Wire Good Corrosion Resistance





Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃ 16





Specific heat capacity
Temperature 20℃
J/gK 0.49



Melting point (℃) 1500
Max continuous operating temperature in air (℃) 1300
Magnetic properties magnetic



Style of supply

Alloys Name Type Dimension
UALLOY139W Wire D=0.03mm~8mm
UALLOY139R Ribbon W=0.4~40 T=0.03~2.9mm
UALLOY139S Strip W=8~250mm T=0.1~3.0
UALLOY139F Foil W=6~120mm T=0.003~0.1
UALLOY139B Bar Dia=8~100mm L=50~1000
