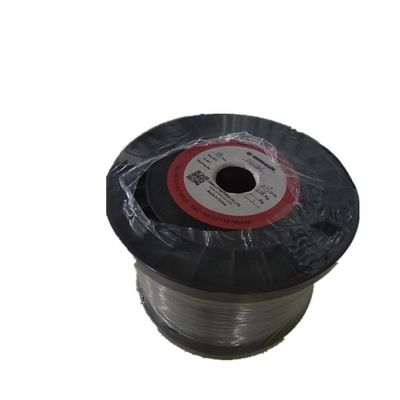

SWG 26 28 30 FeCrAl Alloy 0Cr25Al5 Wire For Industrial Infrared Dryers

SWG 26 28 30 FeCrAl Alloy 0Cr25Al5 Wire For Industrial Infrared Dryers
SWG 26 28 30 FeCrAl Alloy 0Cr25Al5 Wire For Industrial Infrared Dryers SWG 26 28 30 FeCrAl Alloy 0Cr25Al5 Wire For Industrial Infrared Dryers SWG 26 28 30 FeCrAl Alloy 0Cr25Al5 Wire For Industrial Infrared Dryers SWG 26 28 30 FeCrAl Alloy 0Cr25Al5 Wire For Industrial Infrared Dryers SWG 26 28 30 FeCrAl Alloy 0Cr25Al5 Wire For Industrial Infrared Dryers

Large Image :  SWG 26 28 30 FeCrAl Alloy 0Cr25Al5 Wire For Industrial Infrared Dryers Get Best Price

Product Details:
Place of Origin: China
Brand Name: Ohmalloy
Certification: CE
Model Number: Ohmalloy142
Detailed Product Description
Application: Heating,Industry,furnace Heating Wire Shape: Wire
Material: FeCrAl Chemical Composition: Fe Cr Al
Dimensions: 0.05-12mm Surface: Bright,acid White/oxidized
High Light:

heating wire

,

high temp alloys

SWG 26 28 30 0Cr25Al5 wire FeCrAl25/5

OhmAlloy142B:

Common Name: 0Cr25Al5, Aluchrom, OhmAlloy142B is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.



Typical applications for OhmAlloy142B are used in electric ceramic cooktop, industrial furnace, heaters.



Normal composition%

C P S Mn Si Cr Ni Al Fe Other
Max
0.06 0.025 0.025 0.70 Max 0.60 23.0~26.0 Max 0.60 4.5~6.5 Bal. -



Typical Mechanical properties(1.0mm)

Yield strength Tensile Strength Elongation
Mpa Mpa %
500 700 23



Typical Physical properties

Density (g/cm3) 7.10
Electrical resistivity at 20℃(Ωmm2/m) 1.42
Conductivity coefficient at 20℃ (WmK) 13



Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃ 15



Specific heat capacity
Temperature 20℃
J/gK 0.46



Melting point (℃) 1500
Max continuous operating temperature in air (℃) 1250
Magnetic properties non-magnetic



Temperature Factor of Electrical Resistivity

20℃ 100℃ 200℃ 300℃ 400℃ 500℃ 700℃ 800℃ 900℃ 1000℃ 1100℃ 1200℃ 1300℃
1 1.002 1.005 1.008 1.013 1.021 1.038 1.040 1.042 1.044 1.046 1.047



Style of supply

Alloys Name Type Dimension
OhmAlloy142BW Wire D=0.03mm~8mm
OhmAlloy142BR Ribbon W=0.4~40 T=0.03~2.9mm
OhmAlloy142BS Strip W=8~250mm T=0.1~3.0
OhmAlloy142BF Foil W=6~120mm T=0.003~0.1
OhmAlloy142BB Bar Dia=8~100mm L=50~1000


SWG 26 28 30 FeCrAl Alloy 0Cr25Al5 Wire For Industrial Infrared Dryers 0
