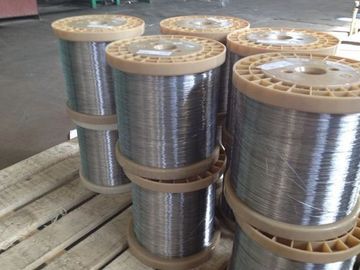

Bright Oxidation Surface Fecral Resistance Wire OHMPM145 Good Form Stability

Bright Oxidation Surface Fecral Resistance Wire OHMPM145 Good Form Stability
Bright Oxidation Surface Fecral Resistance Wire OHMPM145 Good Form Stability Bright Oxidation Surface Fecral Resistance Wire OHMPM145 Good Form Stability Bright Oxidation Surface Fecral Resistance Wire OHMPM145 Good Form Stability Bright Oxidation Surface Fecral Resistance Wire OHMPM145 Good Form Stability Bright Oxidation Surface Fecral Resistance Wire OHMPM145 Good Form Stability

Large Image :  Bright Oxidation Surface Fecral Resistance Wire OHMPM145 Good Form Stability Get Best Price

Product Details:
Place of Origin: China
Brand Name: Ohmalloy
Certification: ISO
Model Number: OHMPM145
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Packaging Details: spool or coil
Delivery Time: 35 working days
Payment Terms: L/C, T/T,
Supply Ability: 1000kg/month
Detailed Product Description
Application: Heating,furnace Heating Wire Shape: Wire
Material: FeCrAl,Iron-Chromium-Aluminium Alloy Chemical Composition: Ferro Chrome Aluminium
Dimensions: 0.05-12mm Surface: Bright,acid White/oxidized
Standard: ASTM,DIN,GB Etc Melting Point: 1450℃
Feature: Good Form Stability,High Corrosion Resistance,high Efficiency Condition: Soft,acid Wach
Resistivity: 1.45 Tensile Strength: 650-800
Product Name: Resistance Wire Size: 0.010-12mm,as Your Required
Surface Treatment: Bright Oxidation
High Light:

heating wire

,

high temp alloys

OHMPM145 fecral resistance wire /instead of APM alloy with comparable performance and favorable price for heating



OHMPM145 OHMPM145 can be used instead of APM, with comparable performance and favorable price.

(Common name: Kanthal APM)

Ohmalloy Material Co., Ltd. has long been committed to research and development of electrothermal alloy products with good oxidation resistance and high temperature resistance. OHMPM145 alloy is a new product developed after HRE alloy which has been widely used in high temperature electrothermal alloy materials in recent years. Compared with HRE, its purity and oxidation resistance is further improved and optimized. With special rare earth elements and unique metallurgical manufacturing process, OHMPM145 has been recognized by customers in the field of high temperature heat-resistant fibers around the world. It has been successfully applied in ceramic sintering, diffusion furnace, high power density and high temperature industrial kiln.

Grade and Chemical Composition

Grade Chemical composition%
C Si Cr Al Fe
OHMPM145 ≤0.04 ≤0.4 20-23 5.8 Bal.

◎Specification

Type: Dia(mm) Thickness(mm) Width(mm)
Round wire: φ0.15-8.0 - -
Flat wire: - 0.1-0.4 0.5-4.5
Strip: - 0.5-2.5 5-48


Performance and Application

Grade OHMPM145
Max.operating temperature 1425℃
Tensile Strength (N/mm2) 650-800
Elongation% >14
Resistivity at 20℃ 1.45
Application High Temperature Ceramic Firing Furnace/High Temperature Heat Treatment Furnace/High Temperature Diffusion Furnace in Electronic Industry



Average linear expansion coefficient



Temperature℃ 20-250 20-500 20-750 20-1000 20-1200 20-1400
Thermal expansion coefficient×10-6/k 11 12 14 15 - -




Thermal Conductivity



                            50℃     600℃   800℃  1000℃  1200℃  1400℃

Wm-1k-1               11          20         22          26      27            35



Resistance Temperature Coefficient

Temperature() 700   900   1100   1200   1300

Ct                        1.02  1.03  1.04    1.04    1.04
