Silicone Rubber Thermocouple Cable Type J Extension Cable Class I Accuracy ANSI

China Silicone Rubber Thermocouple Cable Type J Extension Cable Class I Accuracy ANSI supplier
Silicone Rubber Thermocouple Cable Type J Extension Cable Class I Accuracy ANSI supplier Silicone Rubber Thermocouple Cable Type J Extension Cable Class I Accuracy ANSI supplier Silicone Rubber Thermocouple Cable Type J Extension Cable Class I Accuracy ANSI supplier Silicone Rubber Thermocouple Cable Type J Extension Cable Class I Accuracy ANSI supplier Silicone Rubber Thermocouple Cable Type J Extension Cable Class I Accuracy ANSI supplier

Large Image :  Silicone Rubber Thermocouple Cable Type J Extension Cable Class I Accuracy ANSI

Product Details:

Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: Rohs
Model Number: SP-J-SR-SR-1.0R

Payment & Shipping Terms:

Minimum Order Quantity: 500 meters
Packaging Details: Coil+ Paper Carton;Plywood spool+ plywood Case
Delivery Time: 3-8 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 50000 meters per month
Contact Now
Detailed Product Description
Name: JX High Quality Silicone Rubber Thermocouple Type J Extension Cable Type: JX
Conductor Material: + Copper -Copper Nickel Conductor Size: 14/0.3mm(1.0mm2)
Insulation Material: Silicone Rubber(High Quality) Accuracy: Class I(0~200 Degree Celsius)
Color Standard: ANSI/JIS/IEC/BS/DIN(Customized)

JX High Quality Silicone Rubber Thermocouple Type J Extension Cable Class I Accuracy ANSI



OHMALLOY cable factory have 30 years in producing the thermocouple extension or compensation cable. We use our own thermocouple conductor to produce all kinds of insulated thermocouple wire and cable, Resistance Temperature Detector (RTD) cables. Working temperature range is -60℃ to +1100℃. According to customer request, we supply professional wire and cable solution.

Now OHMALLOY have all processing matching for braiding, extruding, wrapping, varnishing.... So we can make all cable with all insulation such as PVC, PTFE, Silicone rubber, fiberglass,

The MOQ for fiberglass insulated wire can be any length, even 5meters is ok.

For the insulation such as PVC, TEFLON, we can supply 500meters as MOQ. That can help many customers on trial stage.



JX High Quality Silicone Rubber Thermocouple Type J Extension Cable Class I Accuracy ANSI



Cable Specification

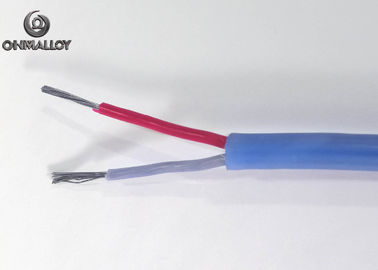

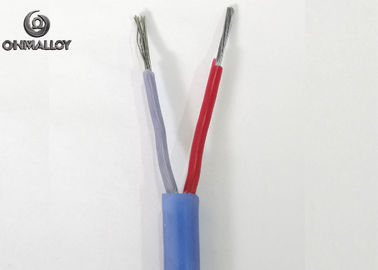

Item Name Type JX Extension Cable  Silicone Rubber Thermocouple Cable Type J Extension Cable Class I Accuracy ANSI
Conductor Material +Iron -Constantan

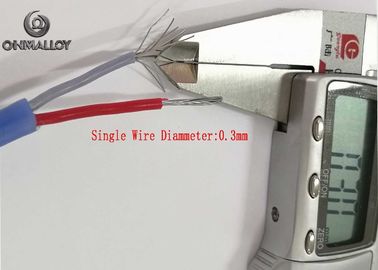

Conductor Dia 14/0.3mm(1.0mm2, ±0.01mm)
Insulation and Thickness Silicone Rubber(200℃) 0.6mm

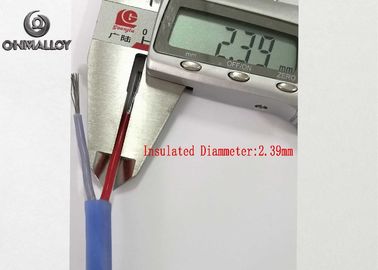

Insulation Diameter 2.3mm(±0.2mm)
Jacket Material Silicone Rubber(20℃) 1.0mm

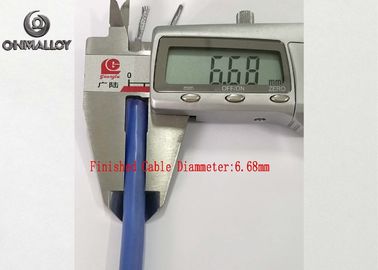

Outer Insulated Diameter 6.68mm(±0.2mm)
Weight 58KG/KM
Color Code DIN-43710 (+Red -Blue Overall:Blue)





Package Reference



Silicone Rubber Thermocouple Cable Type J Extension Cable Class I Accuracy ANSI
