Thermal Spray Nickel Alloy Wire NiAl95/5 Arc Spraying 1.6mm Diameter ISO Certification

China Thermal Spray Nickel Alloy Wire NiAl95/5 Arc Spraying 1.6mm Diameter ISO Certification supplier
Thermal Spray Nickel Alloy Wire NiAl95/5 Arc Spraying 1.6mm Diameter ISO Certification supplier Thermal Spray Nickel Alloy Wire NiAl95/5 Arc Spraying 1.6mm Diameter ISO Certification supplier Thermal Spray Nickel Alloy Wire NiAl95/5 Arc Spraying 1.6mm Diameter ISO Certification supplier Thermal Spray Nickel Alloy Wire NiAl95/5 Arc Spraying 1.6mm Diameter ISO Certification supplier

Large Image :  Thermal Spray Nickel Alloy Wire NiAl95/5 Arc Spraying 1.6mm Diameter ISO Certification

Product Details:

Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO,RoHs
Model Number: NiAl 955

Payment & Shipping Terms:

Minimum Order Quantity: 15kg/spool
Price: negotiable
Packaging Details: DIN300,Plastic film inside, put into carton,packed into pallets or wooden case.
Delivery Time: 7-20 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000KG/MONTH
Contact Now
Detailed Product Description
Material: Ni95% Al5% Diameter: 1.6mm
Package: 15kg/spool Application: Arc Spray System
Spraying Way: Arc Spraying Typical Hardness: HRB75
Spool: DIN300

Nickel Based Alloy Wire NiAl95/5 Thermal Spray Wire Arc Spraying 1.6mm



(Common name:NiAl 95-5, Nickel Aluminum 95/5,N9,Ni95Al5,95/5 Nickel Aluminum,F-80NA Nickel Aluminium 95/5)

This alloy is a nickel aluminium alloy characterized by dense coating,high temperature oxidation resistance, heat shock resistance and scratch resistance.This wire has stable chemical composition, low oxgen and high bonding strength.

Typical applications for NiAl 95/5 are widely used in arc and flange flame spray systems, Coatings to resist heat and prevent scaling of conventional low alloy steels,Bond coats for improving the adhesion of top coatings,Coatings on moulds in the glass industry.

Normal composition%

Al Mn Fe Ni Si Cu C Ti
4.5-5.5 Max 0.3 Max 0.3 Bal. Max 0.5 Max 0.08 Max 0.005 Max 0.3



Typical Physical properties

Density (g/cm3) 8.2
Electrical resistivity at 20ºC(mm2/m) 0.42



Typical Deposit Characteristics

Coating Harness Coating Strength Deposit Rate Deposit Efficiency Machilityineab
23-25 HRC 65-68Mpa 10 lbs /hr/100A 60-70% Good




Specific heat capacity



Melting point (ºC) 1010
Max continuous operating temperature in air (ºC) 800
Magnetic properties non-magnetic


Style of supply
Wire:the common sizes are 1.6mm and 2.0mm,the spool size is DIN 300,and the weight per spool is about 10-15kgs.The other sizes are on the request of our customers.



Packaging & Shipping


Packaging: Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)
For the Thermal spray wires, we pack the wires on spools. Then put spools into cartons, Then put the cartons onto pallet.
Shipping: We cooperation with many logistics company, We can provide express, sea transportation, air transportation, and rail way transportation based on customers' requirement.


Our Services


1) We can provide a free sample for testing.
2) Customized lable, packing, OEM service
3) Mill test certificate will be provided after production, If it is necessary.
4) Good packing methods to keep goods no damage during delivery
5) We are cooperation with many famous forwarder, will try our best to choose the safty, convenience, quick, and cheap mode of transportation for our customers.



We also have other thermal spray wire,welcome your inquiry if you have such requirements.

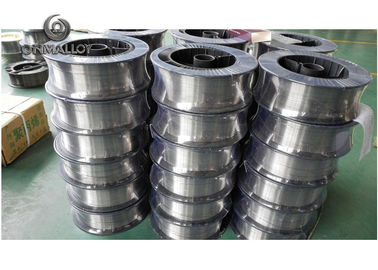

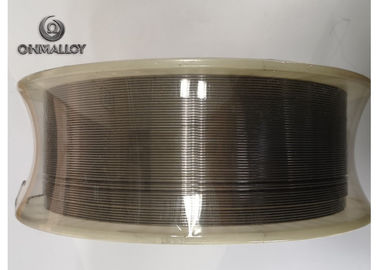

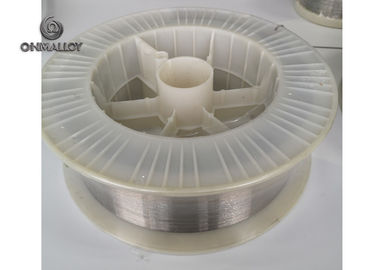

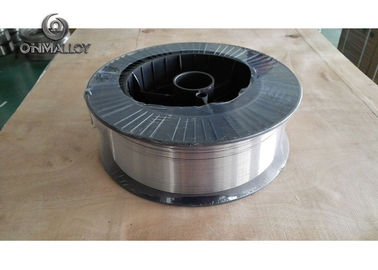

Product&Package:

Thermal Spray Nickel Alloy Wire NiAl95/5 Arc Spraying 1.6mm Diameter ISO Certification

Thermal Spray Nickel Alloy Wire NiAl95/5 Arc Spraying 1.6mm Diameter ISO CertificationThermal Spray Nickel Alloy Wire NiAl95/5 Arc Spraying 1.6mm Diameter ISO CertificationThermal Spray Nickel Alloy Wire NiAl95/5 Arc Spraying 1.6mm Diameter ISO Certification
