| Name: | MI Cable Type K N J S R Thermocouple Cable With Plug | Conductor Material: | Type K N S R T J |
|---|---|---|---|
| Sheath Material: | Stainless Steel/High Temperature Alloy/Inconel | Plug Style: | European Style/American Style/Omega Style/RS Style |
| MI Length: | As Customer Requirement | Tail Handling: | Sealed Or Open(as Customer Requirement) |
| High Light: | k type thermocouple cable,thermocouple bare wire,thermocouple extension wire |
||

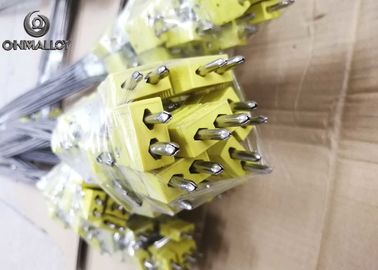

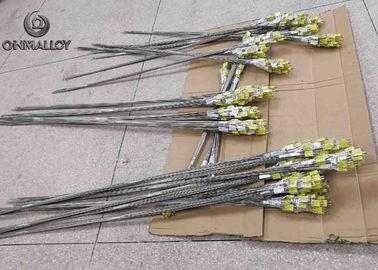

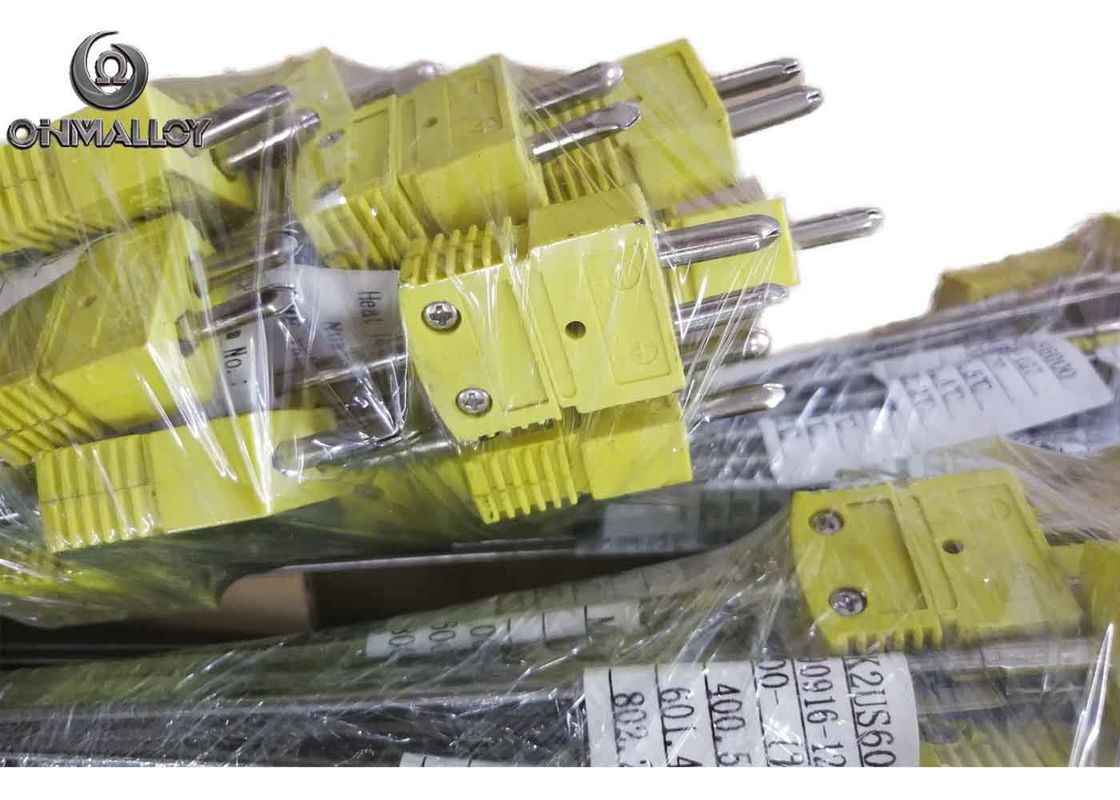

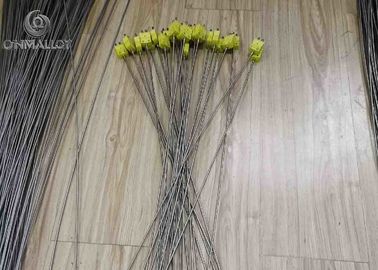

MI Cable Type K N J S R Thermocouple Cable With Plug Class 1 IEC ANSI High Temperature
Mineral insulated cable is manufactured from completely inorganic material. The copper sheath and conductors, insulated with magnesium oxide ensure that the cable is able to withstand the effects of fire and is fully usable afterwards. The m.i. cable system provides a simple solution to many difficult wiring problems and makes for a dependable and permanent installation for virtually all types of electrical circuits. The copper cable sheath meets NEC grounding requirements. Suitable for 300 and 600 volt applications. Pressure tested to 2000 psi.
To produce assemblies, the cable is cut to the desired length, pigtails brazed on and terminated with union type glands with male NPT threads.
OHMALLOY can provide the following type and size of mineral insulated cable.
| Thermocouple grade | K, E, J, T, N, R,S,B, Cu, Pt100 |
| OD of cable | 0.3mm to 12.0mm |
| Sheath material | SS304, SS321, SS316, SS310, Inconel 600, GH3039, copper |
| Core type | 1-core, 2-core, 3-core, 4-core.... |
| EMF tolerance | Class First(I) or Special |
