|Ti:||0.1-0.35%||Name:||Fechral / FeCr23Al5|
|Standard:||GOST 10994- 74||Package:||Spool+ Carton+ Wooden Case Or Pallet|

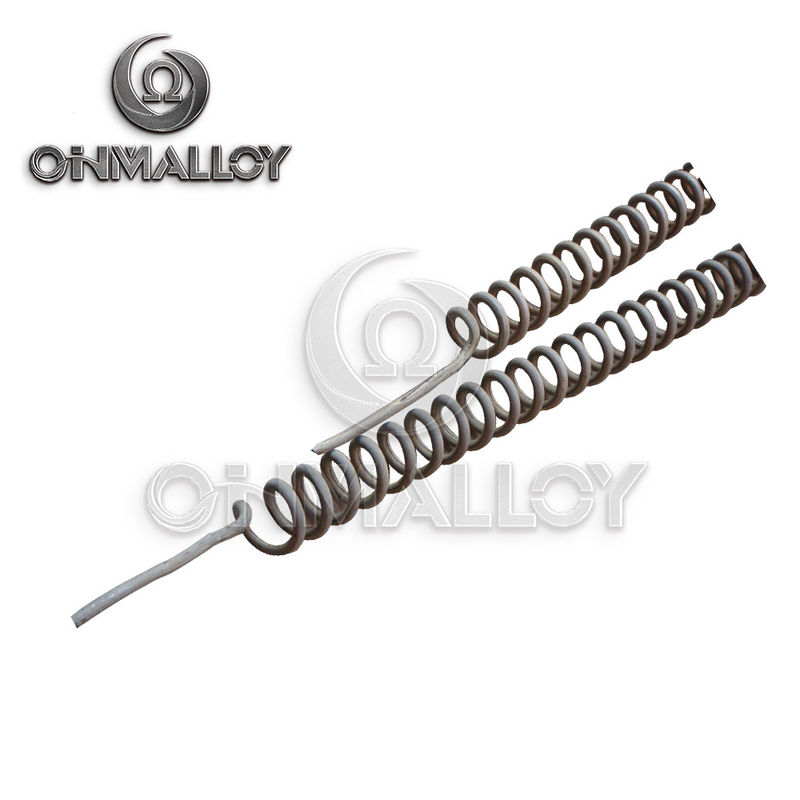

15 - 25mm Diameter FeCrAl Alloy H23YU5T Spring With 5mm Diameter Wire ISO
(Common Name:0Cr23Al5,Kanthal D, Kanthal, Alloy 815, Alchrome DK, Alferon 901, Resistohm 135,Aluchrom S, Stablohm 812)
Fechral can most likely be attributed to metals with a very high electrical resistance, which explains its widespread use in electrical products associated with high temperatures. This article describes in detail the physical properties of the application area, various brands of fechral and types of goods in which metal is used.
Fechral itself is an alloy consisting of elements such as chrome aluminum and iron with a small percentage of nickel of about 0.6 percent. The low content of the latter gives the alloy an undeniable advantage over nichrome making it cheaper. With a melting point of -1500 degrees, the fechral can withstand operating conditions and at 1400 degrees, plus, the resistivity is 1.39 μOhm. With a density of 7.21g / cm3, this alloy can be confidently considered a serious competitor to nichrome.
Fechral has a high degree of resistance, which is a distinctive and main useful feature of this alloy. It is also characterized by heat resistance and is not prone to corrosion. The alloy is hard and works in conjunction with various materials as well as in aggressive environments and atmospheres. The only weak point of fechral is the presence of iron in its composition, which makes the alloy brittle enough, which in turn complicates the processing of metal to obtain the final product.
OhmAlloy135 is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.
Typical applications for OhmAlloy135 are used in home appliances and industrial furnace,and kinds of elements in heaters and dryers.
|0.06||0.025||0.025||0.70||Max 0.6||20.5~23.5||Max 0.60||4.2~5.3||Bal.||-|
|Yield strength||Tensile Strength||Elongation|
|Resistivity at 20℃(мкОм*м)||1.3-1,4|
|Conductivity coefficient at 20℃ (WmK)||13|
Coefficient of thermal expansion
|Temperature||Coefficient of Thermal Expansion x10-6/℃|
|20 ℃- 1000℃||15|
|Specific heat capacity|
|Melting point (℃)||1500|
|Max continuous operating temperature in air (℃)||1250|
Style of supply
