Insulated Nichrome Heating Element With FEP / Fiberglass For Heating Floor Cable

China Insulated Nichrome Heating Element With FEP / Fiberglass For Heating Floor Cable supplier
Insulated Nichrome Heating Element With FEP / Fiberglass For Heating Floor Cable supplier Insulated Nichrome Heating Element With FEP / Fiberglass For Heating Floor Cable supplier

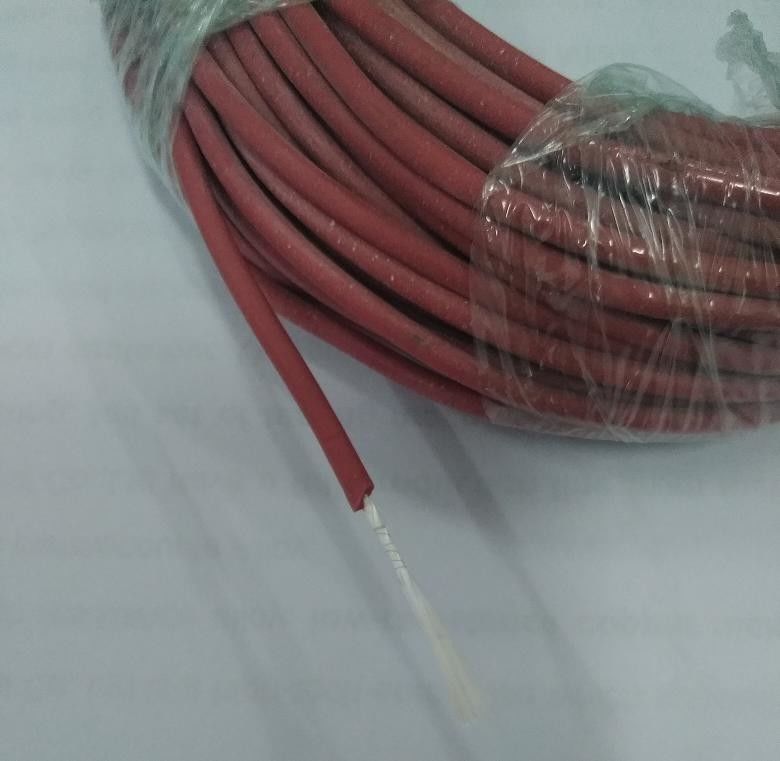

Large Image :  Insulated Nichrome Heating Element With FEP / Fiberglass For Heating Floor Cable

Product Details:

Place of Origin: CHINA
Brand Name: OHMALLOY
Certification: ISO CE ROSH
Model Number: Ni80Cr20

Payment & Shipping Terms:

Minimum Order Quantity: 100meter
Packaging Details: coil
Delivery Time: 3-5workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000m/week
Contact Now
Detailed Product Description
Shape: Wire Application: Heater
Chemical Composition: Nichrome Material: Nichrome
Product Name: Resistance Wire Melting Point: 1380~1400 ℃
Certification: ISO9001,SGS,RoHS

Insulated Nichrome Heating Wire for Heating Floor Cable




Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.

Typical applications for Ni80Cr20 are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.


1. Product Detail

1) Normal Composition(%)

C P S Mn Si Cr Ni Al Fe Other
Max
0.03 0.02 0.015 0.60 0.75-1.60 20.0~23.0 Bal Max 0.5 Max1.0 -



2)Typical Mechanical Properties(1.0mm)

Yield strength Tensile Strength Elongation
Mpa Mpa %
420 810 30



3)Typical Physical Properties

Density (g/cm3) 8.40
Electrical resistivity at 20ºC(Ωmm2/m) 1.09
Conductivity coefficient at 20ºC (WmK) 15



4)Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/ºC
20 ºC- 1000ºC 18



5)Specific heat capacity
Temperature 20ºC
J/gK 0.46
Melting point (ºC) 1400
Max continuous operating temperature in air (ºC) 1200
Magnetic properties non-magnetic



6)Temperature Factor of Electrical Resistivity

20ºC 100ºC 200ºC 300ºC 400ºC 500ºC 700ºC 800ºC 900ºC 1000ºC 1100ºC 1200ºC
1 1.006 1.012 1.018 1.025 1.018 1.01 1.008 1.01 1.014 1.021 -

1

7)Style of supply

Alloys Name Type Dimension
OhmAlloy109W Wire D=0.03mm~8mm
OhmAlloy109R Ribbon W=0.4~40 T=0.03~2.9mm
OhmAlloy109S Strip W=8~250mm T=0.1~3.0
OhmAlloy109F Foil W=6~120mm T=0.003~0.1
OhmAlloy109B Bar Dia=8~100mm L=50~1000
