Varnished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester Imide Double Coating 200 Degree Celsius

China Varnished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester Imide Double Coating 200 Degree Celsius supplier
Varnished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester Imide Double Coating 200 Degree Celsius supplier Varnished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester Imide Double Coating 200 Degree Celsius supplier Varnished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester Imide Double Coating 200 Degree Celsius supplier Varnished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester Imide Double Coating 200 Degree Celsius supplier

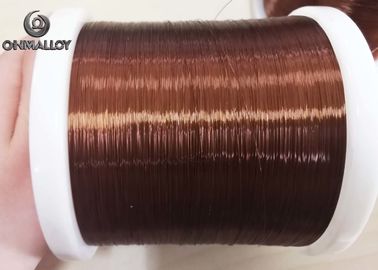

Large Image :  Varnished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester Imide Double Coating 200 Degree Celsius

Product Details:

Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: RoHs
Model Number: SP-EN-2080-200D

Payment & Shipping Terms:

Minimum Order Quantity: 5 KG
Price: USD 38.5-100 per KG
Packaging Details: Spool+Parper carton
Delivery Time: 5-15 working day
Payment Terms: L/C, T/T, Western Union, MoneyGram,paypal
Supply Ability: 200KG per month
Contact Now
Detailed Product Description
Name: Varished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Conductor Material: 0Cr20Ni80(Nikrothal 80/ Resistohm 80)
Coating Material: Double Polyester Imide Coating Max Working Temp.: 200 Degree Celsius
Application: Resistance Wire/ Heating Wire Mini Varnished Diameter: 0.025mm

Varished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester-imide Double Coating 200 Degree Celsius



These enameled resistance wires have been broadly used for standard resistors, automobile parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.

Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.



Varnished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester Imide Double Coating 200 Degree Celsius



Style of supply



Alloys Name Type Dimension
Enameled-W Wire D=0.018mm~3mm
Enameled-R Ribbon W=0.4~24 T=0.01~0.2mm



Dimension of insulation



D

mm

Min thickness of insulation Max OD of Enameled
0.02 0.005 0.009 0.09 0.036
0.022 0.005 0.019 0.032 0.038
0.025 0.006 0.010 0.036 0.042
0.028 0.006 0.010 0.039 0.045
0.030 0.006 0.011 0.042 0.048
0.032 0.006 0.011 0.044 0.050
0.036 0.007 0.012 0.049 0.055
0.040 0.007 0.012 0.053 0.060
0.045 0.008 0.013 0.059 0.066
0.050 0.008 0.014 0.064 0.072
0.056 0.009 0.015 0.071 0.079
0.060 0.009 0.016 0.076 0.084
0.063 0.009 0.016 0.080 0.088
0.071 0.010 0.017 0.089 0.097
0.080 0.011 0.018 0.099 0.108
0.090 0.012 0.019 0.111 0.120
0.100 0.012 0.021 0.122 0.132
0.112 0.012 0.021 0.135 0.146
0.125 0.014 0.023 0.150 0.161
0.140 0.015 0.024 0.166 0.179
0.150 0.016 0.025 0.177 0.191
0.160 0.017 0.028 0.188 0.202
0.180 0.018 0.028 0.210 0.225
0.200 0.019 0.030 0.231 0.248
0.224 0.021 0.032 0.258 0.275
0.250 0.022 0.034 0.285 0.304
0.280 0.024 0.036 0.318 0.338
0.300 0.025 0.037 0.339 0.360
0.315 0.026 0.038 0.356 0.376
0.355 0.027 0.041 0.398 0.420
0.400 0.028 0.043 0.445 0.468
0.450 0.030 0.048 0.498 0.524
0.500 0.031 0.049 0.551 0.578
0.560 0.034 0.052 0.615 0.643
0.600 0.035 0.054 0.657 0.686
0.630 0.038 0.056 0.689 0.718
0.710 0.038 0.059 0.773 0.805
0.00 0.041 0.062 0.869 0.902
0.900 0.043 0.066 0.973 1.010
1.000 0.048 0.070 1.079 1.117
1.120 0.049 0.074 1.205 1.247
1.250 0.053 0.080 1.343 1.387
1.400 0.058 0.085 1.499 1.548
1.500 0.059 0.090 1.605 1.654



Type of Coating Insulation Reference



Insulation-enamelled Name

Thermal Level℃

(working time 2000h)

Code Name GB Code ANSI. TYPE
Polyurethane enamelled wire 130 UEW QA MW75C
Polyester enamelled wire 155 PEW QZ MW5C
Polyester-imide enamelled wire 180 EIW QZY MW30C
Polyester-imide and polyamide-imide double coated enameled wire 200

EIWH

(DFWF)

QZY/XY MW35C
Polyamide-imide enamelled wire 220 AIW QXY MW81C
