Coated Ultra Thin Wire CuNi44 Constantan 0.03mm Enameled 200 Degree Celsius 696 Ohm / Meter

China Coated Ultra Thin Wire CuNi44 Constantan 0.03mm Enameled 200 Degree Celsius 696 Ohm / Meter supplier
Coated Ultra Thin Wire CuNi44 Constantan 0.03mm Enameled 200 Degree Celsius 696 Ohm / Meter supplier Coated Ultra Thin Wire CuNi44 Constantan 0.03mm Enameled 200 Degree Celsius 696 Ohm / Meter supplier Coated Ultra Thin Wire CuNi44 Constantan 0.03mm Enameled 200 Degree Celsius 696 Ohm / Meter supplier

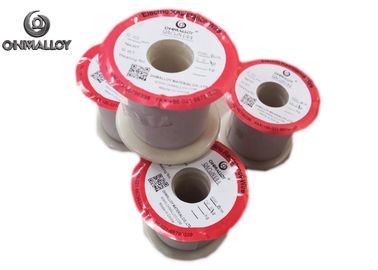

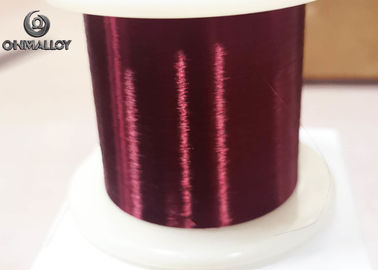

Large Image :  Coated Ultra Thin Wire CuNi44 Constantan 0.03mm Enameled 200 Degree Celsius 696 Ohm / Meter

Product Details:

Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: RoHs
Model Number: SP-EN-CuNi40-0.03-200D

Payment & Shipping Terms:

Minimum Order Quantity: 5 KG
Price: USD 38.5-100 per KG
Packaging Details: Spool+Parper carton
Delivery Time: 5-15 working day
Payment Terms: L/C, T/T, Western Union, MoneyGram,paypal
Supply Ability: 200KG per month
Contact Now
Detailed Product Description
Name: Coated Ultra Thin Wire Constantan 0.03mm Coating Material: Polyester Imide Coating
Application: Resistance Wire/ Heating Wire Mini Varnished Diameter: 0.025mm
Resistance: 696 Ohm/meter Color: As Customer Need

Coated Ultra Thin Wire Constantan 0.03mm Enameled 200 Degree Celsius 696 Ohm/meter



Ohmalloy not only produce the bare resistance wire. It can also provide the resistance wire with insulation as we have 30 years in producing the thermocouple extension cable.



Type of bare alloy wire as follows:

Copper-nickel alloy wire Constantan Wire,CuNi1~CuNi44
Ni-Cr Alloy wire NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr AA
Fe-Cr-Al Alloy wire

Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5,

Cr21Al6Nb,Cr27Al7Mo2,

Cu-Ni-Mn Alloy wire CuMn12Ni2,CuMn12Ni4,Manganin
Any copper alloy and nickel alloy is available



Style of supply



Alloys Name Type Dimension
Enameled-W Wire D=0.018mm~3mm
Enameled-R Ribbon W=0.4~24 T=0.01~0.2mm



Coated Ultra Thin Wire CuNi44 Constantan 0.03mm Enameled 200 Degree Celsius 696 Ohm / Meter



Dimension of insulation



D

mm

Min thickness of insulation Max OD of Enameled
0.02 0.005 0.009 0.09 0.036
0.022 0.005 0.019 0.032 0.038
0.025 0.006 0.010 0.036 0.042
0.028 0.006 0.010 0.039 0.045
0.030 0.006 0.011 0.042 0.048
0.032 0.006 0.011 0.044 0.050
0.036 0.007 0.012 0.049 0.055
0.040 0.007 0.012 0.053 0.060
0.045 0.008 0.013 0.059 0.066
0.050 0.008 0.014 0.064 0.072
0.056 0.009 0.015 0.071 0.079
0.060 0.009 0.016 0.076 0.084
0.063 0.009 0.016 0.080 0.088
0.071 0.010 0.017 0.089 0.097
0.080 0.011 0.018 0.099 0.108
0.090 0.012 0.019 0.111 0.120
0.100 0.012 0.021 0.122 0.132
0.112 0.012 0.021 0.135 0.146
0.125 0.014 0.023 0.150 0.161
0.140 0.015 0.024 0.166 0.179
0.150 0.016 0.025 0.177 0.191
0.160 0.017 0.028 0.188 0.202
0.180 0.018 0.028 0.210 0.225
0.200 0.019 0.030 0.231 0.248
0.224 0.021 0.032 0.258 0.275
0.250 0.022 0.034 0.285 0.304
0.280 0.024 0.036 0.318 0.338
0.300 0.025 0.037 0.339 0.360
0.315 0.026 0.038 0.356 0.376
0.355 0.027 0.041 0.398 0.420
0.400 0.028 0.043 0.445 0.468
0.450 0.030 0.048 0.498 0.524
0.500 0.031 0.049 0.551 0.578
0.560 0.034 0.052 0.615 0.643
0.600 0.035 0.054 0.657 0.686
0.630 0.038 0.056 0.689 0.718
0.710 0.038 0.059 0.773 0.805
0.00 0.041 0.062 0.869 0.902
0.900 0.043 0.066 0.973 1.010
1.000 0.048 0.070 1.079 1.117
1.120 0.049 0.074 1.205 1.247
1.250 0.053 0.080 1.343 1.387
1.400 0.058 0.085 1.499 1.548
1.500 0.059 0.090 1.605 1.654
