Bright 0Cr25Al5 FeCrAl Alloy Home Appliances Heating Wire 3 Years Guarantee

China Bright 0Cr25Al5 FeCrAl Alloy Home Appliances Heating Wire 3 Years Guarantee supplier
Bright 0Cr25Al5 FeCrAl Alloy Home Appliances Heating Wire 3 Years Guarantee supplier Bright 0Cr25Al5 FeCrAl Alloy Home Appliances Heating Wire 3 Years Guarantee supplier Bright 0Cr25Al5 FeCrAl Alloy Home Appliances Heating Wire 3 Years Guarantee supplier

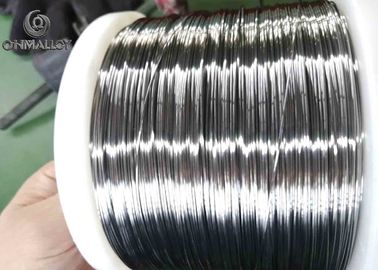

Large Image :  Bright 0Cr25Al5 FeCrAl Alloy Home Appliances Heating Wire 3 Years Guarantee

Product Details:

Place of Origin: China
Brand Name: Ohmalloy/OEM
Certification: CO/SGS
Model Number: SP-Ohmalloy142B

Payment & Shipping Terms:

Minimum Order Quantity: 30KG

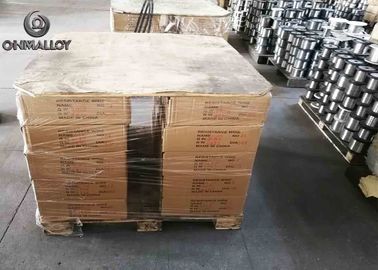

Packaging Details: Spool+paper carton+ wooden pallet
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 tons/Month
Contact Now
Detailed Product Description
Name: Bright 0Cr25Al5 Aluchrom-O Wire Home Appliances Heating Wire Oven Heater Size: 0.5mm 0.7mm 0.9mm
Application: Home Appliances Heating Wire Surface: Totally Bright And Clean
Guarantee: 3 Years Max Working Temp.: 700 Degree Celsius

Bright 0Cr25Al5 Aluchrom-O Wire Home Appliances Heating Wire Oven Heater





OhmAlloy142B is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.



Typical applications for OhmAlloy142B are used in electric ceramic cooktop,industrial furnace,heaters.



1) Normal Composition(%)

C P S Mn Si Cr Ni Al Fe Other
Max
0.06 0.025 0.025 0.70 Max 0.60 23.0~26.0 Max 0.60 4.5~6.5 Bal. -



2)Typical Mechanical Properties(1.0mm)

Yield strength Tensile Strength Elongation
Mpa Mpa %
500 700 23



3)Typical Physical Properties

Density (g/cm3) 7.10
Electrical resistivity at 20ºC(Ωmm2/m) 1.42
Conductivity coefficient at 20ºC (WmK) 13



4)Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/ºC
20 ºC- 1000ºC 15



5)Specific heat capacity
Temperature 20ºC
J/gK 0.46
Melting point (ºC) 1500
Max continuous operating temperature in air (ºC) 1250
Magnetic properties magnetic
