0.51mm * 2 Type K Thermocouple Cable PVC Coated Thin Wire With Solid Conductor

China 0.51mm * 2 Type K Thermocouple Cable PVC Coated Thin Wire With Solid Conductor supplier
0.51mm * 2 Type K Thermocouple Cable PVC Coated Thin Wire With Solid Conductor supplier 0.51mm * 2 Type K Thermocouple Cable PVC Coated Thin Wire With Solid Conductor supplier 0.51mm * 2 Type K Thermocouple Cable PVC Coated Thin Wire With Solid Conductor supplier 0.51mm * 2 Type K Thermocouple Cable PVC Coated Thin Wire With Solid Conductor supplier 0.51mm * 2 Type K Thermocouple Cable PVC Coated Thin Wire With Solid Conductor supplier 0.51mm * 2 Type K Thermocouple Cable PVC Coated Thin Wire With Solid Conductor supplier

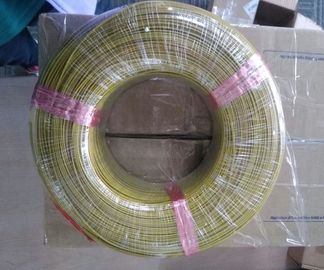

Large Image :  0.51mm * 2 Type K Thermocouple Cable PVC Coated Thin Wire With Solid Conductor

Product Details:

Place of Origin: CHINA
Brand Name: OHMALLOY
Certification: ISO CE ROSH
Model Number: K type

Payment & Shipping Terms:

Minimum Order Quantity: 100meter
Packaging Details: coil
Delivery Time: 3-5workdays
Payment Terms: L/C, T/T
Supply Ability: 10000m/week
Contact Now
Detailed Product Description
Type: Insulated Conductor Material: NiCr-Konstantan
Application: KX Thermocouple Conductor Type: Solid
Insulation Material: Fiberglass Temperature Range: -200~1200
Theory: Temperature Sensor,Thermocouple Sensor Insulation: PVC,PFA,Silicon
Jacket: Fiberglass

TYPE K (CHROMEL vs ALUMEL ) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperature.



1. Product Details
1. Chemical Composition

Material Chemical composition (%)
Ni Cr Si Mn Al
KP(Chromel) 90 10
KN(Alumel) 95   1-2 0.5-1.5 1-1.5

2. Physical Properties and Mechnical Properties


Material



Density(g/cm3)



Melting pointºC)



Tensile Strength(Mpa)



Volume resistivity(μΩ.cm)



Elongation rate (%)

KP(Chromel) 8.5 1427 >490 70.6(20ºC) >10
KN(Alumel) 8.6 1399 >390 29.4(20ºC) >15

3. EMF Value Range at Different Temperature

Material

EMF value Vs Pt(μV)
100ºC 200ºC 300ºC 400ºC 500ºC 600ºC
KP(Chromel) 2816~2896 5938~6018 9298~9378 12729~12821 16156~16266 19532~19676
KN(Alumel) 1218~1262 2140~2180 2849~2893 3600~3644 4403~4463 5271~5331
EMF value Vs Pt(μV)
700ºC 800ºC 900ºC 1000ºC 1100ºC
22845~22999 26064~26246 29223~29411 32313~32525 35336~35548
6167~6247 7080~7160 7959~8059 8807~8907 9617~9737
