8.4 Density Nickel Chromium Alloy Ribbon Cr20ni80 For Bag Sealing Machine

China 8.4 Density Nickel Chromium Alloy Ribbon Cr20ni80 For Bag Sealing Machine supplier
8.4 Density Nickel Chromium Alloy Ribbon Cr20ni80 For Bag Sealing Machine supplier 8.4 Density Nickel Chromium Alloy Ribbon Cr20ni80 For Bag Sealing Machine supplier

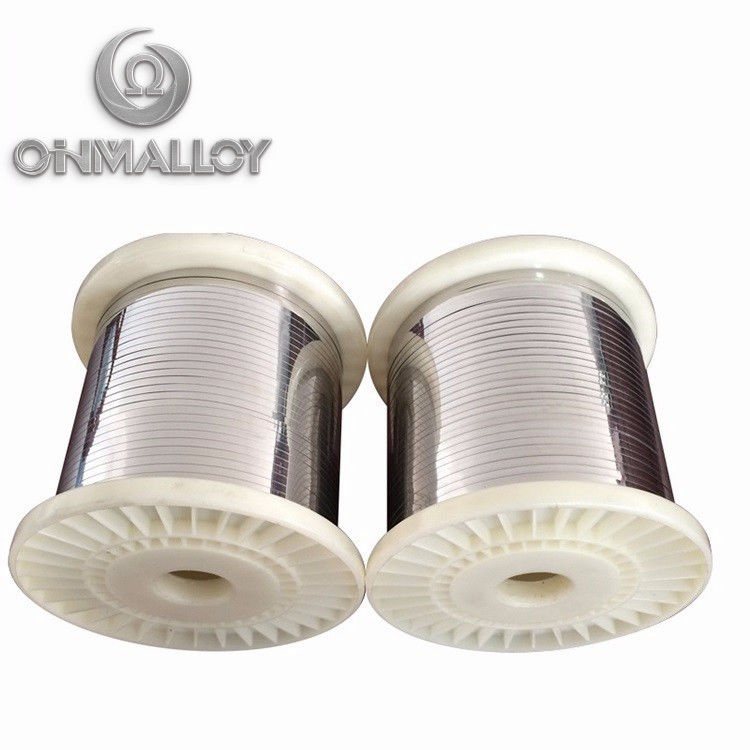

Large Image :  8.4 Density Nickel Chromium Alloy Ribbon Cr20ni80 For Bag Sealing Machine

Product Details:

Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO,SGS
Model Number: 2080012BS

Payment & Shipping Terms:

Minimum Order Quantity: 5kg
Price: negotiable
Packaging Details: Plastic packing inside, wooden box outside , choose the suitable packing, Alos it can be customized by the clients' demand.
Payment Terms: T/T, Western Union, L/C
Supply Ability: 80000Kg/Week
Contact Now
Detailed Product Description
Resistivity: 1.09μΩ.m Surface: Bright
Application: Tubular Heater Density: 8.4
Melting Point: 1400 Working Temperature: 1200

Nickel chromium Alloy Ribbon Cr20Ni80 Size:0.1x5mm State:Soft For Bag Sealing Machine



OhmAlloy109
(Common Name:Ni80Cr20,Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,Alloy 650,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80.)



    OhmAlloy109 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.

Typical applications for OhmAlloy109 are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.



Normal composition%

C P S Mn Si Cr Ni Al Fe Other
Max
0.03 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -



Temperature Factors Of Electrical Resistivity
20℃ 100℃ 200℃ 300℃ 400℃ 600℃
1 1.006 1.012 1.018 1.025 1.018
700℃ 800℃ 900℃ 1000℃ 1100℃ 1300℃
1.01 1.008 1.01 1.014 1.021 -

Typical Mechanical properties(1.0mm)

  1.  Elongation:               30%
  2.  Yield Strength:         420Mpa
  3.  Tensile Strength:     810Mpa

Typical Physical properties

Density (g/cm3) 8.4
Electrical resistivity at 20℃(Ωmm2/m) 1.09
Conductivity coefficient at 20℃ (WmK) 15



Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃ 18





Specific heat capacity
Temperature 20℃
J/gK 0.46



Melting point (℃) 1400
Max continuous operating temperature in air (℃) 1200
Magnetic properties non-magnetic



Style of supply

Alloys Name Type Dimension
OhmAlloy109W Wire D=0.03mm~8mm
OhmAlloy109R Ribbon W=0.4~40 T=0.03~2.9mm
OhmAlloy109S Strip W=8~250mm T=0.1~3.0
OhmAlloy109F Foil W=6~120mm T=0.003~0.1
OhmAlloy109B Bar Dia=8~100mm L=50~1000

Application:

8.4 Density Nickel Chromium Alloy Ribbon Cr20ni80 For Bag Sealing Machine
