White Color Insulated Heating Wire Nickel Alloy Wire Vitreous Silica Fiber 0Cr20Ni80

China White Color Insulated Heating Wire Nickel Alloy Wire Vitreous Silica Fiber 0Cr20Ni80 supplier
White Color Insulated Heating Wire Nickel Alloy Wire Vitreous Silica Fiber 0Cr20Ni80 supplier White Color Insulated Heating Wire Nickel Alloy Wire Vitreous Silica Fiber 0Cr20Ni80 supplier White Color Insulated Heating Wire Nickel Alloy Wire Vitreous Silica Fiber 0Cr20Ni80 supplier White Color Insulated Heating Wire Nickel Alloy Wire Vitreous Silica Fiber 0Cr20Ni80 supplier

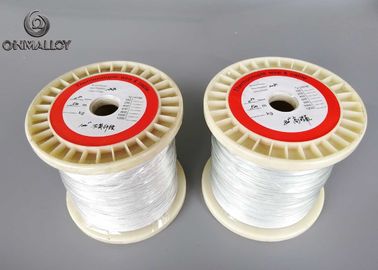

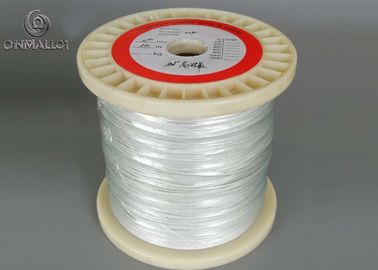

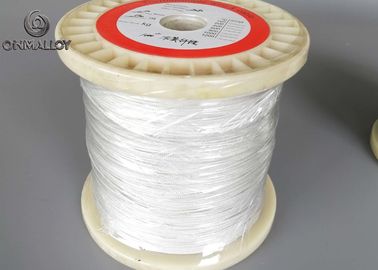

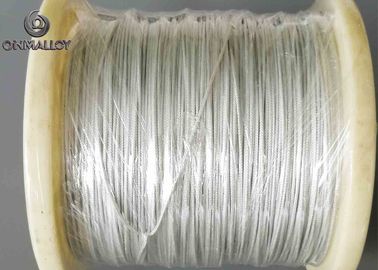

Large Image :  White Color Insulated Heating Wire Nickel Alloy Wire Vitreous Silica Fiber 0Cr20Ni80

Product Details:

Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: RoHs
Model Number: SP-VS/SF-2080

Payment & Shipping Terms:

Minimum Order Quantity: 100 meters
Packaging Details: Spool+paper carton
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100000 meters per month
Contact Now
Detailed Product Description
Name: Vitreous Silica Fiber 0Cr20Ni80 Heating Cable Insulation Material: Vitreous Silica(800C)/ Silica Fiber(1000C)
Conductor Material: Nickel Alloy Wire/ FeCrAl Wire Surface Handling: Varinshed
Color: White Warranty: 3 Years

Vitreous Silica Fiber Heating Cable Bearing 800 1000 Degree Celsius 0Cr20Ni80 Resistance Cable



Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.


Typical applications for Ni80Cr20 are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.



1. Product Detail



1) Normal Composition(%)

C P S Mn Si Cr Ni Al Fe Other
Max
0.03 0.02 0.015 0.60 0.75-1.60 20.0~23.0 Bal Max 0.5 Max1.0 -



2)Typical Mechanical Properties(1.0mm)

Yield strength Tensile Strength Elongation
Mpa Mpa %
420 810 30



3)Typical Physical Properties

Density (g/cm3) 8.40
Electrical resistivity at 20℃(Ωmm2/m) 1.09
Conductivity coefficient at 20℃ (WmK) 15



4)Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃ 18



5)Specific heat capacity
Temperature 20℃
J/gK 0.46
Melting point (℃) 1400
Max continuous operating temperature in air (℃) 1200
Magnetic properties non-magnetic

White Color Insulated Heating Wire Nickel Alloy Wire Vitreous Silica Fiber 0Cr20Ni80





Insulation Material Inspection: Vitreous Silica Material Batch No.: V19D01



SiO2 Infiltrant content Fiberglass Nominal Diameter Max Working Temperature (long time) Tex
98% 0.9% 8μm 800℃ 160





Insulation Material Inspection: Silica Fiber Material Batch No.: V19H03



SiO2 Infiltrant content Fiberglass Nominal Diameter Max Working Temperature (long time) Tex
99.95% 0.8% 7.8μm 1000℃ 140
