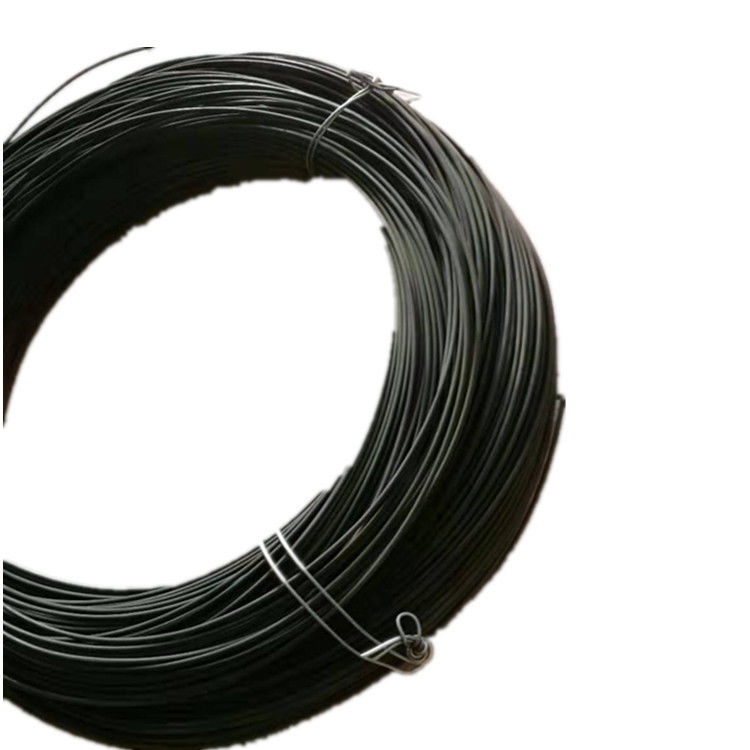

Alloy 835 / 0Cr21Al6 Nb Fecral Resistance Wire 0.02 - 10mm Oxidation Surface

China Alloy 835 / 0Cr21Al6 Nb Fecral Resistance Wire 0.02 - 10mm Oxidation Surface supplier

Large Image :  Alloy 835 / 0Cr21Al6 Nb Fecral Resistance Wire 0.02 - 10mm Oxidation Surface

Product Details:

Place of Origin: China
Brand Name: Ohmalloy
Certification: SGS, IOS
Model Number: OhmAlloy145

Payment & Shipping Terms:

Minimum Order Quantity: 10KG
Packaging Details: Plastic packing inside, wooden box outside , choose the suitable packing, Also it can be customized by the clients' demand.
Delivery Time: within 7 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 80000 kilograms per week
Contact Now
Detailed Product Description
Chemical Composition: 21%Cr 6%Al Balance Fe And Nb Dimensions: 0.02-10mm
Material: Alloy Shape: Wire
Application: Industry And Household Appliances Resistivity(μΩ.m): 1.45
Tensile Strength (≥ MPa): 725 Elongation (≥ %): 22
Yield Strength (≥ MPa): 550 Density (g/cm3): 7.10
Working Temperature(℃): 1350 OEM: Available
Annealing Treatment: Oxidation Surface Treatment: Oxidation
Certificate: SGS, IOS

Alloy 835 / 0Cr21Al6 Nb Fecral Resistance Wire 0.02 - 10mm Oxidation Surface



OhmAlloy145:

Common Name: 0Cr21Al6Nb, Kanthal A, Alloy 835

OhmAlloy145 is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.



Typical applications for OhmAlloy145 are used in industrial electric furnace, household electrical appliance and far infrared ray device.

Normal composition%

C P S Mn Si Cr Ni Al Fe Other
Max
0.06 0.025 0.025 0.70 Max 1.0 19.0~22.0 Max 0.60 5.0~7.0 Bal. Nb0.5



Typical Mechanical properties(1.0mm)

Yield strength Tensile Strength Elongation
Mpa Mpa %
550 725 22



Typical Physical properties

Density (g/cm3) 7.10
Electrical resistivity at 20℃(Ωmm2/m) 1.45
Conductivity coefficient at 20℃ (WmK) 13



Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃ 16



Specific heat capacity
Temperature 20℃
J/gK 0.49



Melting point (℃) 1510
Max continuous operating temperature in air (℃) 1350
Magnetic properties non-magnetic


Temperature Factor of Electrical Resistivity

20℃ 100℃ 200℃ 300℃ 400℃ 500℃ 600℃ 800℃ 900℃ 1000℃ 1100℃ 1200℃ 1300℃
1

0.997

0.996 0.994 0.991 0.990 0.990 0.990 0.990 0.990 0.990 0.990 1.000



Style of supply

Alloys Name Type Dimension
OhmAlloy142AW Wire D=0.03mm~8mm
OhmAlloy142AR Ribbon W=0.4~40 T=0.03~2.9mm
OhmAlloy142AS Strip W=8~250mm T=0.1~3.0
OhmAlloy142AF Foil W=6~120mm T=0.003~0.1
OhmAlloy142AB Bar Dia=8~100mm L=50~1000
