Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001,SGS,RoHS | Shape: | Wire |
|---|---|---|---|
| Application: | Heater | Chemical Composition: | Nichrome |
| Material: | Nichrome | Product Name: | Resistance Wire |
| Melting Point: | 1380~1400 ℃ | ||
| High Light: | nichrome wire,nichrome resistance wire,nickel chromium resistance wire |
||

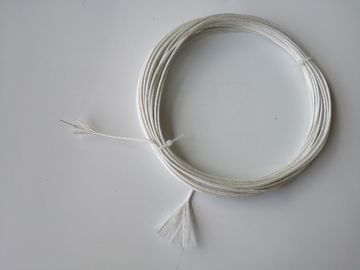

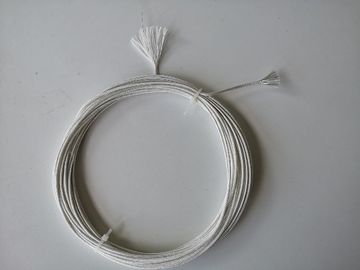

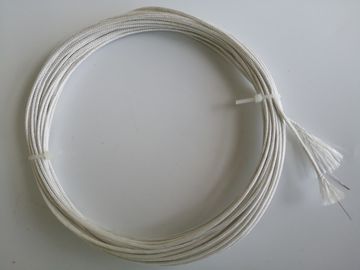

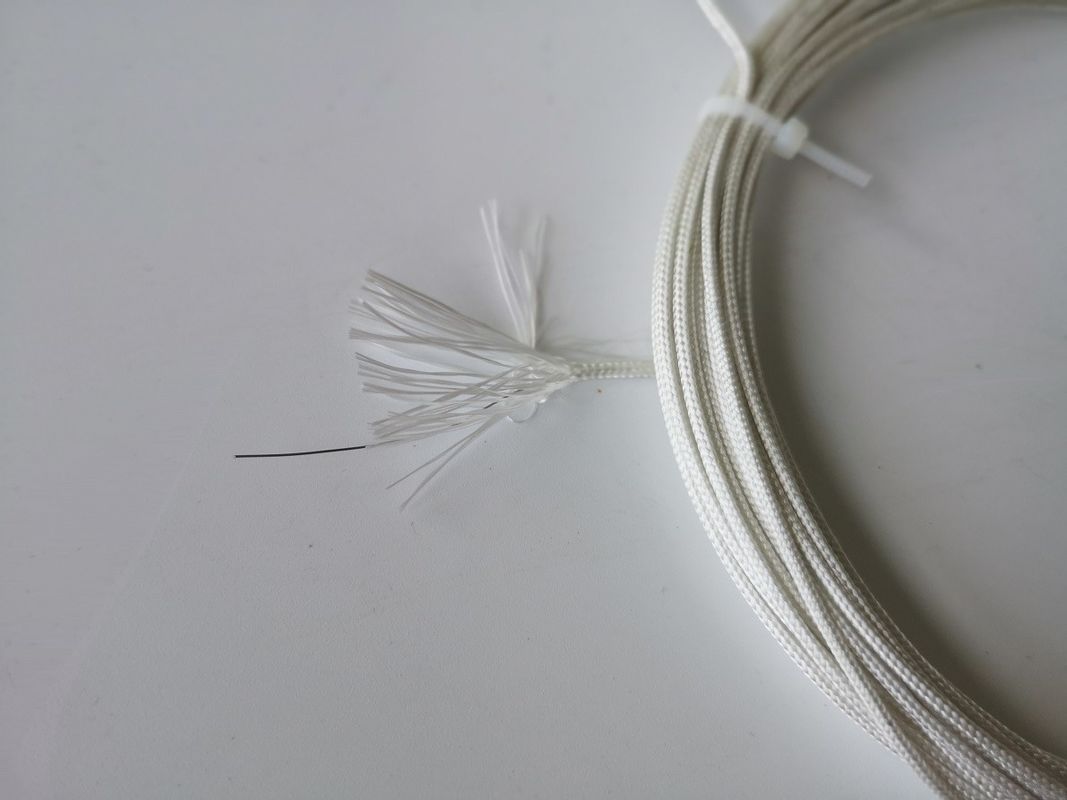

Nichrome Heating wire 0.3mm With Fiberglass insulation For Heating element
Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
Typical applications for Ni80Cr20 are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
1. Product Detail
1) Normal Composition(%)
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.03 | 0.02 | 0.015 | 0.60 | 0.75-1.60 | 20.0~23.0 | Bal | Max 0.5 | Max1.0 | - |
2) Typical Mechanical Properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 420 | 810 | 30 |
3) Typical Physical Properties
| Density (g/cm3) | 8.40 |
| Electrical resistivity at 20ºC(Ωmm2/m) | 1.09 |
| Conductivity coefficient at 20ºC (WmK) | 15 |
| 4) Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/ºC |
| 20 ºC- 1000ºC | 18 |
| 5) Specific heat capacity | |
| Temperature | 20ºC |
| J/gK | 0.46 |
| Melting point (ºC) | 1400 |
| Max continuous operating temperature in air (ºC) | 1200 |
| Magnetic properties | non-magnetic |
6) Temperature Factor of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC |
| 1 | 1.006 | 1.012 | 1.018 | 1.025 | 1.018 | 1.01 | 1.008 | 1.01 | 1.014 | 1.021 | - |
1
7)Style of supply
| Alloys Name | Type | Dimension | |
| OhmAlloy109W | Wire | D=0.03mm~8mm | |
| OhmAlloy109R | Ribbon | W=0.4~40 | T=0.03~2.9mm |
| OhmAlloy109S | Strip | W=8~250mm | T=0.1~3.0 |
| OhmAlloy109F | Foil | W=6~120mm | T=0.003~0.1 |
| OhmAlloy109B | Bar | Dia=8~100mm | L=50~1000 |
