As IEC60317 Thermal Insulated Wire High Temperature Resistance Wire For 5G Communications

I'm Online Chat Now
Certification
China Ohmalloy Material Co.,Ltd certification
China Ohmalloy Material Co.,Ltd certification
I search for Nichrome plate long time, and successfully bought it from Ohmalloy material. OHMALLOY provide real good service in alloy service and can always help me in finding the correct resistance alloy.

—— Mike Harness

OHMALLOY can provie me only 1kg Kovar alloy wire 1.0mm with short time, that is really amazing. Thanks

—— Janey

Really professional in thermocouple wire and cable, what i want just can get from OHMALLOY

—— Chris

Enamelled Constantan 0.08mm, i never expect to get only 2kg of it. But OHMALLOY supply it to me with good quality. God Jesus! Such a reliable supplier from china

—— Aaron

As IEC60317 Thermal Insulated Wire High Temperature Resistance Wire For 5G Communications

As IEC60317 Thermal Insulated Wire High Temperature Resistance Wire For 5G Communications
As IEC60317 Thermal Insulated Wire High Temperature Resistance Wire For 5G Communications
video play

Large Image :  As IEC60317 Thermal Insulated Wire High Temperature Resistance Wire For 5G Communications Get Best Price

Product Details:
Place of Origin: China
Brand Name: OHMALLOY
Certification: ISO,Rohs
Model Number: Copper
Payment & Shipping Terms:
Minimum Order Quantity: 1spool
Packaging Details: By Spool
Delivery Time: 10~15 working days
Payment Terms: L/C, T/T,
Supply Ability: 50T/Spool
Detailed Product Description
Color: Nature,black,red,green,yellow Solid Wire: Pure Copper
Class Grade: 130℃,155℃,180℃,200℃,220℃ OEM: Available
Insulation Type: Enameling Application: OEM
Min Dia.: 0.02mm
High Light:

silicone rubber insulated wire

,

high temperature insulated wire

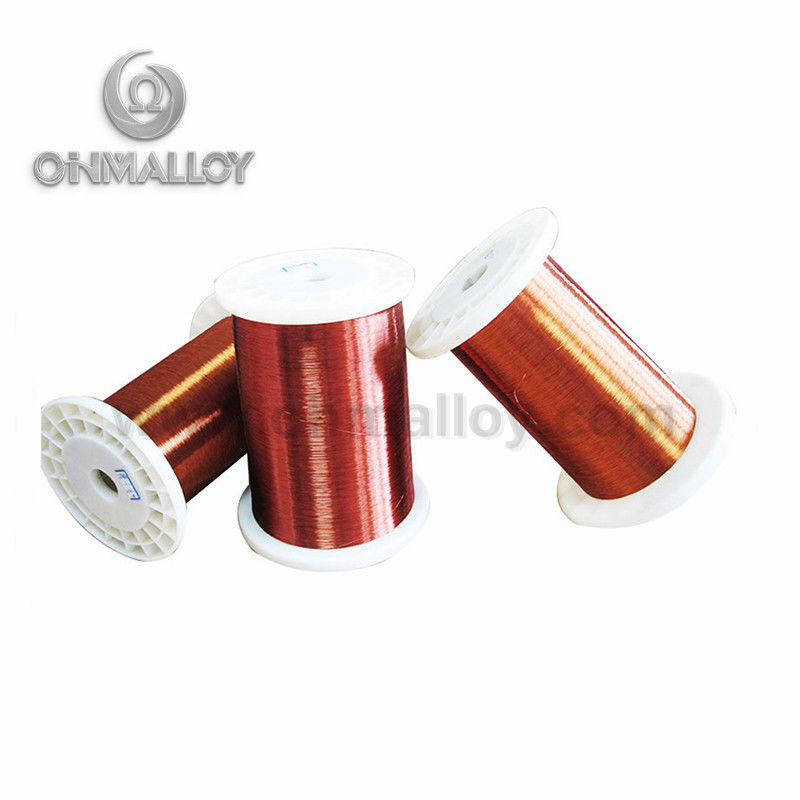

As IEC60317 enamel coated Micro-Copper Wire 0.025,0.04mm Enamel Insulated Copper wire for 5G communications



Product Description

These enameled resistance wires have been broadly used for standard resistors, High /Low Voltage Resistor automobile parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.

Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.



Type of bare alloy wire

Copper-nickel alloy wire,

Pure copper, Constantan Wire,CuNi1,CuNi2,CuNi6~CuNi44 Resistance Wire,

Ni-Cr Alloy wire

Pure Nickel NiCr35/20,NiCr70/30,NiCr60/15,

NiCr80/20,NiCr90/10,NiCr AA,Karma.

Fe-Cr-Al Alloy wire

Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5,

Cr21Al6Nb,Cr27Al7Mo2,

Cu-Ni-Mn Alloy wire

CuMn12Ni2,CuMn12Ni4,Manganin,NiMn2,

Any copper alloy and nickel alloy is available









Color of enameled insulation:

Red,Green,Yellow,Black,Blue,Nature etc.







Type of insulation

Insulation-enameled Name

Thermal Level

(working time 2000h)

Code Name

GB Code

ANSI. TYPE

Polyurethane enameled wire

130

UEW

QA

MW75C

Polyester enameled wire

155

PEW

QZ

MW5C

Polyester-imide enameled wire

180

EIW

QZY

MW30C

Polyester-imide and polyamide-imide double coated enameled wire

200

EIWH

(DFWF)

QZY/XY

MW35C

Polyamide-imide enameled wire

220

AIW

QXY

MW81C



Style of supply

Alloys Name

Type

Dimension

Enameled-W

Wire

D=0.018mm~3mm

Enameled-R

Ribbon

W=0.4~24

T=0.01~0.2mm
