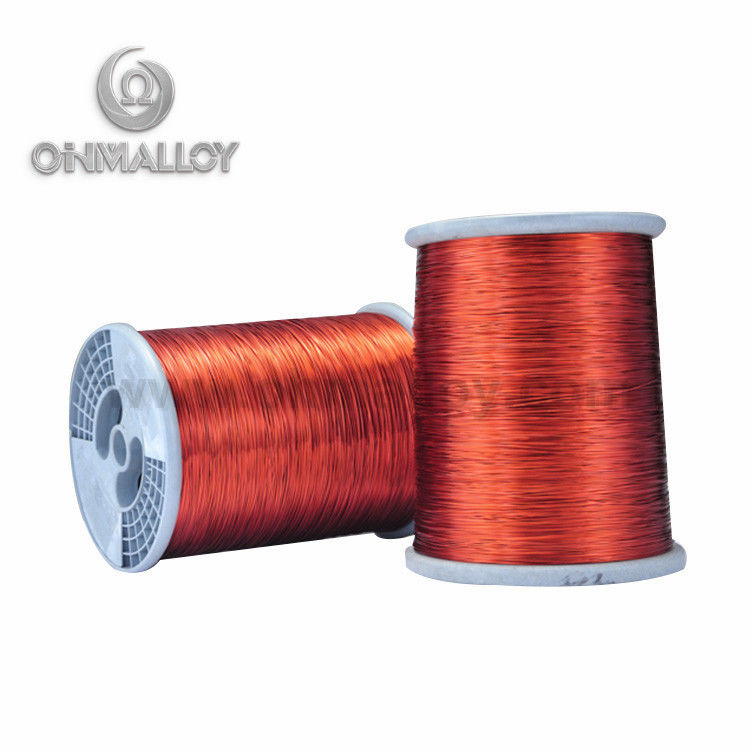

0.1mm N6 N200 Insulated Resistance Wire For Precision Electronic Element

China 0.1mm N6 N200 Insulated Resistance Wire For Precision Electronic Element supplier
0.1mm N6 N200 Insulated Resistance Wire For Precision Electronic Element supplier 0.1mm N6 N200 Insulated Resistance Wire For Precision Electronic Element supplier 0.1mm N6 N200 Insulated Resistance Wire For Precision Electronic Element supplier 0.1mm N6 N200 Insulated Resistance Wire For Precision Electronic Element supplier 0.1mm N6 N200 Insulated Resistance Wire For Precision Electronic Element supplier

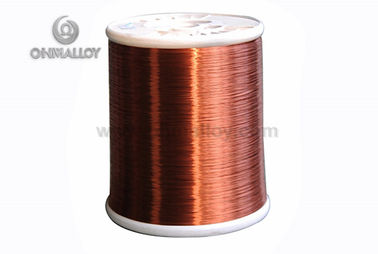

Large Image :  0.1mm N6 N200 Insulated Resistance Wire For Precision Electronic Element

Product Details:

Place of Origin: China
Brand Name: OHMALLOY
Certification: ISO,Rohs
Model Number: Enamel Insulated

Payment & Shipping Terms:

Minimum Order Quantity: 1spool
Packaging Details: By Spool
Delivery Time: 10~15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50T/Spool
Contact Now
Detailed Product Description
Color: Nature,black,red,green,yellow Solid Wire: Nickel
Class Grade: 130℃,155℃,180℃,200℃,220℃ OEM: Available
Insulation Type: Enameling Application: OEM
Min Dia.: 0.02mm

Red Color Enameled / Enamel Coating Pure Nickel Wire Diameter: 0.1mm N6 N200 for Precision electronic Element



Product Description



These enameled resistance wires have been broadly used for standard resistors, High /Low Voltage Resistor automobile parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.

Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.



Type of bare alloy wire

Copper-nickel alloy wire,

Pure copper, Constantan Wire,CuNi1,CuNi2,CuNi6~CuNi44 Resistance Wire,

Ni-Cr Alloy wire

Pure Nickel NiCr35/20,NiCr70/30,NiCr60/15,

NiCr80/20,NiCr90/10,NiCr AA,Karma.

Fe-Cr-Al Alloy wire

Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5,

Cr21Al6Nb,Cr27Al7Mo2,

Cu-Ni-Mn Alloy wire

CuMn12Ni2,CuMn12Ni4,Manganin,NiMn2,

Any copper alloy and nickel alloy is available









Color of enameled insulation:

Red,Green,Yellow,Black,Blue,Nature etc.







Type of insulation

Insulation-enameled Name

Thermal Level

(working time 2000h)

Code Name

GB Code

ANSI. TYPE

Polyurethane enameled wire

130

UEW

QA

MW75C

Polyester enameled wire

155

PEW

QZ

MW5C

Polyester-imide enameled wire

180

EIW

QZY

MW30C

Polyester-imide and polyamide-imide double coated enameled wire

200

EIWH

(DFWF)

QZY/XY

MW35C

Polyamide-imide enameled wire

220

AIW

QXY

MW81C



Style of supply

Alloys Name

Type

Dimension

Enameled-W

Wire

D=0.018mm~3mm

Enameled-R

Ribbon

W=0.4~24

T=0.01~0.2mm
