1J46 46Ni-Fe Wear Resistant Alloy 0.05 - 2.0mm Thickness Size With ISO9001

China 1J46 46Ni-Fe Wear Resistant Alloy 0.05 - 2.0mm Thickness Size With ISO9001 supplier
1J46 46Ni-Fe Wear Resistant Alloy 0.05 - 2.0mm Thickness Size With ISO9001 supplier 1J46 46Ni-Fe Wear Resistant Alloy 0.05 - 2.0mm Thickness Size With ISO9001 supplier 1J46 46Ni-Fe Wear Resistant Alloy 0.05 - 2.0mm Thickness Size With ISO9001 supplier

Large Image :  1J46 46Ni-Fe Wear Resistant Alloy 0.05 - 2.0mm Thickness Size With ISO9001

Product Details:

Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: ISO9001
Model Number: SP-1J46

Payment & Shipping Terms:

Minimum Order Quantity: 5KG
Packaging Details: As customer requirement
Delivery Time: 5-15 working days after payment confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 5 tons per month
Contact Now
Detailed Product Description
Name: 1J46 46Ni-Fe Softe Magnetic Alloy Equivalent To PERMENORM5000 H2 Material: 46Ni-Fe(1J46)

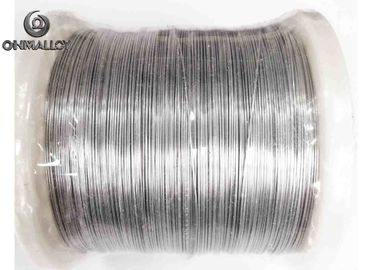

Supply State: Wire/Strip/Rod Thickness Size: 0.05-2.0mm
Tensile Strength: 850-1100N/mm2 Coefficent Of Thermal Expansion: 8.85 · 10-6/K(after Final Magnetic Annealing)
Young´s Modulus: 195 KN/mm² Certification: ISO9001

1J46 46Ni-Fe Softe Magnetic Alloy Equivalent to PERMENORM5000 H2 High Permability45 PB-1



Transformer Grade PERMENORM 5000 H2 exhibits a very coarse-grained, anisotropic structure after final heat treatment. The cold rolled material can show a cubic texture which results in high permeability values in the rolling direction and to some extent in transverse direction after the final annealing.



PERMENORM 5000 exhibits the highest saturation polarization of 1.55 T in the NiFe system in combination with a high initial and maximum permeability.

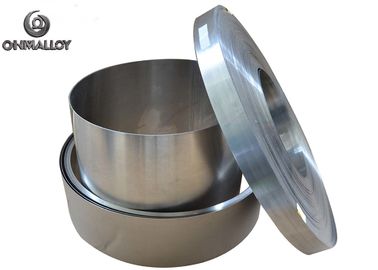

PERMENORM 5000 H2(1J46) is available as solid material (bar, rod, wire) or as cold rolled strip in thicknesses from 0.025 mm to 2.0 mm. PERMENORM 5000 V5 is available as cold rolled strip in thicknesses from 0.05 mm to 2.0 mm.



For optimum magnetic properties PERMENORM 5000 should be annealed in an oxygen-free, dry hydrogen atmosphere with a dew point below -40°C, at a temperature above 1000°C. Recommended parameters for stationary annealing are 5 h 1150°C.





Chemical Composition(%)

Name Ni Fe Other

1J46 46Ni-Fe

(Permenorm 500 H2)

46-47.5 Balance Mn,Si



Magnetic Properties (dynamic (50Hz) properties of solid material, measured on stamped rings)

Material

Permeabilityμ

@ 0.4 A/m

Permeability
μmax
Lossse@1T Saturation
polarization

1J46 46Ni-Fe

(Permenorm 500 H2)

12000 90000 p=0.25W/KG at thickness 0.2mm 1.55T



Physical properties

Mass density 8.25 g/cm³
Electrical resistivity 0.45 Ohm mm²/ m
Thermal conductivity 13 - 14 W/m/K
Curie temperature 440°C
Coefficent of Thermal Expansion
(20..200°C)
8.85 · 10-6/K(after final magnetic annealing)



Mechanical properties

Tensile strength 850 - 1100 N/mm²
Young´s modulus 195 kN/mm²
Vickers hardness HV 220 – 300

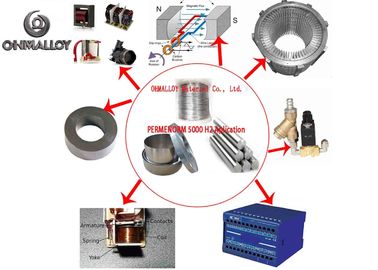

1J46 46Ni-Fe (Permenorm 500 H2) Application



1.Inductive Components and Cores    2.Strip Wound Cores     3.Relay Parts      4.Measurement Transducers

 1J46 46Ni-Fe Wear Resistant Alloy 0.05 - 2.0mm Thickness Size With ISO90011J46 46Ni-Fe Wear Resistant Alloy 0.05 - 2.0mm Thickness Size With ISO90011J46 46Ni-Fe Wear Resistant Alloy 0.05 - 2.0mm Thickness Size With ISO90011J46 46Ni-Fe Wear Resistant Alloy 0.05 - 2.0mm Thickness Size With ISO9001





5.Rotor and Stator Laminations   6.Flux Conductors      7.Pole Pieces in Magnetic Valves

1J46 46Ni-Fe Wear Resistant Alloy 0.05 - 2.0mm Thickness Size With ISO90011J46 46Ni-Fe Wear Resistant Alloy 0.05 - 2.0mm Thickness Size With ISO90011J46 46Ni-Fe Wear Resistant Alloy 0.05 - 2.0mm Thickness Size With ISO9001
