Nickel Iron Soft Magnetic Materials Z Strip Wire Rod High Initial Permeability

China Nickel Iron Soft Magnetic Materials Z Strip Wire Rod High Initial Permeability supplier
Nickel Iron Soft Magnetic Materials Z Strip Wire Rod High Initial Permeability supplier Nickel Iron Soft Magnetic Materials Z Strip Wire Rod High Initial Permeability supplier Nickel Iron Soft Magnetic Materials Z Strip Wire Rod High Initial Permeability supplier Nickel Iron Soft Magnetic Materials Z Strip Wire Rod High Initial Permeability supplier

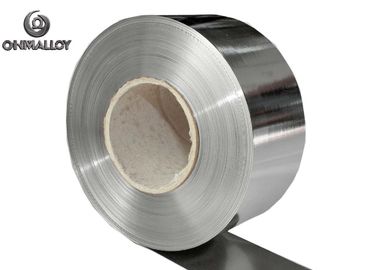

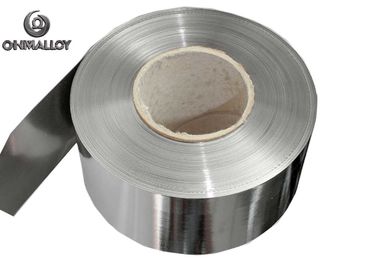

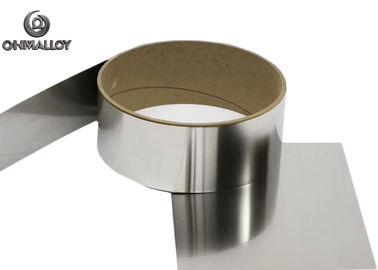

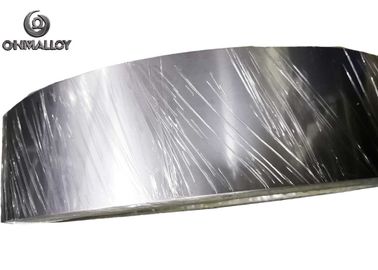

Large Image :  Nickel Iron Soft Magnetic Materials Z Strip Wire Rod High Initial Permeability

Product Details:

Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: ISO9001
Model Number: SP-1J50

Payment & Shipping Terms:

Minimum Order Quantity: 20KG
Packaging Details: Coil+plywood case
Delivery Time: 3-15 working days after payment confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 30 tons per month
Contact Now
Detailed Product Description
Name: 1J50 Ni50Fe Equivalent To Square Orthonol Permenorm 5000 Z Strip Supply Shape: Wire,Strip,Rod,Plate
Equivalent Brand: Square Orthonol/Permenorm 5000 Z/HCR SR/Rectimphy/HyRa 49 Saturation Induction (at 80A/m): 1.5T (15 000Gs)
Maximun Permeability: ≥62.5mH/m(50 000Gs/Oe) Coercive Force: ≤9.60A/m (0.12Oe)

1J50 50Ni-Fe Equivalent to Square Orthonol Permenorm 5000 Z Strip Wire Rod Available



1J50 is a kind of nickel-iron soft magnetic alloy which has high initial permeability and maximum permeability with low coercive force and high saturation magnetic induction strength. It is usually used in saturable reactors, high gain magnetic amplifiers, biostable switching devices, and power inverter-converter applications.



The typical applications of 1J50 50Ni-Fe(Square Orthonol / Permenorm 5000 Z) are:



1. Relays                                  2. Transformers                      3. Filters

Nickel Iron Soft Magnetic Materials Z Strip Wire Rod High Initial Permeability Nickel Iron Soft Magnetic Materials Z Strip Wire Rod High Initial PermeabilityNickel Iron Soft Magnetic Materials Z Strip Wire Rod High Initial Permeability

4. Chokes                                 5. The Core of Electromagnetic Clutch

Nickel Iron Soft Magnetic Materials Z Strip Wire Rod High Initial PermeabilityNickel Iron Soft Magnetic Materials Z Strip Wire Rod High Initial Permeability



6. Vibration Membrane                                      7. Shielding

Nickel Iron Soft Magnetic Materials Z Strip Wire Rod High Initial PermeabilityNickel Iron Soft Magnetic Materials Z Strip Wire Rod High Initial Permeability



1J50 50Ni-Fe(Square Orthonol / Permenorm 5000 Z) Chemical Composition:(%)



Name Ni Fe Mn Si C

1J50 50Ni-Fe

(Permenorm 5000 Z)

49-51 Balance 0.30-0.60 0.15-0.30 ≤0.03





Magnetic Properties (DC AC 50Hz)

Material

  Saturation Induction

(at 80A/m)

Coercive Force

Initial Permeability

(at 0.4A/m)

Maximum Permeability

1J50 50Ni-Fe

(Permenorm 5000 Z)

1.5T

(15 000Gs)

≤9.60A/m (0.12Oe)

≥3.8mH/m

(3 040Gs/Oe)

≥62.5mH/m

(50 000Gs/Oe)



Physical Properties

Density 8.25 g/cm³
Electrical resistivity 0.47 Ohm mm²/ m
Melting point 1430°C
Curie temperature 485°C
Coefficent of Thermal Expansion(20-200°C) 8.4 · 10-6/K







1J50 50Ni-Fe(Square Orthonol / Permenorm 5000 Z) has rectangular hysteresis loop and high saturation magnetic induction, is mainly used to worked at a moderate magnetic field magnetic amplifier, choke ring, rectifier circle, as well as the computer device components.



1J50 50Ni-Fe(Square Orthonol / Permenorm 5000 Z) is suitable for primary and secondary power transformers, micro-motor rotor, relays, electromagnetic clutches, torque motor street iron, barrier shielded magnetic shield, electronic stepper motor wire frame, electronic clock stator, buzzer vibrator and telephone components.



Nickel Iron Soft Magnetic Materials Z Strip Wire Rod High Initial Permeability
