500V Insulated Resistance Wire Multi Strands Conductor Type Fire Resistance

China 500V Insulated Resistance Wire Multi Strands Conductor Type Fire Resistance supplier
500V Insulated Resistance Wire Multi Strands Conductor Type Fire Resistance supplier 500V Insulated Resistance Wire Multi Strands Conductor Type Fire Resistance supplier 500V Insulated Resistance Wire Multi Strands Conductor Type Fire Resistance supplier 500V Insulated Resistance Wire Multi Strands Conductor Type Fire Resistance supplier

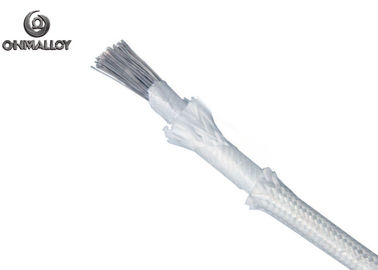

Large Image :  500V Insulated Resistance Wire Multi Strands Conductor Type Fire Resistance

Product Details:

Place of Origin: Shanghai
Brand Name: OHMALLOY/OEM
Certification: ISO9001
Model Number: SP-N6-MA-SV-2R

Payment & Shipping Terms:

Minimum Order Quantity: 50 meter
Packaging Details: Coil+Plywood Case
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100000 meter per month
Contact Now
Detailed Product Description
Name: 2mm2 Mica Wrap+Fiberglass Insulated High Temperature Fire Resistance Cable Conductor Material Options: Pure Nickel/ Tinned Copper/Pure Copper
Conductor Type: Multi-strands Insulation Material: Fiberglass(400℃/600℃/800℃/1000℃/1200℃)
Rated Voltage: 300-600V Max Working Temperature: Pure Copper(500℃)/Nickel Plated Copper(800℃)/Pure Nickel(1200℃)
Fire Resistance Ability: Burned With Flame At 800 ℃, It Will Not Fuse Within 90 Minutes Model: SP-N6-MA-SV-2R

2mm2 Mica Wrap+Fiberglass Insulated High Temperature Fire Resistance Cable 500V 1000℃



It is suitable for high-temperature environments such as metallurgy, petroleum, chemical industry, ovens, boilers, power plants, fire-fighting facilities, civil electric furnaces, etc., and cables for various electrical devices that require fire resistance.

It usually fixed laid for long-term use and there is no harmful toxic gases while examine by flame burning.



Specifications:



Conductor Material Options Pure Nickel/ Tinned Copper/Pure Copper
Conductor Type Multi-strands
Insulation Material Fiberglass(400℃/600℃/800℃/1000℃/1200℃)
Inner Sheath Mica Fiber Tape Warp(650℃)
Outer/Inner Sheath Material before Jacket Stainless Steel 304/GH3030/Tinned Copper/ Stainless Steel 316
Tracer Color Red, Blue, White, Yellow, Green, Brown, Black, White
Rated Voltage 300-600V
Max Working Temperature Pure Copper(500℃)/Nickel Plated Copper(800℃)/Pure Nickel(1200℃)
Fire Resistance Ability Burned with flame at 800 ℃, it will not fuse within 90 minutes



Application:



1. Fire pumps, spray pumps, power supply lines and control wires for fire elevators.

2. Power supply control circuit for fire shutter door, electric fire door, smoke exhaust system fan, smoke exhaust valve, fire valve.

3. Manual alarm circuit, fire broadcasting and telephone circuit of fire alarm system.

4. Security closed circuit TV lines in high-rise buildings and airports, subways and other important facilities.

5. Centralized power supply emergency lighting circuit, control and protection power circuit.

6. Important relay protection lines and operation power lines for large and medium-sized substations.

7. Computer monitoring circuit.

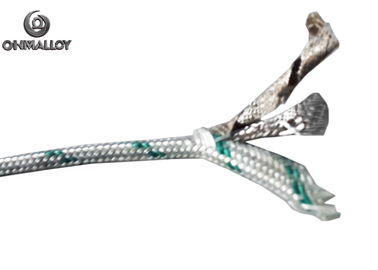

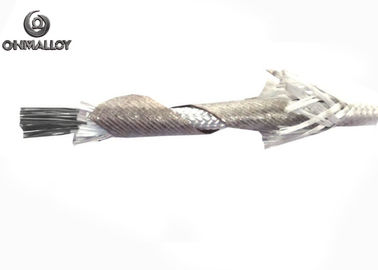

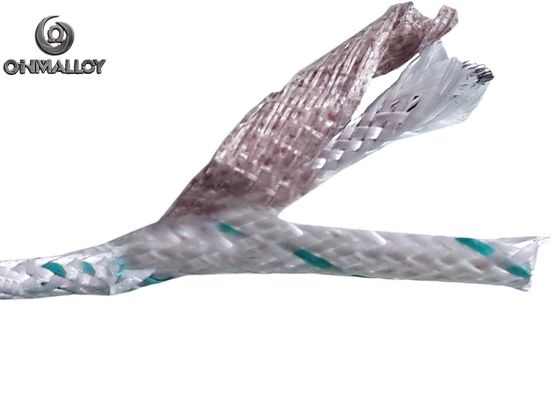

500V Insulated Resistance Wire Multi Strands Conductor Type Fire Resistance500V Insulated Resistance Wire Multi Strands Conductor Type Fire Resistance500V Insulated Resistance Wire Multi Strands Conductor Type Fire Resistance




OHMALLOY cable factory have 30 years in producing the thermocouple extension or compensation cable. We use our own thermocouple conductor to produce all kinds of insulated thermocouple wire and cable, Resistance Temperature Detector (RTD) cables and heating cables. Working temperature range is -60℃ to +1100℃. According to customer request, we supply professional wire and cable solution.

Now OHMALLOY have all processing matching for braiding, extruding, wrapping, varnishing.... So we can make all cable with all insulation such as PVC, PTFE, Silicone rubber, fiberglass,

The MOQ for fiberglass insulated wire can be any length, even 5meters is ok.

For the insulation such as PVC, TEFLON, we can supply 500meters as MOQ. That can help many customers on trial stage.

Welcome inquiries!
