Pure Copper Insulated Resistance Wire High Temperature Fire Resistance Cable

China Pure Copper Insulated Resistance Wire High Temperature Fire Resistance Cable supplier
Pure Copper Insulated Resistance Wire High Temperature Fire Resistance Cable supplier Pure Copper Insulated Resistance Wire High Temperature Fire Resistance Cable supplier Pure Copper Insulated Resistance Wire High Temperature Fire Resistance Cable supplier Pure Copper Insulated Resistance Wire High Temperature Fire Resistance Cable supplier

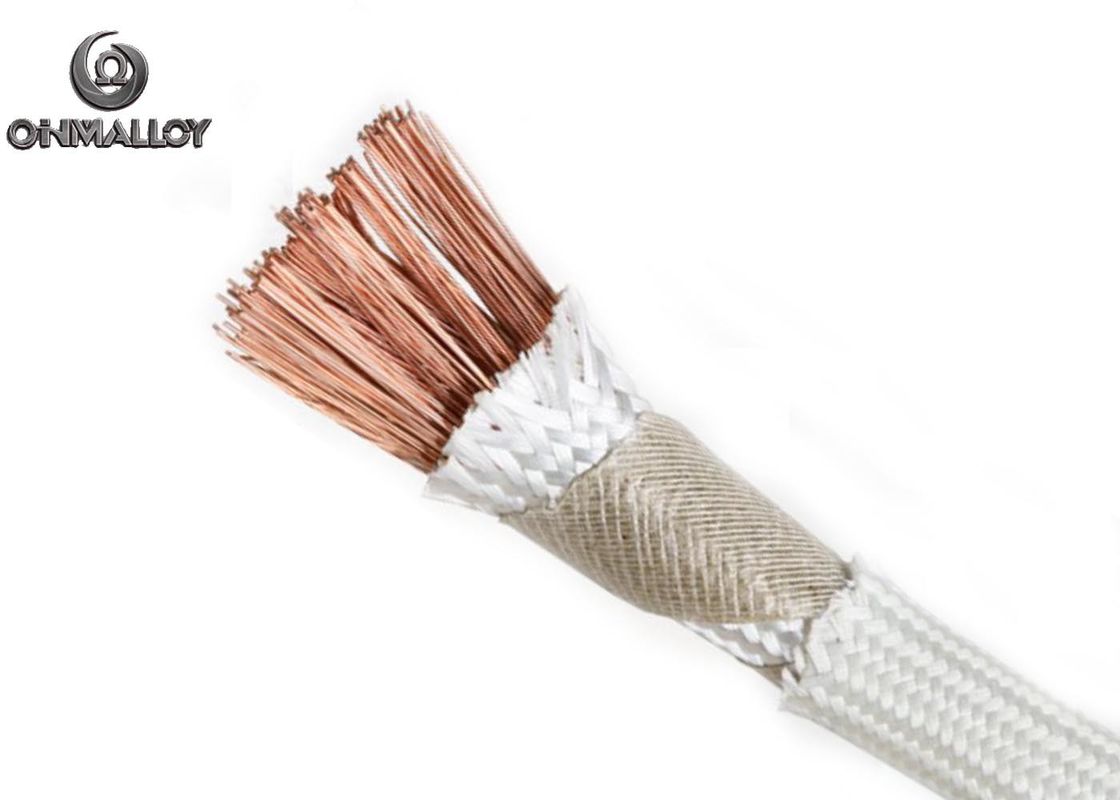

Large Image :  Pure Copper Insulated Resistance Wire High Temperature Fire Resistance Cable

Product Details:

Place of Origin: Shanghai
Brand Name: OHMALLOY/OEM
Certification: ISO9001
Model Number: SP-Copper-MA-BH-2R

Payment & Shipping Terms:

Minimum Order Quantity: 50 meter
Packaging Details: Coil+Plywood Case
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100000 meter per month
Contact Now
Detailed Product Description

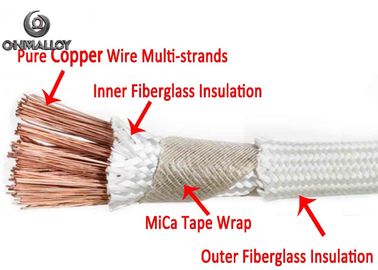

Name: Pure Copper High Temperature Fire Resistance Cable Mica Wrapping Stranded Conductor Conductor Material Options: Pure Copper
Conductor Type: 28 Strands Of 0.3mm Wire Insulation Material: Fiberglass600℃
Rated Voltage: 500V Fire Resistance Ability: Burned With Flame At 800 ℃, It Will Not Fuse Within 90 Minutes
Inner Sheath: Mica Tape Wrapping Certification: ISO9001

Pure Copper High Temperature Fire Resistance Cable Mica Wrapping Stranded Conductor



It is suitable for high-temperature environments such as metallurgy, petroleum, chemical industry, ovens, boilers, power plants, fire-fighting facilities, civil electric furnaces, etc., and cables for various electrical devices that require fire resistance.

It usually fixed laid for long-term use and there is no harmful toxic gases while examine by flame burning.



Specifications:



Conductor Material Options Pure Nickel/ Tinned Copper/Pure Copper
Conductor Type Multi-strands
Insulation Material Fiberglass(400℃/600℃/800℃/1000℃/1200℃)
Inner Sheath Mica Fiber Tape Warp(650℃)
Outer/Inner Sheath Material before Jacket Stainless Steel 304/GH3030/Tinned Copper/ Stainless Steel 316
Tracer Color Red, Blue, White, Yellow, Green, Brown, Black, White
Rated Voltage 300-600V
Max Working Temperature Pure Copper(500℃)/Nickel Plated Copper(800℃)/Pure Nickel(1200℃)
Fire Resistance Ability Burned with flame at 800 ℃, it will not fuse within 90 minutes



Application:



1. Fire pumps, spray pumps, power supply lines and control wires for fire elevators.

2. Power supply control circuit for fire shutter door, electric fire door, smoke exhaust system fan, smoke exhaust valve, fire valve.

3. Manual alarm circuit, fire broadcasting and telephone circuit of fire alarm system.

4. Security closed circuit TV lines in high-rise buildings and airports, subways and other important facilities.

5. Centralized power supply emergency lighting circuit, control and protection power circuit.

6. Important relay protection lines and operation power lines for large and medium-sized substations.

7. Computer monitoring circuit.

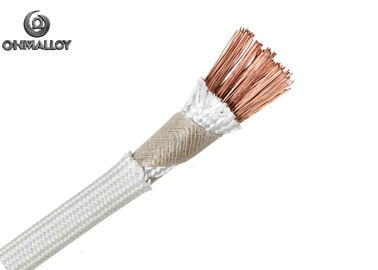

Pure Copper Insulated Resistance Wire High Temperature Fire Resistance Cable
