Product Details:
Payment & Shipping Terms:
|
| Name: | Chromel Alumel Thermocouple Strip ANSI For Thermocouple Plug PIN Material | Material: | Chromel Alumel |
|---|---|---|---|
| Supply State: | Strip | Surface: | Bright，Clean |
| Width Range: | 5-300mm | Thickness Range: | 0.1-3mm |
| Application: | Thermocouple Plug PIN Material | ||
| High Light: | ANSI Nichrome Alloy,Chromel Alumel Nichrome Alloy |
||

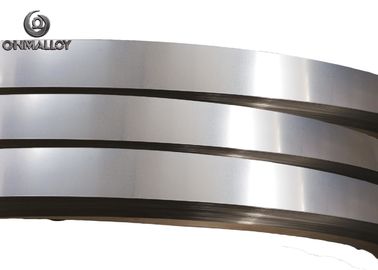

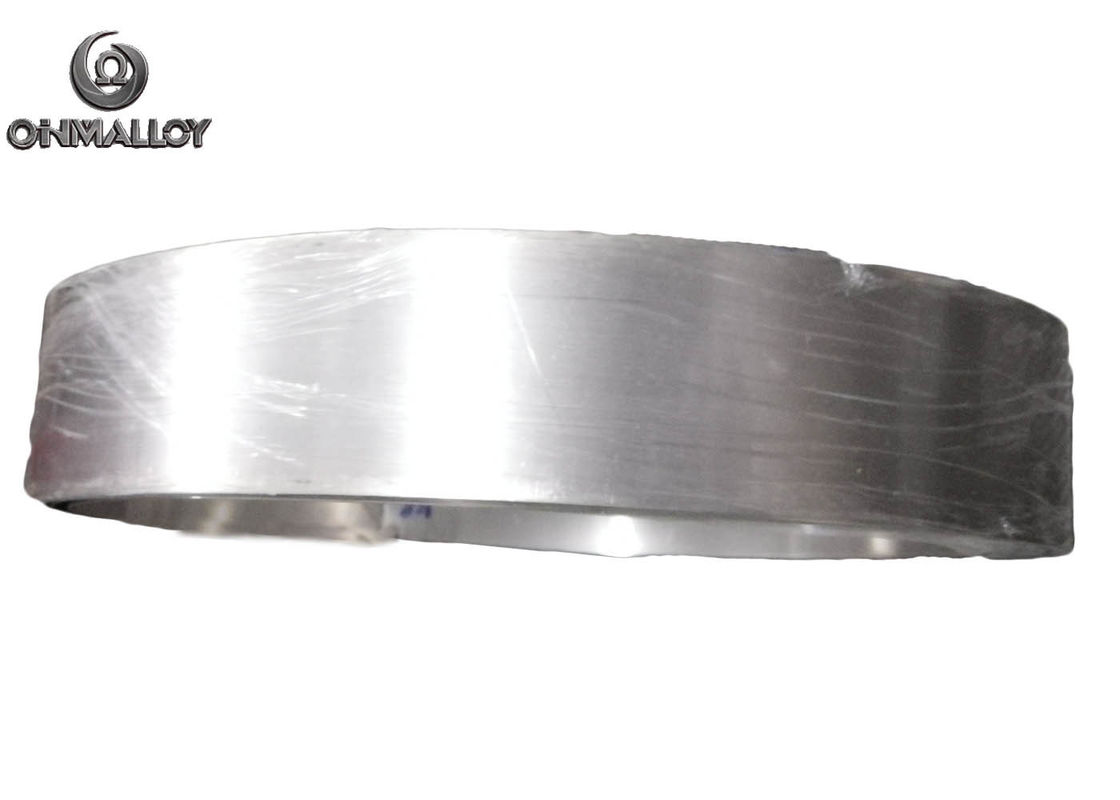

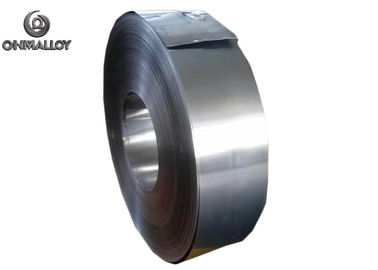

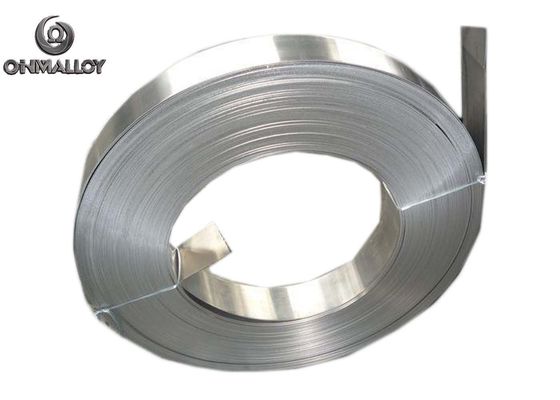

Chromel Alumel Thermocouple Strip ANSI for Thermocouple Plug PIN Material
Strip Chemical composition (%)
| Material | Chemical composition (%) | ||||
| Ni | Cr | Si | Mn | Al | |
| KP(Chromel) | 90 | 10 | |||
| KN(Alumel) | 95 | 1-2 | 0.5-1.5 | 1-1.5 | |
|
Material |
Density (g/cm3) |
Melting point℃) |
Tensile Strength (Mpa) |
Volume resistivity(μΩ.cm) |
Elongation rate (%) |
| KP(Chromel) | 8.5 | 1427 | >490 | 70.6(20℃) | >10 |
| KN(Alumel) | 8.6 | 1399 | >390 | 29.4(20℃) | >15 |
Thermocouple Strip Application:
