Corrosion Resistance NO7718 Inconel 718 High Temp Alloys

Corrosion Resistance NO7718 Inconel 718 High Temp Alloys
Corrosion Resistance NO7718 Inconel 718 High Temp Alloys

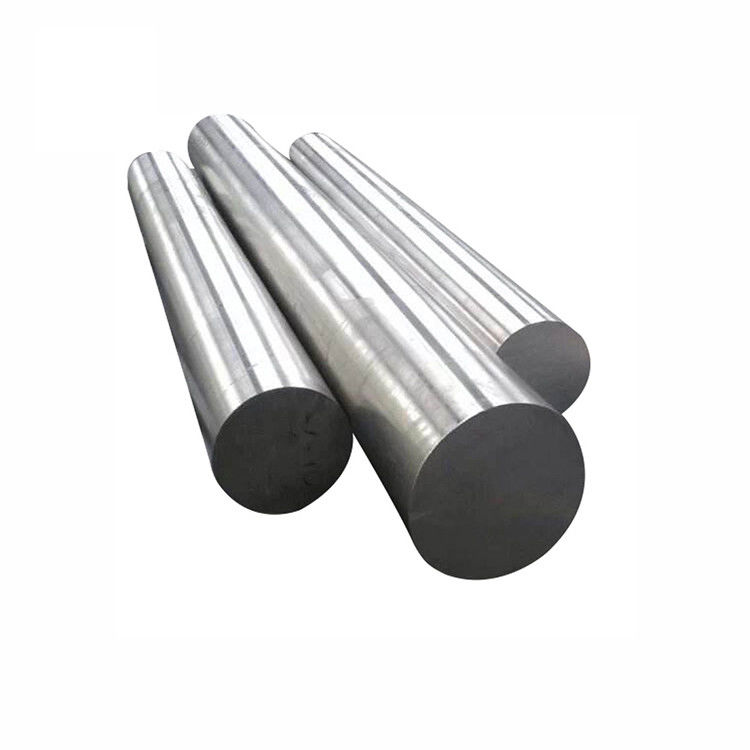

Large Image :  Corrosion Resistance NO7718 Inconel 718 High Temp Alloys Get Best Price

Product Details:

Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO ROHS
Model Number: 718

Payment & Shipping Terms:

Minimum Order Quantity: 20kg
Price: negotiable
Packaging Details: IN Wooden box
Delivery Time: 7-20days after your deposit received
Payment Terms: Western Union, L/C, T/T
Supply Ability: 20000T/Year
Detailed Product Description
UNS:: NO7718 Surface: Bright Or Oxidation
ISO: NiCr19Nb5Mo3(ISO) Power Or Not: Not
Type: Ni-Cr-Fe-Mo-Nb Alloy Craft: Hot Forging
Shape: Rod,
High Light:

Inconel 718 High Temp Alloys


NO7718 High Temp Alloys


NA 51 Forging Bar

Inconel 718 Bar Mo3(Germany) ,NA 51 Forging Bar With High temperature strength and excellent corrosion resistance

Product Description

Inconel 718

Alloy % Ni Cr Fe Mo Nb Co C Mn Si S Cu Al Ti
718 Min. 50 17 balance 2.8 4.75             0.2 0.7
Max. 55 21 3.3 5.5 1 0.08 0.35 0.35 0.01 0.3 0.8 1.15

Inconel 718 Physical properties

Density 8.2 g/cm³
Melting point 1260-1340 ºC

Inconel 718 Alloy minimum mechanical properties in the roomtemperature

Alloy Tensile strength Rm N/mm² Yield strength R P0. 2N/mm² Elongation A 5 % Brinell hardness
Solution treatment 965 550 30 ≤363


718 Characteristic as below:1.workability
2.High tensile strength,endurance strength,creep strength and rupture strength at 700ºC.
3.High inoxidability at1000ºC. 4.Steady mechanical performance in the low temperature.
5.Good welding performance.

Inconel 718 Metallurgical structure
718alloy is Austenitic structure, precipitation hardening generate "γ" made it excellent mechanical performance. G rain boundary generate "δ" made it the best plasticity in the heat treatment.

Inconel 718 Corrosion resistance
718 alloy with extremely resistance to stress corrosion cracking and pitting ability in high temperature or low temperature environments, especially the inoxidability in the high temperature.

Inconel 718 Application field:The elevated temperature strength, excellent corrosion resistance and workability at 700ºC properties made it use in a wide range of high requirement environments. 1.Steam turbine 2.Liquid-fuel rocket 3.Cryogenic engineering
4.Acid environment
5.Nuclear engineering

Product Application


Company Profile


Photo of Products

Rod Tesing .jpgHot forging Rod.jpg718 Rod.jpg
