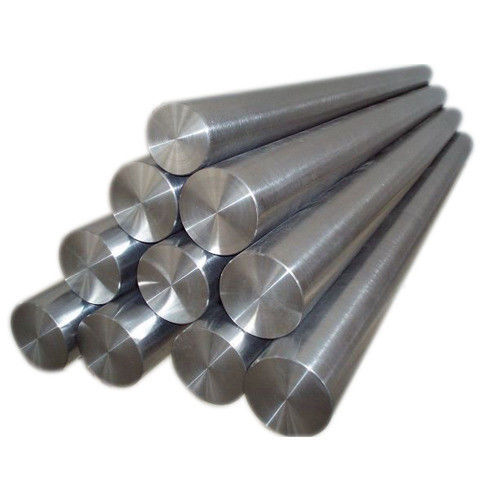

Metallurgical NiCr19Fe19Nb5 NO7718 Hot Forging Bar

Metallurgical NiCr19Fe19Nb5 NO7718 Hot Forging Bar
Metallurgical NiCr19Fe19Nb5 NO7718 Hot Forging Bar

Large Image :  Metallurgical NiCr19Fe19Nb5 NO7718 Hot Forging Bar Get Best Price

Product Details:

Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO ROHS
Model Number: 718

Payment & Shipping Terms:

Minimum Order Quantity: 20kg
Price: negotiable
Packaging Details: IN Wooden box
Delivery Time: 7-20days after your deposit received
Payment Terms: Western Union, L/C, T/T
Supply Ability: 20000T/Year
Detailed Product Description
UNS:: NO7718 Surface: Bright Or Oxidation
ISO: NiCr19Nb5Mo3(ISO) Power Or Not: Not
Type: Ni-Cr-Fe-Mo-Nb Alloy Craft: Hot Forging
Shape: Rod,
High Light:

NO7718 Hot Forging Bar

,

NiCr19Fe19Nb5 Hot Forging Bar

,

Metallurgical Inconel 718 Rod

Alloy 718 W.Nr.2.4668 NiCr19Fe19Nb5 Bright Surface Hot forging Bar Rod Dia 50mm-500mm with aging Treatment

Product Description

Inconel 718

Alloy % Ni Cr Fe Mo Nb Co C Mn Si S Cu Al Ti
718 Min. 50 17 balance 2.8 4.75             0.2 0.7
Max. 55 21 3.3 5.5 1 0.08 0.35 0.35 0.01 0.3 0.8 1.15

Inconel 718 Physical properties

Density 8.2 g/cm³
Melting point 1260-1340 ºC

Inconel 718 Alloy minimum mechanical properties in the roomtemperature

Alloy Tensile strength Rm N/mm² Yield strength R P0. 2N/mm² Elongation A 5 % Brinell hardness
HB
Solution treatment 965 550 30 ≤363



718 Characteristic as below:1.workability
2.High tensile strength,endurance strength,creep strength and rupture strength at 700ºC.
3.High inoxidability at1000ºC. 4.Steady mechanical performance in the low temperature.
5.Good welding performance.

Inconel 718 Metallurgical structure
718alloy is Austenitic structure, precipitation hardening generate "γ" made it excellent mechanical performance. G rain boundary generate "δ" made it the best plasticity in the heat treatment.

Inconel 718 Corrosion resistance
718 alloy with extremely resistance to stress corrosion cracking and pitting ability in high temperature or low temperature environments, especially the inoxidability in the high temperature.


Inconel 718 Application field:The elevated temperature strength, excellent corrosion resistance and workability at 700ºC properties made it use in a wide range of high requirement environments. 1.Steam turbine 2.Liquid-fuel rocket 3.Cryogenic engineering
4.Acid environment
5.Nuclear engineering


Product Application

.jpg

Company Profile

_05

Photo of Products

Rod Tesing .jpgHot forging Rod.jpg718 Rod.jpg
