Corrosion Resistance R8.89 Density 0.3mm Pure Nickel Wire

Corrosion Resistance R8.89 Density 0.3mm Pure Nickel Wire
Corrosion Resistance R8.89 Density 0.3mm Pure Nickel Wire Corrosion Resistance R8.89 Density 0.3mm Pure Nickel Wire

Large Image :  Corrosion Resistance R8.89 Density 0.3mm Pure Nickel Wire Get Best Price

Product Details:

Place of Origin: China
Brand Name: Ohmalloy
Certification: ISO
Model Number: Ni200

Payment & Shipping Terms:

Minimum Order Quantity: 1kg
Packaging Details: Spool
Delivery Time: 5-8WORKS DAY
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000KG/WEEK
Detailed Product Description
Material: Nickel Application: Industry
Shape: Wire Color: Silver-white
Purity: 99.99%-99.9999% Size: 0.3mm
Density: 8.89 Melting Point: 1440
High Light:

0.3mm Pure Nickel Wire

,

8.89 Density Pure Nickel Wire

,

Anti Oxidation Nickel Coil

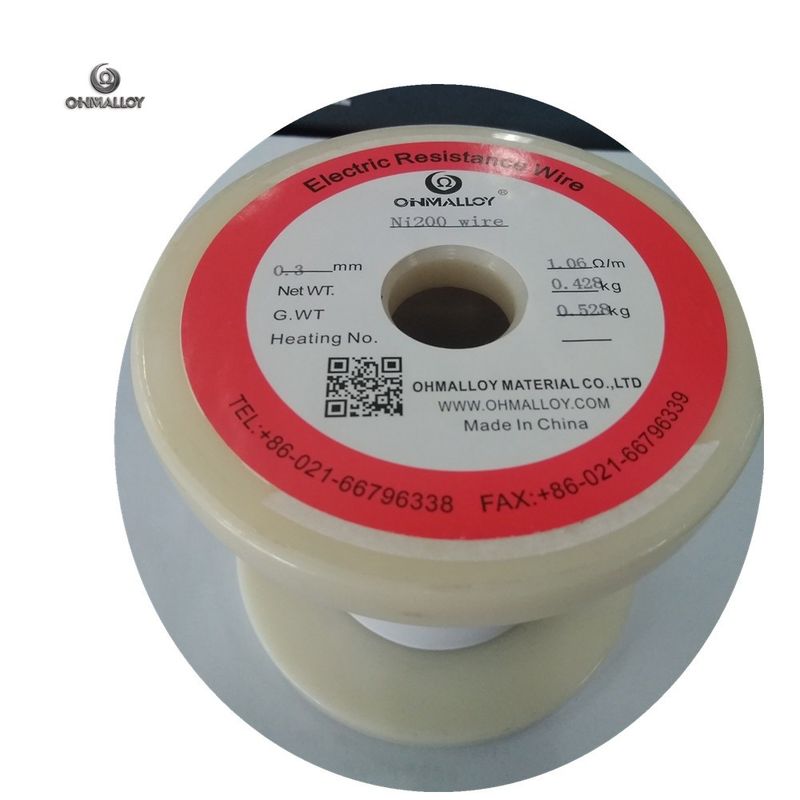

0.3mm pure nickel wire for vacuum electronic devices or the lead wire in bulb



Pure nickel wire has good strength and low resistivity at high temperature. The mechanical property of nickel is close to that of carbon steel, and its alkaline corrosion resistance is second only to silver in metal materials. A black protective film will be formed on the surface of nickel wire in concentrated alkali, which makes it very corrosion resistant. It is mainly used for electric light source material and coating. It has high surface quality and good processing performance. It can be used for making anode, spacer, electrode bracket, etc. it can also be used as guide wire in bulb. In addition, it plays a very important role in chlor alkali industry. The electric grade material has many kinds of alloy because of different service conditions. Moreover, the electrode materials are required to have low resistivity to avoid electrode overheating, high high temperature strength to reduce material wear, relatively sticky melting and volatilization under the action of arc to improve service life. Pure nickel wire is suitable for radio, electric light source, mechanical manufacturing, chemical industry, and is an important structural material in vacuum electronic devices, and can also be used as a guide wire lead in the bulb.



1). Chemical composition(%)

Grade C Si Mn P S Ni+Co Cu Fe
Nickel 200 <0.15 <0.35 <0.35   <0.01 >99.0 <0.25 <0.40



2. Physical properties





Grade

Density (g/cm3)

Melting Range

(℃)

Curie point

(℃)

Volume resistivity (μΩ.cm) Thermal conductivity (W/m. ℃)
Nickel 200 8.89 1435-1446 360 8.5(20℃) 79.3(20℃)






2.Specification

Strip:Thickness: 0.02mm to 3.0mm ,Width: 1.0mm to 250mm

Wire:Diameter: 0.025mm to 3.0mm

Sheet/Coil:Thickness:0.002-0.125mm

Width in coil:6.00mm max

In plate and straight lengths:12.00mm max



3.Usage

It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.



4.Features

Stable performance;Anti-oxidation;Corrosion resistance;High temperature stability;Excellent coil-forming ability;Uniform and beautiful surface condition without spots.



5.Packing detail

1) Coil (plastic spool) + compressed ply-wooden case + pallet

2) Coil (plastic spool) + carton + pallet



6.Products and services

1). Pass: ISO9001 certification, and SO14001cetification;

2). Fine after-sale services;

3). Small order accepted;

4). Stable properties in high temperature;

5). Fast delivery;



FAQ

1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.


2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.

3. Customer do not have express account. How will we arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.

4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.

5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.



6.How do you guarantee the quality?

We have QC who are responsible for tracking and monitoring whole production process, and we are willing to accept customer‘s testing.

7. What's our working time?
We will give you reply through email/phone Online chat tool within 24 hours. No matter working day or holidays.
