Product Details:
Payment & Shipping Terms:
|
| Shape: | Tube | Chemical Composition: | NiCrMo |
|---|---|---|---|
| Dimensions: | 3.2mm X 0.1mm | Surface: | Bright,acid White/oxidized |
| Standard: | GB/1234 2012 | Size: | As Your Required |
| High Light: | Electrode Nickel Ring,Nickel Ring Capillary Pipe,3.2x0.1 Capillary Pipe |
||

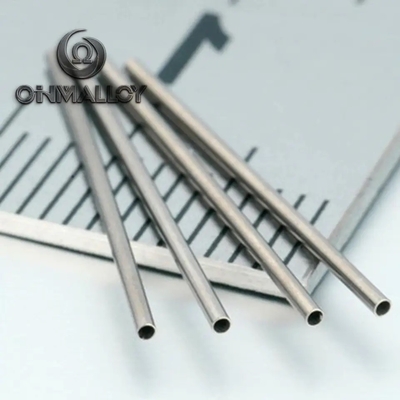

Nickel Ring / Capillary Pipe 3.2x0.1 For Electrode in UV Sterilization Lamp
Specifications of Nickel Pipe
| Item Name | Nickel pipe NI201 N4 UNS N02200 high quality pure nickel tube |
| Grade | UNS NO2200, UNS NO2201, N4, N5, N6, N7, N8 |
| Standard | ASTM B161 B163 |
| Dimension(MM) | OD1-35mm,ID0.3-34mm L:500~1500mm |
| Inspection Equipment |
Nondestructive Tester; UT Testing Detector; Tensile Tester Digital Ultrasonic Detector; Infrared Tester; HV Hardness Tester |
Applications of Nickel Pipe
1)It has high power vacuum performance,good corrosion resistance ,oxide cathode tube
can be used as a core.
2)70% Ni was used in produce stainless steel and heat resistance steel
3)15% of the Ni in the world was used as electroplating.
4)Used as catalyst in oil industry
5)Ni is one of the chemical source of energy ,the need material for battery
6)Used to make pigment,dye,ceramic,and ferrite.
Advantages of Nickel Pipe
1.Highly polished 2.Anti-corrosion 3.Good plasticity 4.Resistance to alkali
5.OEM manufacturer
Chemical compositions of Nickel Pipe
| GRADE | Element Composition/% | ||||||
| Ni+Co | Mn | Cu | Fe | C | Si | S | |
| Ni201 | ≥99.0 | ≤0.35 | ≤0.25 | ≤0.30 | ≤0.02 | ≤0.3 | ≤0.01 |
| Ni200 | ≥99.0 | ≤0.35 | ≤0.25 | ≤0.30 | ≤0.15 | ≤0.3 | ≤0.01 |
| N4 | ≥99.9 | ≤0.002 | ≤0.015 | ≤0.04 | ≤0.01 | ≤0.03 | ≤0.001 |
| N6 | ≥99.5 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.005 |
Features
1) Well mechanical and physical properties of the material quality
2) Has a high melting point., with good corrosion-resistance
3) With efficient hot intensity
