Bright Surface Fe Ni Precision Alloys With Wooden Case / Spool Package

China Bright Surface Fe Ni Precision Alloys With Wooden Case / Spool Package supplier
Bright Surface Fe Ni Precision Alloys With Wooden Case / Spool Package supplier Bright Surface Fe Ni Precision Alloys With Wooden Case / Spool Package supplier Bright Surface Fe Ni Precision Alloys With Wooden Case / Spool Package supplier

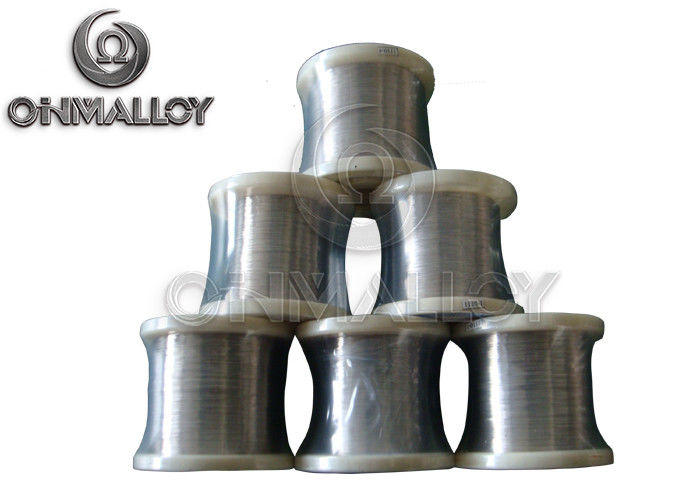

Large Image :  Bright Surface Fe Ni Precision Alloys With Wooden Case / Spool Package

Product Details:

Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: SGS, ISO
Model Number: 4J29

Payment & Shipping Terms:

Minimum Order Quantity: 30 KG
Price: negotiable
Packaging Details: Spool + Waterproof paper + Wooden case
Delivery Time: 25-35 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 25000 KG per month
Contact Now
Detailed Product Description
Material: Fe Ni Alloy Condition: Soft
Wire Diameter Range: 0.1mm ~ 9.0mm Package: Spool, Coil, Wooden Case
Surface: Bright Density: 8.2 G/cm3
Application: Sealing Material For Glass Annealing Treatment: In Vacuum Furnace
Elongation: More Than 25% Temperature Factor Of Resistivity(20℃~100℃)X10-5/℃: 3.7~3.9

Bright Surface Fe Ni Precision Alloys With Wooden Case / Spool Package



OHMALLOY

 sealing glass elements of vacuum Relays



OhmAlloy-4J29 (Expansion alloy)
(Common Name: Kovar, Nilo K, KV-1, Dilver Po, Vacon 12)



OhmAlloy-4J29 also known as Kovar alloy. it was invented to meet the need for a reliable glass-to-metal seal, which is required in electronic devices such as light bulbs, vacuum tubes, cathode ray tubes, and in vacuum systems in chemistry and other scientific research. Most metals cannot seal to glass because their coefficient of thermal expansion is not the same as glass, so as the joint cools after fabrication the stresses due to the differential expansion rates of the glass and metal cause the joint to crack.



Kovar is a nickel–cobalt ferrous alloy compositionally identical to Fernico, designed to be compatible with the thermal expansion characteristics of borosilicate glass (~5 × 10−6 /K between 30 and 200 °C, to ~10 × 10−6 /K at 800 °C) in order to allow direct mechanical connections over a range of temperatures. It finds application in electroplated conductors entering glass envelopes of electronic parts such as vacuum tubes (valves), X-ray and microwave tubes and some lightbulbs.

The name Kovar is often used as a general term for Fe–Ni alloys with these particular thermal expansion properties. Note the related particular Fe–Ni alloy Invar which exhibits minimum thermal expansion.



OhmAlloy-4J29was invented to meet the need for a reliable glass-to-metal seal, which is required in electronic devices such as light bulbs, vacuum tubes, cathode ray tubes, and in vacuum systems in chemistry and other scientific research. Most metals cannot seal to glass because their coefficient of thermal expansion is not the same as glass, so as the joint cools after fabrication the stresses due to the differential expansion rates of the glass and metal cause the joint to crack.





OhmAlloy-4J29 not only has thermal expansion similar to glass, but its nonlinear thermal expansion curve can often be made to match a glass, thus allowing the joint to tolerate a wide temperature range. Chemically, it bonds to glass via the intermediate oxide layer of nickel oxide and cobalt oxide; the proportion of iron oxide is low due to its reduction with cobalt. The bond strength is highly dependent on the oxide layer thickness and character. The presence of cobalt makes the oxide layer easier to melt and dissolve in the molten glass. A grey, grey-blue or grey-brown color indicates a good seal. A metallic color indicates lack of oxide, while black color indicates overly oxidized metal, in both cases leading to a weak joint.



Mainly used in electric vacuum components and emission control, shock tube, igniting tube, glass magnetron, transistors, seal plug, relay, integrated circuits lead, chassis, brackets and other housing sealing.





Normal composition%

Ni 28.5~29.5 Fe Bal. Co 16.8~17.8 Si ≤0.3
Mo ≤0.2 Cu ≤0.2 Cr ≤0.2 Mn ≤0.5
C ≤0.03 P ≤0.02 S ≤0.02





Tensile Strength, MPa

Code of condition Condition Wire Strip
R Soft ≤585 ≤570
1/4I 1/4 Hard 585~725 520~630
1/2I 1/2 Hard 655~795 590~700
3/4I 3/4 Hard 725~860 600~770
I Hard ≥850 ≥700



Typical Physical properties

Density (g/cm3) 8.2
Electrical resistivity at 20(Ωmm2/m) 0.48
Temperature factor of resistivity(20~100)X10-5/ 3.7~3.9
Curie point Tc/ 430
Elastic Modulus, E/ Gpa 138



















The heat treatment process

Annealing for stress relief Heated to 470~540℃ and hold 1~2 h. Cold down
annealing In vacuum heated to 750~900℃
Holding time 14 min~1h.
Cooling rate No more than 10 ℃/min cooled to 200 ℃

Bright Surface Fe Ni Precision Alloys With Wooden Case / Spool Package



Coefficient of expansion

θ/℃ α1/10-6-1 θ/℃ α1/10-6-1
20~60 7.8 20~500 6.2
20~100 6.4 20~550 7.1
20~200 5.9 20~600 7.8
20~300 5.3 20~700 9.2
20~400 5.1 20~800 10.2
20~450 5.3 20~900 11.4





















Thermal conductivity

θ/℃ 100 200 300 400 500
λ/ W/(m*℃) 20.6 21.5 22.7 23.7 25.4



Style of supply



Alloys Name Type Dimension
OhmAlloy-4J29 Wire D= 0.1~8mm
OhmAlloy-4J29 Strip W= 5~250mm T= 0.1mm
OhmAlloy-4J29 Foil W= 10~100mm T= 0.01~0.1mm
OhmAlloy-4J29 Bar Dia= 8~100mm

L= 50~1000mm
