1Cr13Al4 Electric Heating Strip Bright Surface 0.6mm x 60mm 630Mpa Tensile Strength

China 1Cr13Al4 Electric Heating Strip Bright Surface 0.6mm x 60mm 630Mpa Tensile Strength supplier

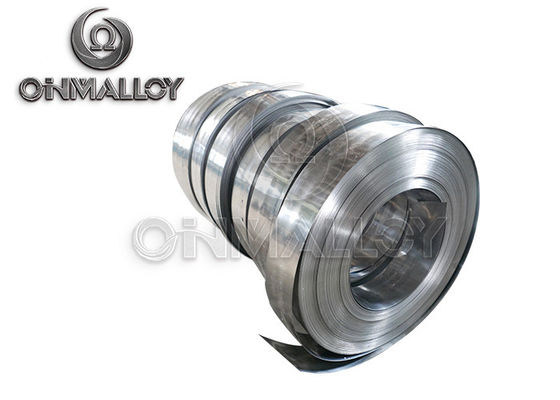

Large Image :  1Cr13Al4 Electric Heating Strip Bright Surface 0.6mm x 60mm 630Mpa Tensile Strength

Product Details:

Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO,SGS
Model Number: 134S06X60BS

Payment & Shipping Terms:

Minimum Order Quantity: 5kg
Price: negotiable
Packaging Details: Plastic packing inside, wooden box outside , choose the suitable packing, Alos it can be customized by the clients' demand.
Payment Terms: T/T, Western Union, L/C
Supply Ability: 80000Kg/Week
Contact Now
Detailed Product Description
Resistivity: 1.25μΩ.m Shape: Strip
Surface: Bright Application: Dynamic Breaking Resistor
Density: 7.4 Tensile Strength: 630Mpa
Working Temperature: 950

1Cr13Al4 Electric Heating Strip Bright Surface 0.6mm x 60mm 630Mpa Tensile Strength



OhmAlloy125
(Common Name:1Cr13Al4,Alkrothal 14,Alloy 750,Ohmalloy 40,Alferon 902,Alchrome 750,Resistohm 125,Aluchrom W,750 Alloy,Stablohm 750.)



    OhmAlloy125 is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by Stable performance,

Anti-oxidation,Corrosion resistance,High temperature stability,Excellent coil-forming ability,Uniform and beautiful surface condition without spots.It is suitable for use at temperatures up to 950°C.



    Typical applications for OhmAlloy125 are used in electric locomotive, diesel locomotive,metro vehicle and high speed moving car etc brake system brake resistor,electric ceramic cooktop,industrial furnace.



Normal composition%

C P S Mn Si Cr Ni Al Fe Other
Max
0.12 0.025 0.025 0.70 Max 1.0 12.0~15.0 Max 0.60 4.0~6.0 Bal. -



Typical Mechanical properties(1.0mm)

Yield strength Tensile Strength Elongation
Mpa Mpa %
455 630 22



Typical Physical properties

Density (g/cm3) 7.40
Electrical resistivity at 20℃(Ωmm2/m) 1.25
Conductivity coefficient at 20℃ (WmK) 15



Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃ 15.4





Specific heat capacity
Temperature 20℃
J/gK 0.49



Melting point (℃) 1450
Max continuous operating temperature in air (℃) 950
Magnetic properties non-magnetic



Temperature Factor of Electrical Resistivity

20℃ 100℃ 200℃ 300℃ 400℃ 500℃ 600℃ 700℃ 800℃ 900℃ 1000℃ 1100℃ 1200℃ 1300℃
1 1.005 1.014 1.028 1.044 1.064 1.090 1.120 1.132 1.142 1.150 - - -



Style of supply

Alloys Name Type Dimension
OhmAlloy125W Wire D=0.03mm~8mm
OhmAlloy125R Ribbon W=0.4~40 T=0.03~2.9mm
OhmAlloy125S Strip W=8~250mm T=0.1~3.0
OhmAlloy125F Foil W=6~120mm T=0.003~0.1
OhmAlloy125B Bar Dia=8~100mm L=50~1000
