| Conductor: | +Chromel, -Constantan | Conductor Dia: | 3.2 Mm AWG8 |
|---|---|---|---|
| Jacket Material: | PFA/PVC | Color: | Conforms To ANSI, IEC, JIS |
| Package: | 100m/roll | Standard: | ANSI96.1 Or IEC 584-2 |
| Insulation Material: | PVC/PFA | ||
| High Light: | k type thermocouple cable,thermocouple extension wire |
||

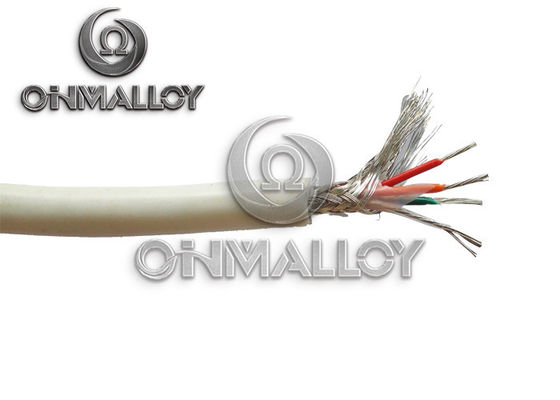

PFA/PVC Insulated and Sheathed E Type Thermocouple Extension Wire
TYPE E (CHROMEL vs Constantan) may be used in oxidizing, inert or dry reducing atmospheres, or for short periods of time under vacuum. Must be protected from sulfurous and marginally oxidizingatmospheres. Produces the highest EMF per degree o any standardized thermocouple.
1. Chemical Composition
| Material | Chemical composition (%) | ||||
| Ni | Cr | Cu | Mn | Al | |
| EP(Chromel) | 90 | 10 | |||
| EN(Constantan) | 45 | 55 | |||
2. Physical properties and Mechnical properties
|
Material |
Density(g/cm3) |
Melting point℃) |
Tensile Strength(Mpa) |
Volume resistivity(μΩ.cm) |
Elongation rate (%) |
| EP(Chromel) | 8.5 | 1427 | >490 | 70.6(20℃) | >25 |
| EN(Constantan) | 8.8 | 1220 | >390 | 49.0(20℃) | >25 |
3. EMF Value range at different temperature
| Material | EMF value Vs Pt(μV) | |||||
| 100℃ | 200℃ | 300℃ | 400℃ | 500℃ | 600℃ | |
| KP(Chromel) | 2769~2859 | 5921~6019 | 9272~9374 | 12709~12819 | 16144~16282 | 19537~19699 |
| EN(Constantan) | 3499~3561 | 7389~7513 | 11647~11779 | 16109~16255 | 20699~20885 | 25362~25588 |
| EMF value Vs Pt(μV) | ||||
| 700℃ | 800℃ | 900℃ | 1000℃ | 1100℃ |
| 22859~23043 | 26102~26308 | |||
| 30030~30292 | 34664~34960 | |||
