Inconel 601 Rod High Temp Alloys UNS N06601 Werkstoff Nr.2.4851 High Temperature Alloy

China Inconel 601 Rod High Temp Alloys UNS N06601 Werkstoff Nr.2.4851 High Temperature Alloy supplier
Inconel 601 Rod High Temp Alloys UNS N06601 Werkstoff Nr.2.4851 High Temperature Alloy supplier Inconel 601 Rod High Temp Alloys UNS N06601 Werkstoff Nr.2.4851 High Temperature Alloy supplier

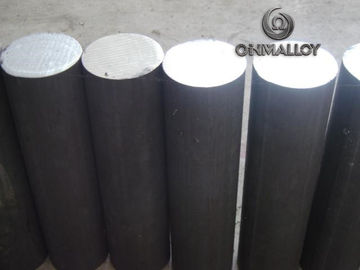

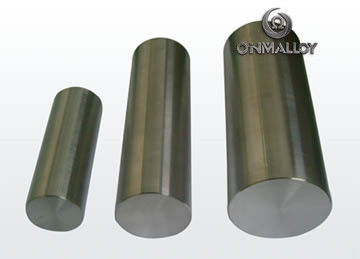

Large Image :  Inconel 601 Rod High Temp Alloys UNS N06601 Werkstoff Nr.2.4851 High Temperature Alloy

Product Details:

Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO ROHS
Model Number: 601

Payment & Shipping Terms:

Minimum Order Quantity: 20kg
Price: negotiable
Packaging Details: IN Wooden box
Delivery Time: 7-20days after your deposit received
Payment Terms: Western Union, L/C, T/T
Supply Ability: 20000T/Year
Contact Now
Detailed Product Description
UNS:: NO6601 Surface: Bright Or Oxidation
Werkstoff Nr.: 2.4851 Power Or Not: Not
Type: Ni-Cr-Fe Alloy Craft: Hot Rolling And Cold Rolling
Shape: Rod,

Inconel601 Rod (5mm~80mm) , UNS N06601 , Werkstoff Nr.2.4851 High temperature alloy



1.Description

It is face-centered cubic lattice structure for use at temperature up to 1370°C (2500°F).The Nickel-Chromium alloy is characterized by excellent inoxidability in the high temperature and sulfur atmosphere,good resistance to carbonizing.It has high creep rupture strength since it limits the carbon content and grain size, so recommend to use for above 500°C environment.



2.Features

Excellent inoxidability in the high temperature(the temperature can be up to 1180°C),good resistance to carbonizing,good inoxidabilitiy in sulfur atmosphere,good mechanical property,good resistance to stress corrosion cracking and high spalling resistance.



Chemical Content(%)

Alloy % Ni Cr Fe C Mn Si Cu Al P S

Inconel

601

Min. 58 21           1.0
Max. 63 25 Bal. 0.1 1.5 0.5 1.0 1.7 0.02 0.015




Mechanical Properties

Aolly status Tensile strength
Rm N/mm²
Yield strength
R P 0.2N/mm²
Elongation
A 5 %
Brinell hardness
HB
Density
g/cm³

Melting Point

°C

Annealing
treatment
650 300 30 - 8.1 1320-1370
Annealing
treatment
600 240 30 ≤220 8.1 1320-1370




3.Usage

It is widely used in following field:

1)Petrochemical processing:separate tank of ammonia reforming and catalytic support grid of nitric acid producing.

2)Industrial furnaces:steel shares at annealing and radiation control, high-speed gas burners, Industrial furnace silk.

3)Gas turbine components:exhaust system parts,solid waste incinerator's combustion chamber,channel support and soot dealing parts,detoxification exhaust system components.
4)Heat treating equipment:the tray,basket and tool clamp in the heat treatment factory,oxygen re-heater.



4.Specification

Round Wire:0.03mm~10mm

Flat Wire(Ribbon):thickness 0.1mm~1.0mm,width 0.5mm~5.0mm
Strip:thickness 0.2mm~3.0mm,width 0.5mm~200mm

Other sizes are available upon your request.
