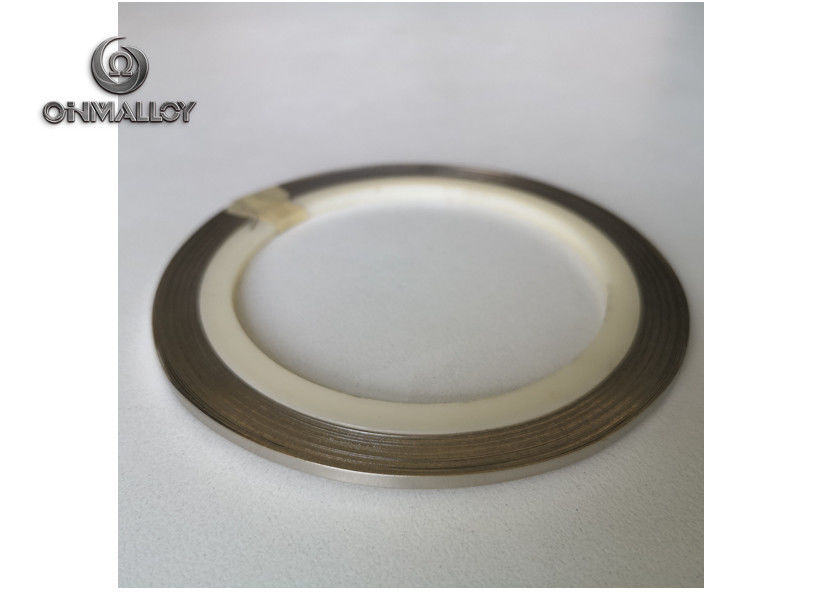

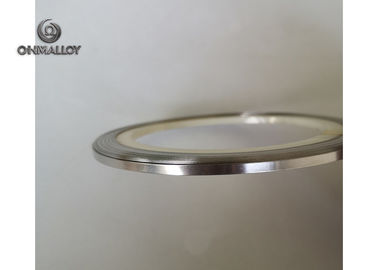

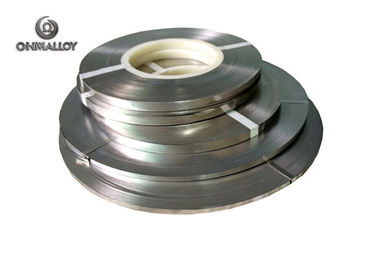

Vacuum Furnace Ni201 Pure Nickel Strip 8mm Width Bright Surface

I'm Online Chat Now
Certification
China Ohmalloy Material Co.,Ltd certification
China Ohmalloy Material Co.,Ltd certification
I search for Nichrome plate long time, and successfully bought it from Ohmalloy material. OHMALLOY provide real good service in alloy service and can always help me in finding the correct resistance alloy.

—— Mike Harness

OHMALLOY can provie me only 1kg Kovar alloy wire 1.0mm with short time, that is really amazing. Thanks

—— Janey

Really professional in thermocouple wire and cable, what i want just can get from OHMALLOY

—— Chris

Enamelled Constantan 0.08mm, i never expect to get only 2kg of it. But OHMALLOY supply it to me with good quality. God Jesus! Such a reliable supplier from china

—— Aaron

Vacuum Furnace Ni201 Pure Nickel Strip 8mm Width Bright Surface

Vacuum Furnace Ni201 Pure Nickel Strip 8mm Width Bright Surface
Vacuum Furnace Ni201 Pure Nickel Strip 8mm Width Bright Surface Vacuum Furnace Ni201 Pure Nickel Strip 8mm Width Bright Surface Vacuum Furnace Ni201 Pure Nickel Strip 8mm Width Bright Surface Vacuum Furnace Ni201 Pure Nickel Strip 8mm Width Bright Surface

Large Image :  Vacuum Furnace Ni201 Pure Nickel Strip 8mm Width Bright Surface Get Best Price

Product Details:
Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: SGS, ISO, RoHS
Model Number: Ni200/Ni201
Payment & Shipping Terms:
Minimum Order Quantity: 5 KG
Price: negotiable
Packaging Details: Spool or Coil + Waterproof paper + Wooden case
Delivery Time: 5 working days
Payment Terms: L/C, D/A, D/P, T/T,
Supply Ability: 500 tons per month
Detailed Product Description
Material: 99.6% Nickel Application: Nickel Connector
Annealing Treatment: In Vacuum Furnace Condition: Soft,bright
Thickness: 0.15mm Width: 8mm
Surface: Bright Density: 8.9 G/cm3
Package: Spool, Coil, Wooden Case
High Light:

Ni201 Pure Nickel Strip

,

8mm Width Pure Nickel Strip

,

Bright Surface Pure Nickel Strip

0.15mm*8mm Ni200 /Ni201 Pure Nickel Strip for Nickel Connector​

1. Description

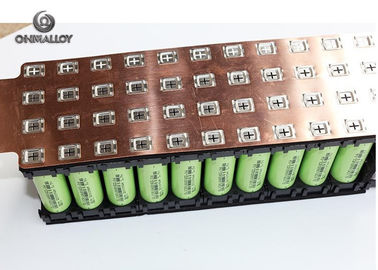

Nickel wire/strip are made by advanced vacuum melting process.and by forging,rolling,annealing and drawing. It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.

Nickel 200
1). Chemical composition(%)

Grade C Si Mn P S Ni+Co Cu Fe
Nickel 200 <0.15 <0.35 <0.35   <0.01 >99.5 <0.25 <0.40


2. Physical properties


Grade
Density (g/cm3) Melting Range
(ºC)
Curie point
(ºC)
Volume resistivity (μΩ.cm) Thermal conductivity (W/m. ºC)
Nickel 200 8.89 1435-1446 360 8.5(20ºC) 79.3(20ºC)


3). Mechnical properties


FORM

Yield Strength (Mpa)

Tensile Strength (Mpa)

Elongation (%)

Hardness (RB)

Bar
Hot-finished 105-310 60-85 55-35 45-80
Cold-drawn,annealed 105-210 55-75 55-40 75-98

Strip
Hard 480-795 620-895 15-2 >90
Annealed 105-210 380-580 55-40 <70

Wire
Annealed 105-345 380-580 50-30
No.1 Temper 275-520 485-655 40-20
Spring Temper 725-930 860-1000 15-2


2. Specification
Strip/sheet:Thickness: 0.05mm to 5.0mm ,Width: 1.0mm to 250mm


Vacuum Furnace Ni201 Pure Nickel Strip 8mm Width Bright Surface 0Vacuum Furnace Ni201 Pure Nickel Strip 8mm Width Bright Surface 1Vacuum Furnace Ni201 Pure Nickel Strip 8mm Width Bright Surface 2Vacuum Furnace Ni201 Pure Nickel Strip 8mm Width Bright Surface 3


Ohmalloy Material Co.,Ltd is a high-tech enterprise which specialized in making all kinds of alloy such as high resistance alloy, low-resistance copper nickel alloy, precision alloy, FeCrAl alloy and thermocouple Alloy.



Ohmalloy Material Co.,Ltd have a full production line from melting, surface cleaning, rolling and slitting, full set of testing machine and can meet all kinds of technical requirement from customer. Our product is widely used in heating equipment, big steel mill, mineral, electrical equipment, food machinery, auto industry, aerospace industry. Our product not only is popular in domestic market, but also been exported to all over the world.



Our company aims to be the best-quality alloy producer in the world. We insist on developing the more advanced alloy strip technology, to serve all the customer, improve people's living level, make a more green earth in the future.
