| Name: | 1/4 Hard Pure Nickel Strip Foil Ribbon For Li-lithium Battery | Material Purity: | >99.9% |
|---|---|---|---|
| State: | 1/4Hard(110-150HV) | Size: | 0.02-8mm(Thickness)0.2-250mm(Width) |
| Package: | Paper+Plywood Case | Usage: | Li-lithium Battery Pack |
| Edge Handle: | Cut Edge | ||
| High Light: | 1/4 Hard Pure Nickel Strip,Lithium Battery Pure Nickel Strip,250mm Pure Nickel Strip |
||

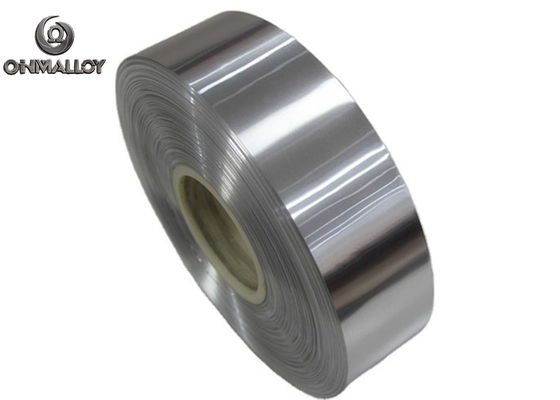

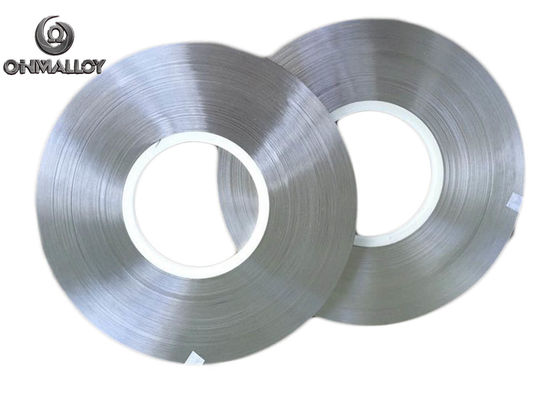

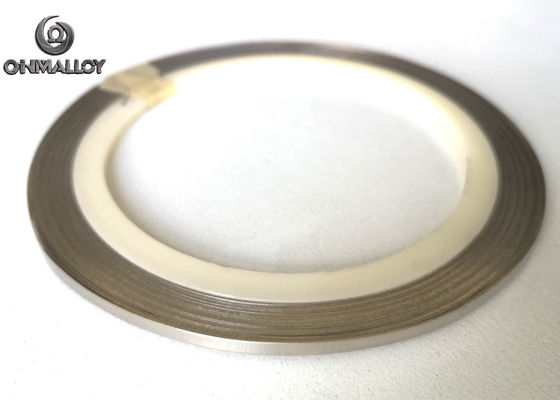

1/4 Hard Pure Nickel Strip Foil Ribbon For Li-lithium Battery Fast Delivery
1). Chemical composition(%)
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
| N6 | 99.6 | 0.1 | 0.1 | 0.05 | 0.1 | 0.1 | 0.005 | 0.002 | 0.1 |
2). Physical properties
|
Grade |
Density (g/cm3) |
Melting Range (℃) |
Curie point (℃) |
Volume resistivity (μΩ.cm) | Thermal conductivity (W/m. ℃) |
| Nickel 200 | 8.89 | 1435-1446 | 360 | 8.5(20℃) | 79.3(20℃) |
3). Mechnical properties
Strip State Reference
| Hard(>190HV) | 1/2Hard(140-170HV) | 1/4Hard(110-150HV) | Soft(70-110HV) |
4).Usage
It is used in electric apparatus, lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.

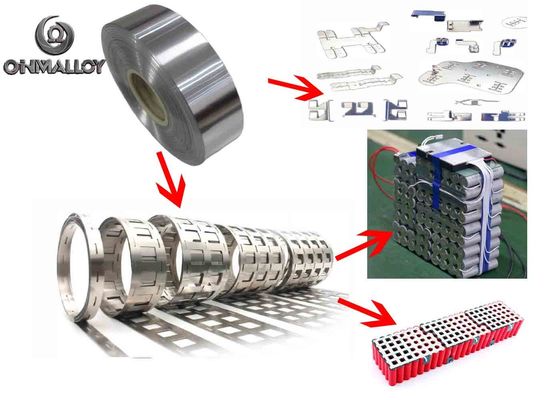

Formed Nickel strip
Formed nickel strip are mainly used in solar energy street lamps, energy storage battery packs, communications base station backup power and small power battery packs and other fields.
Metal stampings and Nickel sheet
Power tools, garden tools battery pack precision metal stamping parts, battery connector, copper sheet, and metal terminal and various battery special connector.
The pure Nickel strip is made by advanced vacuum melting process.and by forging,rolling,annealing and drawing. It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamps.
5).Package
