| Chemical Composition: | 0Cr25Al5Mo4 | Application: | Arc Flame Application |
|---|---|---|---|
| Shape: | Wire | Dimensions: | 2.0mm |
| Color: | Silvery White | Standard: | ASTM,ASTM ASME YB HB BJB GB |
| High Light: | 0Cr25Al5Mo4 Thermal Spray Wire,Thermal Spray Wire 2.0mm,Arc Flame Thermal Spray Wire |
||

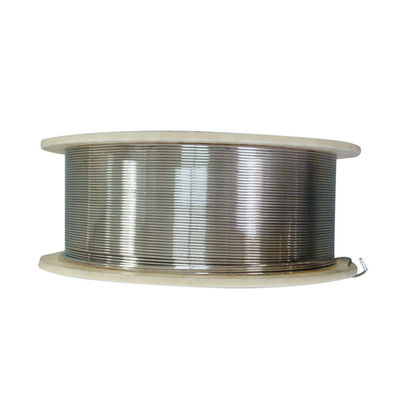

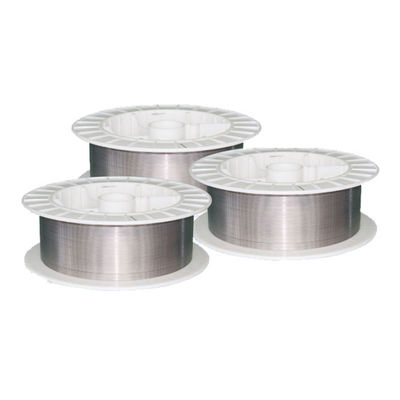

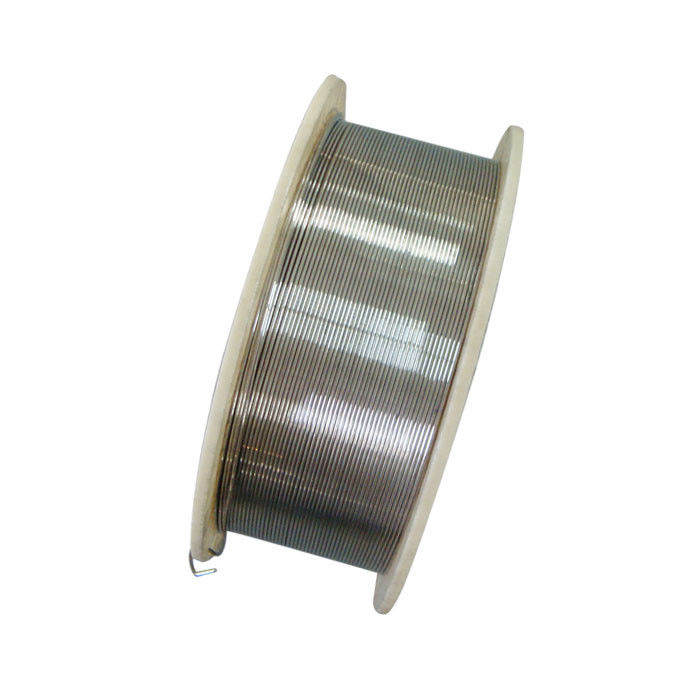

0Cr25Al5Mo4 FeCrAl Aluchrom-O Thermal Spray Wire 2.0mm High Pressure Spraying Arc Flame Application
OhmAlloy142B is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature. It is suitable for use at temperatures up to 1250°C.
Typical applications for OhmAlloy142B are used in electric ceramic cooktop,industrial furnace,heaters.
Normal compostion%
|
C |
P |
S |
Mn |
Si |
Cr |
Ni |
Al |
Fe |
Other |
|
Max |
|||||||||
|
0.06 |
0.025 |
0.025 |
0.70 |
Max 0.60 |
23.0~26.0 |
Max 0.60 |
4.5~6.5 |
Bal. |
|
Typical Mechanical properties
|
Yield strength |
Tensile Strength |
Elongation |
|
Mpa |
Mpa |
% |
|
500 |
700 |
23 |
Typical Physical properties
|
Density (g/cm3) |
7.10 |
|
Electrical resistivity at 20℃(Ωmm2/m) |
1.42 |
|
Conductivity coefficient at 20℃ (WmK) |
13 |
|
Coefficient of thermal expansion |
|
|
Temperature |
Coefficient of Thermal Expansion x10-6/℃ |
|
20 ℃- 1000℃ |
15 |
|
Specific heat capacity |
|
|
Temperature |
20℃ |
|
J/gK |
0.46 |
|
Melting point (℃) |
1500 |
|
Max continuous operating temperature in air (℃) |
1250 |
|
Magnetic properties |
non-magnetic |
Temperature Factor of Electrical Resistivity
|
20℃ |
100℃ |
200℃ |
300℃ |
400℃ |
500℃ |
700℃ |
800℃ |
900℃ |
1000℃ |
1100℃ |
1200℃ |
|
1 |
1.002 |
1.005 |
1.008 |
1.013 |
1.021 |
1.038 |
1.040 |
1.042 |
1.044 |
1.046 |
1.047 |
Style of supply
|
Alloys Name |
Type |
Dimension |
|
|
OhmAlloy142BW |
Wire |
D=0.03mm~8mm |
|
|
OhmAlloy142BR |
Ribbon |
W=0.4~40 |
T=0.03~2.9mm |
|
OhmAlloy142BS |
Strip |
W=8~250mm |
T=0.1~3.0 |
|
OhmAlloy142BF |
Foil |
W=6~120mm |
T=0.003~0.1 |
|
OhmAlloy142BB |
Bar |
Dia=8~100mm |
L=50~1000 |

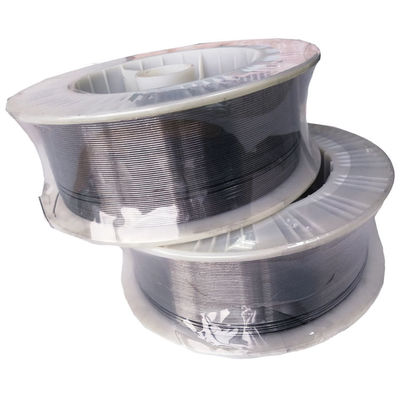

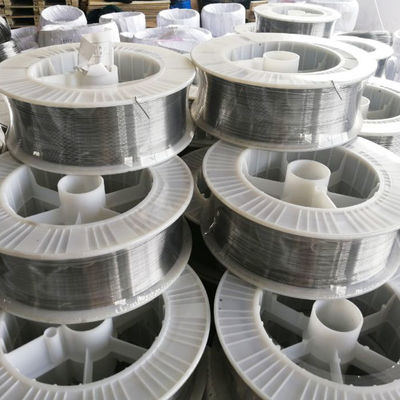

Package
