Product Details:
Payment & Shipping Terms:
|
| Conductor: | Pure Nickel Strip(N6) | Item No: | N6S015X27B |
|---|---|---|---|
| Condition: | Bright,soft | Hardness: | 70-110HV |
| Density: | 8.9g/cm3 | Package: | Wooden Case |
| Weight: | About 30kgs/coil | Standard: | GB/T 2072-2007 |
| High Light: | 110HV nickel plated strip,2p 21700 nickel plated strip,20mm battery welding strip |
||

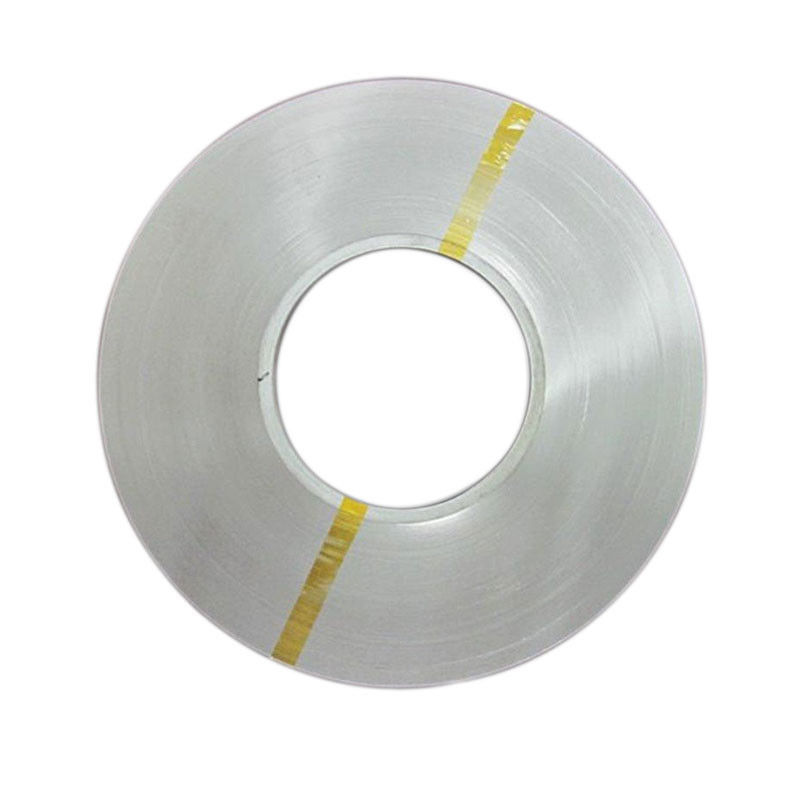

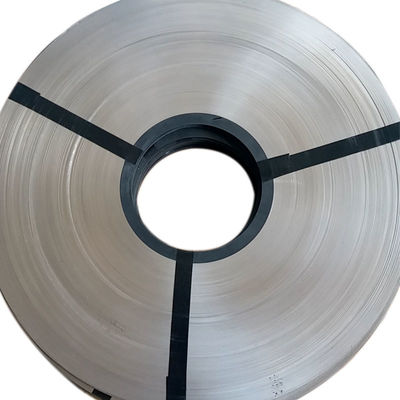

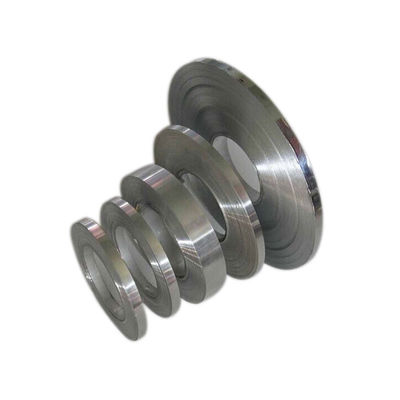

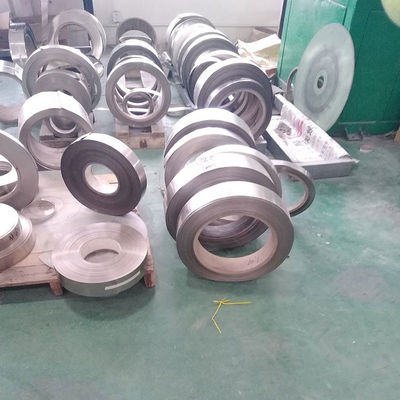

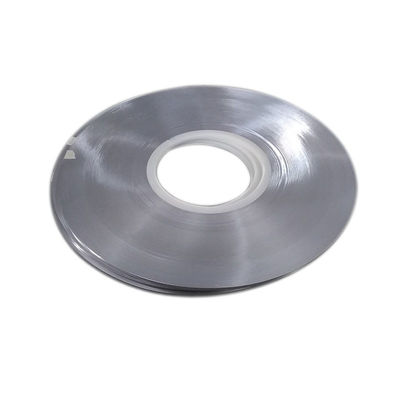

0.15mm*20mm pure nickel strip for battery spot welding nickel strip 2p 21700 nickel plated strip
Common Name: N6, N4, Pure Nickel, Nickel 200
OHMALLOY200 are made by advanced vacuum melting process. And by forging, rolling, annealing and drawing. It is used in electric apparatus, lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp
Chemical composition (%)
| Grade | C | Si | Mn | P | S | Ni+Co | Cu | Fe |
| Nickel 200 | <0.15 | <0.35 | <0.35 | <0.01 | >99.0 | <0.25 | <0.40 |
Physical properties
| Grade |
Density (g/cm3) |
Melting Range (℃) |
Curie point (℃) |
Volume resistivity (μΩ.cm) |
Thermal conductivity (W/m. ℃) |
| Nickel 200 | 8.89 | 1435-1446 | 360 | 8.5(20℃) | 79.3(20℃) |
Mechnical properties
| FORM | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) | Hardness (RB) | |
| Bar | Hot-finished | 105-310 | 60-85 | 55-35 | 45-80 |
| Cold-drawn, annealed | 105-210 | 55-75 | 55-40 | 75-98 | |
| Strip | Hard | 480-795 | 620-895 | 15-2 | >90 |
| Annealed | 105-210 | 380-580 | 55-40 | <70 | |
| Wire | Annealed | 105-345 | 380-580 | 50-30 | |
| No.1 Temper | 275-520 | 485-655 | 40-20 | ||
| Spring Temper | 725-930 | 860-1000 | 15-2 | ||
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
