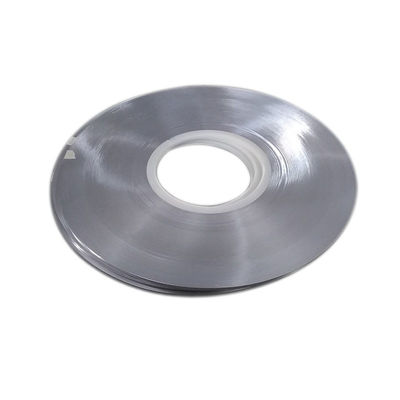

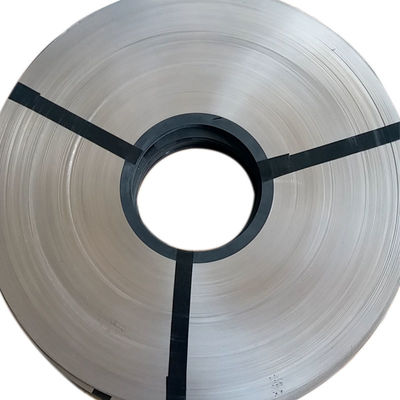

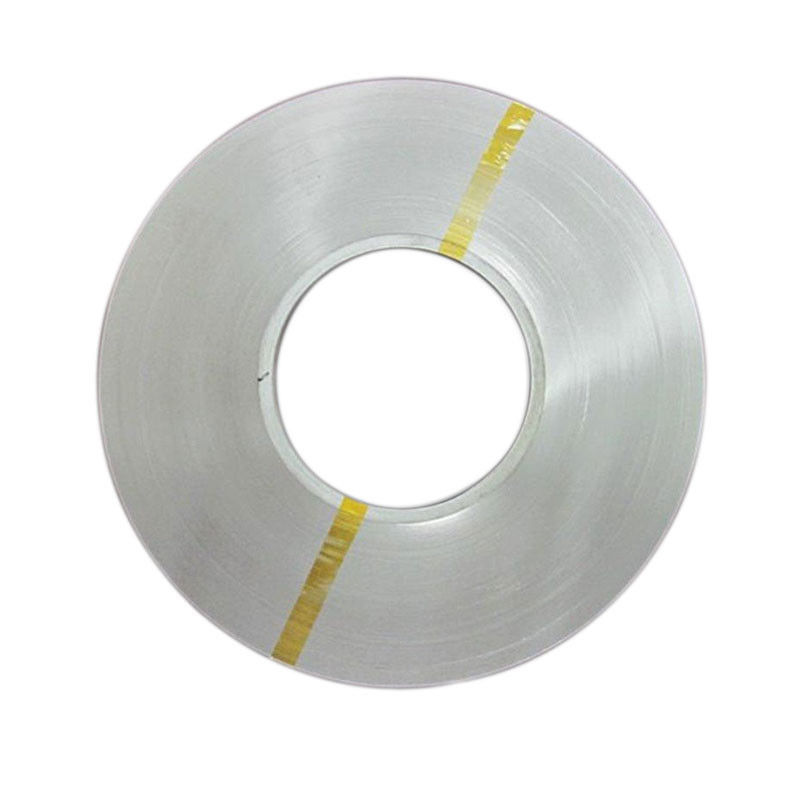

Battery Spot Welding Annealing Nickel Plated Strip 0.15mm*20mm

Battery Spot Welding Annealing Nickel Plated Strip 0.15mm*20mm
Battery Spot Welding Annealing Nickel Plated Strip 0.15mm*20mm Battery Spot Welding Annealing Nickel Plated Strip 0.15mm*20mm Battery Spot Welding Annealing Nickel Plated Strip 0.15mm*20mm

Large Image :  Battery Spot Welding Annealing Nickel Plated Strip 0.15mm*20mm Get Best Price

Product Details:
Place of Origin: Zhejiang
Brand Name: OHMALLOY/OEM
Certification: ISO9001:2015
Model Number: SP-pure nickel
Payment & Shipping Terms:
Minimum Order Quantity: 5KG
Packaging Details: wooden case
Delivery Time: 3-18 working days after payment confirmed
Payment Terms: L/C, T/T, ,Paypal
Supply Ability: 30000 kg per Month
Detailed Product Description
Conductor: Pure Nickel Strip(N6) Item No: N6S015X27B
Condition: Bright,soft Hardness: 70-110HV
Density: 8.9g/cm3 Package: Wooden Case
Weight: About 30kgs/coil Standard: GB/T 2072-2007
High Light:

Battery Spot Welding Nickel Strip

,

Annealing Nickel Plated Strip

,

110HV Nickel Plated Strip

0.15mm*20mm pure nickel strip for battery spot welding nickel strip 2p 21700 nickel plated strip


OHMALLOY 200

Common Name: N6, N4, Pure Nickel, Nickel 200

OHMALLOY200 are made by advanced vacuum melting process. And by forging, rolling, annealing and drawing. It is used in electric apparatus, lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp


Chemical Content

Grade C Si Mn P S Ni+Co Cu Fe
Nickel 200 <0.15 <0.35 <0.35   <0.01 >99.0 <0.25 <0.40


Physical properties

Grade

Density

(g/cm3)

Melting Range

(℃)

Curie point

(℃)

Volume resistivity (μΩ.cm)

Thermal conductivity

(W/m. ℃)

Nickel 200 8.89 1435-1446 360 8.5(20℃) 79.3(20℃)



Mechnical properties

FORM Yield Strength (Mpa) Tensile Strength (Mpa) Elongation (%) Hardness (RB)
Bar Hot-finished 105-310 60-85 55-35 45-80
Cold-drawn, annealed 105-210 55-75 55-40 75-98
Strip Hard 480-795 620-895 15-2 >90
Annealed 105-210 380-580 55-40 <70
Wire Annealed 105-345 380-580 50-30
No.1 Temper 275-520 485-655 40-20
Spring Temper 725-930 860-1000 15-2



Specification

Strip: Thickness: 0.02mm to 3.0mm, Width: 1.0mm to 250mm

Wire: Diameter: 0.025mm to 3.0mm

Sheet/Coil: Thickness:0.002-0.125mm

Width in coil:6.00mm max

In plate and straight lengths:12.00mm max



Usage

It is used in electric apparatus, lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.



Features

The pure nickel strip has excellent mechanical properties, high corrosion resistance in different environments, and magnetic feature,high heat transfer, high conductivity, low gas volume and low vapor pressure. It also has good spot welding properties and high tensile strength.

So when use the pure nickel strip to make battery pack,the spot welding property is good, the internal resistance is lower, the discharge time of the battery pack is durable,the battery spot welding is stronger.



Packing detail

1) Coil (plastic spool) + compressed ply-wooden case + pallet

2) Coil (plastic spool) + carton + pallet



Products and services

1). Pass: ISO9001 certification, and SO14001cetification;

2). Fine after-sale services;

3). Small order accepted;

4). Stable properties in high temperature;

5). Fast delivery;

Dimensions for 18650 Nickel Strip

Type Dimension
(mm)
Cell
Spacing
(mm)
Width
(mm)
Dimension of
the square
hole(mm)
Length per
KG(M)
Type of battery
pack
With
holder
Withuout
holder
1P 18650 Nickel strip 0.15*7*18.4 18.4 7 / 112.6   YES
0.15*7*19 19 7 / 112.1 YES
0.15*7*19.5 19.5 7 /   YES
0.15*7*20.25 20.25 7 / 111.9 YES
2P 18650 Nickel strip 0.15*26*19(13.5*13.5) 19 26 13.5*13.5 41.4 YES
0.15*27*19.5(12*14.5) 19.5 27 12*14.5 42.9 YES
0.15*27*19.75(12.5*12.5) 19.75 27 12.5*12.5 41.2 YES
0.15*27*20.25(13.5*13.5) 20.25 27 13.5*13.5 42.9 YES
2P 18650 Nickel strip 0.15*25.5*18.4(11*12.5) 18.4 25.5 11*12.5 42.9   YES
Dislocation 2P 18650
Nickel strip
0.15*25.5*18.4(8*9.5) 18.4 25.5 8*9.5 36.1   YES
Dislocation 2P 18650
Nickel strip
0.15*25.5*19.5(8*9.5) 19.5 25.5 8*9.5 33.8 YES
3P 18650 Nickel strip 0.15*44.5*18.4(11*12.5) 18.4 44.5 11*12.5 24   YES
0.15*45*19(12*12) 19 45 12*12 25.5 YES
0.15*47.5*20.15(12.65*12.65) 20.15 47.5 12.65*12.65 24 YES
0.15*47.5*20.25(13.5*13.5) 20.25 47.5 13.5*13.5 25.7 YES
4P 18650 Nickel strip 0.15*63*18.5(11*12.5) 18.5 63 11*12.5 18.9   YES
0.15*64*19(12*12) 19 64 12*12 18.4 YES
0.15*67.95*20.15(12.65*12.65) 20.15 67.95 12.65*12.65 17.2 YES
0.15*67.7*20.25(13.5*13.5) 20.25 67.7 13.5*13.5 18.7 YES
5P 18650 Nickel strip 0.15*83*19(12*12) 19 83 12*12 14.4 YES
0.15*88.1*20.15(12.65*12.65) 20.15 88.1 12.65*12.65 17.3 YES
0.15*87.9*20.25(13.5*13.5) 20.25 87.9 13.5*13.5 14.6 YES
6P 18650 Nickel strip 0.15*102*19(12*12) 19 102 12*12 11.9 YES
0.15*108.25*20.15(12.65*12.65) 20.15 108.25 12.65*12.65 11 YES
0.15*108.1*20.25(13.5*13.5) 20.25 108.1 13.5*13.5 12 YES
7P 18650 Nickel strip 0.15*121*19(12*12) 19 121 12*12 10 YES
0.15*128.4*20.15(12.65*12.65) 20.15 128.4 12.65*12.65 9.4 YES
0.15*128.3*20.25(13.5*13.5) 20.25 128.3 13.5*13.5 10.2 YES
8P 18650 Nickel strip 0.15*140*19(19*19) 19 140 19*19 8.7 YES


Other sizes are available upon the customers’ requirements.
And for the condition of the pure nickel strip can be Soft,1/4Hard,1/2Hard,Hard.

Battery Spot Welding Annealing Nickel Plated Strip 0.15mm*20mm 0Battery Spot Welding Annealing Nickel Plated Strip 0.15mm*20mm 1

FAQ

1. What's the minimum quantity customer can order?

If we have your size in stock, we can provide any quantity you want.

If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.



2. How can you pay for small sample amount?

We have account, wire transfer for sample amount also ok.



3. Customer do not have express account. How will us arrange the delivery for sample order?

Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.



4. What's our payment terms?

We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.



5. Do you provide free samples?

If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.



6. What's our working time?

We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
