| Standard: | ASTM B162 | Surface: | Bright |
|---|---|---|---|
| Thickness: | >0.002mm | Power Or Not: | Not |
| Purity: | >99.9% | Craft: | Hot Forging& Cold Rolling |
| Shape: | Foil&Strip | Application: | Battery |
| High Light: | N6 Heating Nickel Strip,ASTM B162 Heating Nickel Strip,0.5mm Bright Heating Nickel Strip |
||

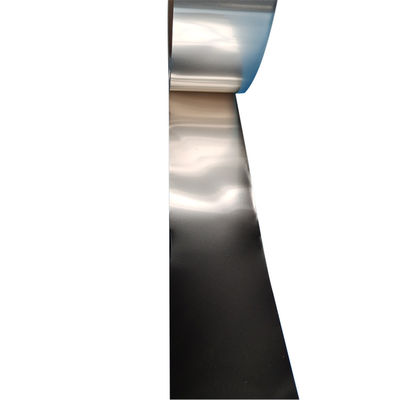

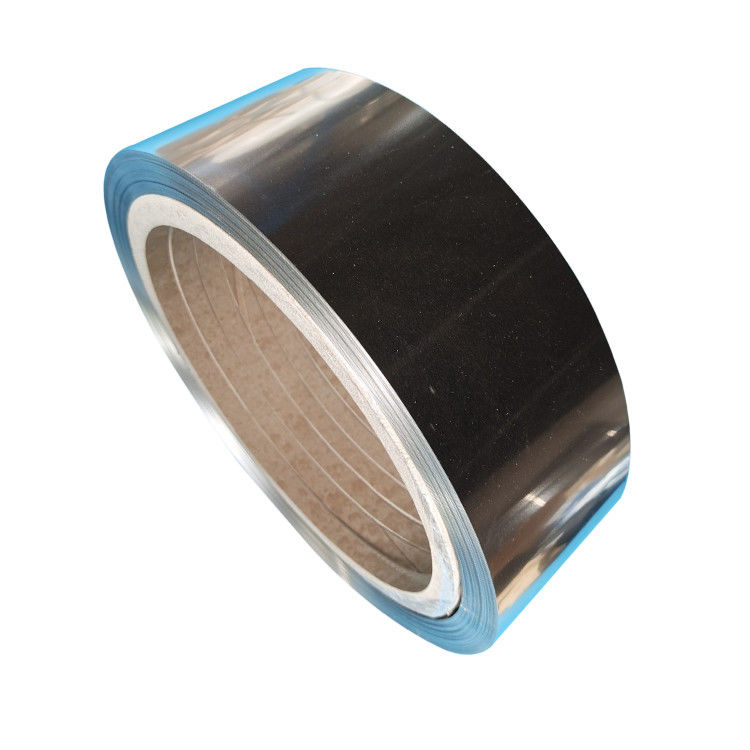

Pure nickel Ni200 Ni201 N4 N6 Heating strip 0.1x90mm
Grade:Ni200,Ni201,N4,N6
High ductility
Excellent corrosion resistance
good mechanical strength
Pure nickel wire grade: Ni200,Ni201, N4,N6
pure wire sizes are:
Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm
Alloy Description
Nickel 200/201 is most widely used grade, generally specified for transistor caps, anodes for electronic tubes, leads of electronic components / Lead-in-Wires for lamps and for Wire-Mesh. Also used in strip form for various applications including Ni-Cd batteries.
Condition of Supply
Nickel 200, 201 are supplied in the following conditions:
Note:
NUS N02201 (ASTM B 162) same as N4 (GB/T 2054).
NUS N02200 (ASTM B 162) same as N6 (GB/T 2054).
Forms
Coil – Strip, Foil, Ribbon
Wire – Profile, Round, Flat, Square
rod, bar, forgings, plate, sheet
Chemical composition
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
| N4 | 99.9 | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 | 0.04 |
| N6 | 99.6 | 0.1 | 0.1 | 0.05 | 0.1 | 0.1 | 0.005 | 0.002 | 0.1 |
| Ni201 | 99 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
| Ni200 | 99 | 0.2 | 0.3 | 0.3 | 0.15 | / | 0.01 | / | 0.4 |
