Product Details:
Payment & Shipping Terms:
|
| Material: | Pure Nickel Strip (Purity>99.9%) | Grade: | Battery Grade |
|---|---|---|---|
| Thickness: | 0.02-8mm | Width: | 2-250mm |
| State: | Hard/1/2Hard/1/4Hard/Soft | Application: | Battery Application |
| Warranty: | 3 Years | ||
| High Light: | Battery Grade Nickel Strip Tape,Connector Heating Pure Nickel Strip,Nickel Connector Heating Strip |
||

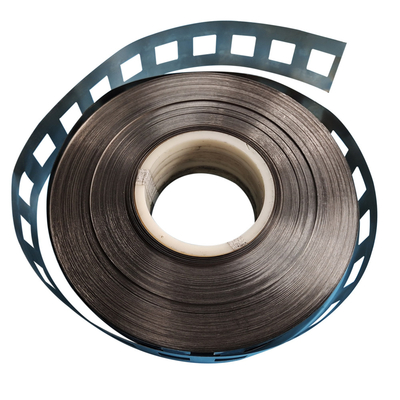

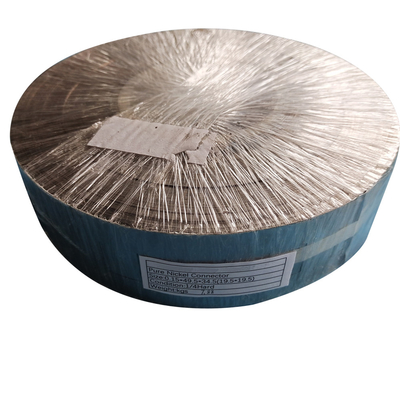

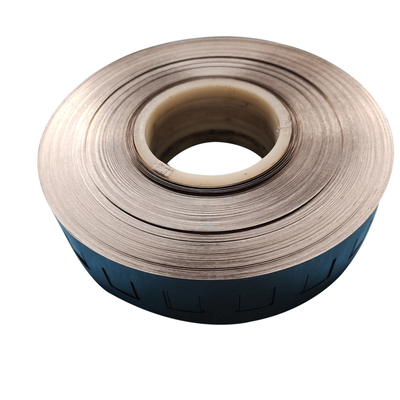

Pure nickel connector Heating strip 0.15x49.5x34.5mm
Our pure nickel strip for making battery pack is N6,the equivalent in other countries is UNS N N02200, JIS NW2200, DIN/EN 2.4060.
1). Chemical composition(%)
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
| N4 | 99.9 | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 | 0.04 |
| N6 | 99.6 | 0.1 | 0.1 | 0.05 | 0.1 | 0.1 | 0.005 | 0.002 | 0.1 |
| Ni201 | 99 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
| Ni200 | 99 | 0.2 | 0.3 | 0.3 | 0.15 | / | 0.01 | / | 0.4 |
2). Physical properties
|
Grade |
Density (g/cm3) |
Melting Range (℃) |
Curie point (℃) |
Volume resistivity (μΩ.cm) | Thermal conductivity (W/m. ℃) |
| Nickel 200 | 8.89 | 1435-1446 | 360 | 8.5(20℃) | 79.3(20℃) |
3). Mechnical properties
Strip State Reference
| Hard(>190HV) | 1/2Hard(140-170HV) | 1/4Hard(110-150HV) | Soft(70-110HV) |
4).Usage
It is used in electric apparatus, lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.

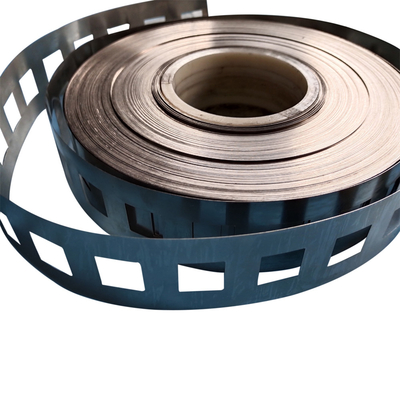

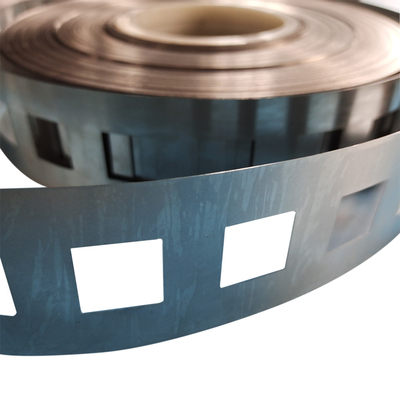

Formed Nickel strip
Formed nickel strip are mainly used in solar energy street lamps, energy storage battery packs, communications base station backup power and small power battery packs and other fields.
Metal stampings and Nickel sheet
Power tools, garden tools battery pack precision metal stamping parts, battery connector, copper sheet, and metal terminal and various battery special connector.
4.Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
5.Packing detail
1) Coil (plastic spool) + compressed ply-wooden case + pallet
2) Coil (plastic spool) + carton + pallet
