Pure Nickel Flat Wire Vacuum Melting Processing 0.1 X 1.2 Mm

I'm Online Chat Now
Certification
China Ohmalloy Material Co.,Ltd certification
China Ohmalloy Material Co.,Ltd certification
I search for Nichrome plate long time, and successfully bought it from Ohmalloy material. OHMALLOY provide real good service in alloy service and can always help me in finding the correct resistance alloy.

—— Mike Harness

OHMALLOY can provie me only 1kg Kovar alloy wire 1.0mm with short time, that is really amazing. Thanks

—— Janey

Really professional in thermocouple wire and cable, what i want just can get from OHMALLOY

—— Chris

Enamelled Constantan 0.08mm, i never expect to get only 2kg of it. But OHMALLOY supply it to me with good quality. God Jesus! Such a reliable supplier from china

—— Aaron

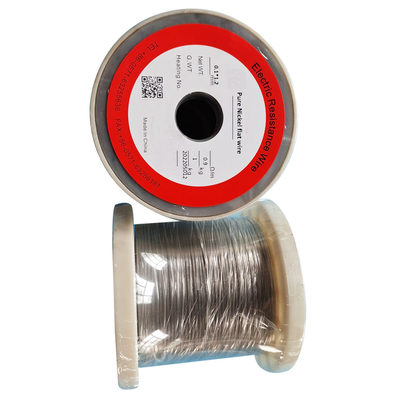

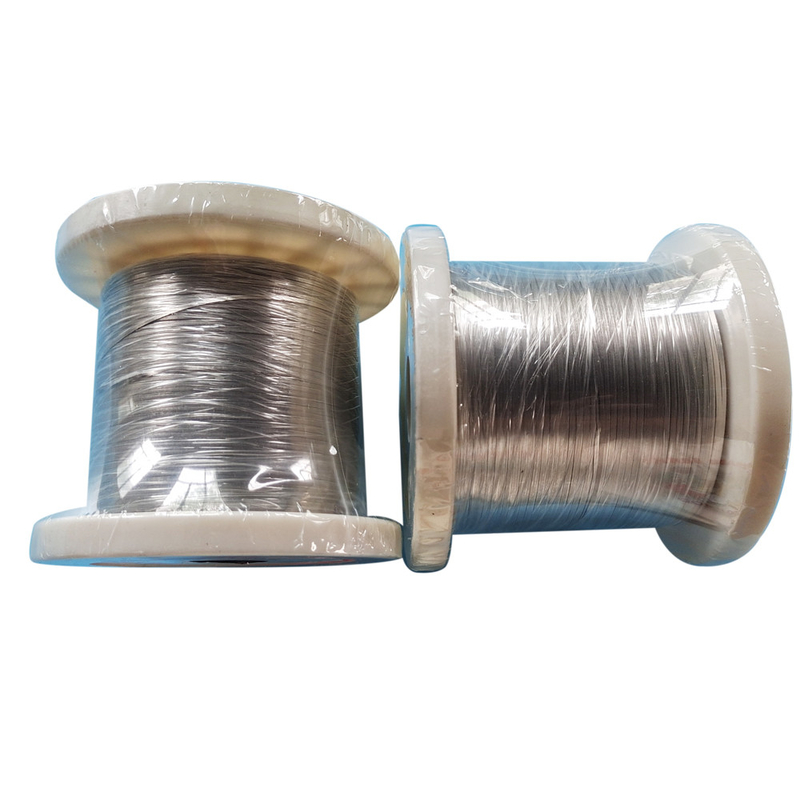

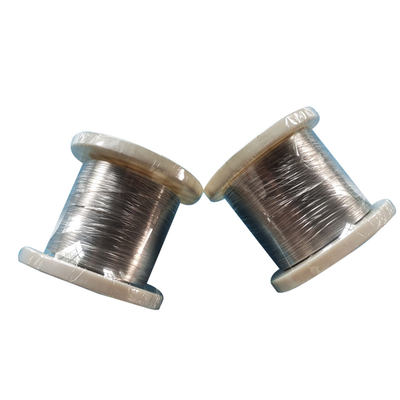

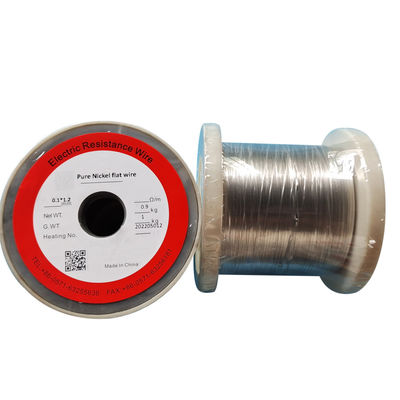

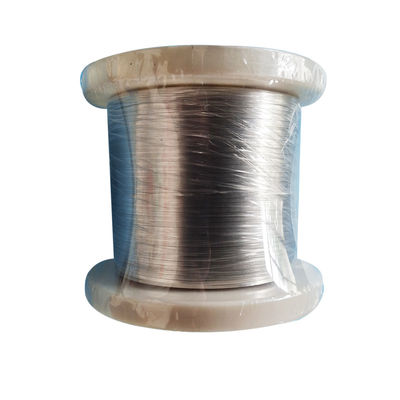

Pure Nickel Flat Wire Vacuum Melting Processing 0.1 X 1.2 Mm

Pure Nickel Flat Wire Vacuum Melting Processing 0.1 X 1.2 Mm
Pure Nickel Flat Wire Vacuum Melting Processing 0.1 X 1.2 Mm
video play

Large Image :  Pure Nickel Flat Wire Vacuum Melting Processing 0.1 X 1.2 Mm Get Best Price

Product Details:
Place of Origin: Zhejiang
Brand Name: OHMALLOY/OEM
Certification: ISO9001:2015
Model Number: SP-pure nickel
Payment & Shipping Terms:
Minimum Order Quantity: 5KG
Packaging Details: wooden case
Delivery Time: 3-18 working days after payment confirmed
Payment Terms: L/C, T/T, ,Paypal
Supply Ability: 30000 kg per Month
Detailed Product Description
Conductor: Pure Nickel Strip(N6) Condition: Bright,soft
Hardness: 70-110HV Density: 8.9g/cm3
Package: Wooden Case Weight: About 30kgs/coil
Standard: GB/T 2072-2007
High Light:

Pure Nickel Flat Wire

,

Nickel Flat Wire 0.1x1.2 Mm

,

Flat Pure Nickel Strip

pure nickel flat wire 0.1x1.2 mm


OHMALLOY201 are made by advanced vacuum melting process.and by forging,rolling,annealing and drawing. It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp

1). Chemical composition(%)


Grade C Si Mn P S Ni+Co Cu Fe
Nickel 201 <0.01 <0.35 <0.35   <0.01 >99.9 <0.25 <0.40


2. Physical properties



Grade
Density (g/cm3) Melting Range
(ºC)
Curie point
(ºC)
Volume resistivity (μΩ.cm) Thermal conductivity (W/m. ºC)
Nickel 201 8.89 1435-1446 360 8.5(20ºC) 79.3(20ºC)


3). Mechnical properties



FORM

Yield Strength (Mpa)

Tensile Strength (Mpa)

Elongation (%)

Hardness (RB)

Bar
Hot-finished 105-310 60-85 55-35 45-80
Cold-drawn,annealed 105-210 55-75 55-40 75-98

Strip
Hard 480-795 620-895 15-2 >90
Annealed 105-210 380-580 55-40 <70

Wire
Annealed 105-345 380-580 50-30
No.1 Temper 275-520 485-655 40-20
Spring Temper 725-930 860-1000 15-2


2.Specification
Strip:Thickness: 0.02mm to 3.0mm ,Width: 1.0mm to 250mm
Wire:Diameter: 0.025mm to 3.0mm
Sheet/Coil:Thickness:0.002-0.125mm
Width in coil:6.00mm max
In plate and straight lengths:12.00mm max

3.Usage
It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.

4.Features
Stable performance;Anti-oxidation;Corrosion resistance;High temperature stability;Excellent coil-forming ability;Uniform and beautiful surface condition without spots.

5.Packing detail
1) Coil (plastic spool) + compressed ply-wooden case + pallet
2) Coil (plastic spool) + carton + pallet

6.Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery;


Pure Nickel Flat Wire Vacuum Melting Processing 0.1 X 1.2 Mm 0Pure Nickel Flat Wire Vacuum Melting Processing 0.1 X 1.2 Mm 1


FAQ

1. What's the minimum quantity customer can order?

If we have your size in stock, we can provide any quantity you want.

If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.



2. How can you pay for small sample amount?

We have account, wire transfer for sample amount also ok.



3. Customer do not have express account. How will us arrange the delivery for sample order?

Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.



4. What's our payment terms?

We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.



5. Do you provide free samples?

If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.



6. What's our working time?

We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
